Airflow Mode Main Link Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the A/C amplifier.
  3. Remove the airflow mode link set.
  4. Remove the airflow mode main link as shown in the figure.

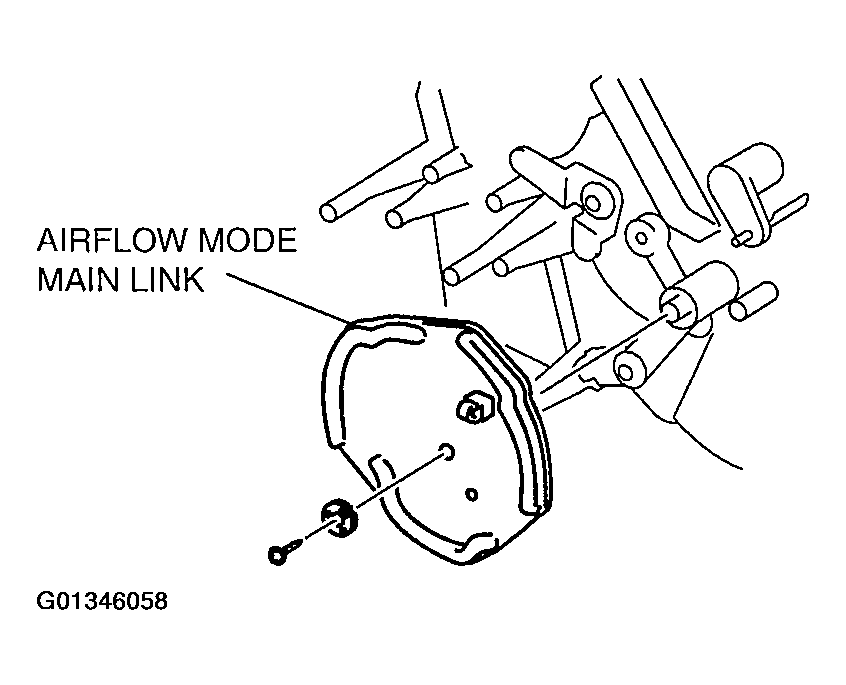

    Fig 1: Removing/Installing Airflow Mode Main Link
    G01346058Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
