Blower Motor Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove in the order indicated in Fig 1.

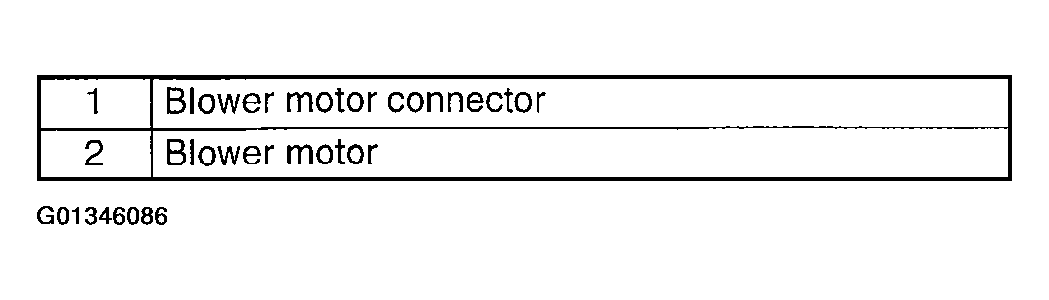

    Fig 1: Removal/Installation Order For Blower Motor
    G01346086Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.

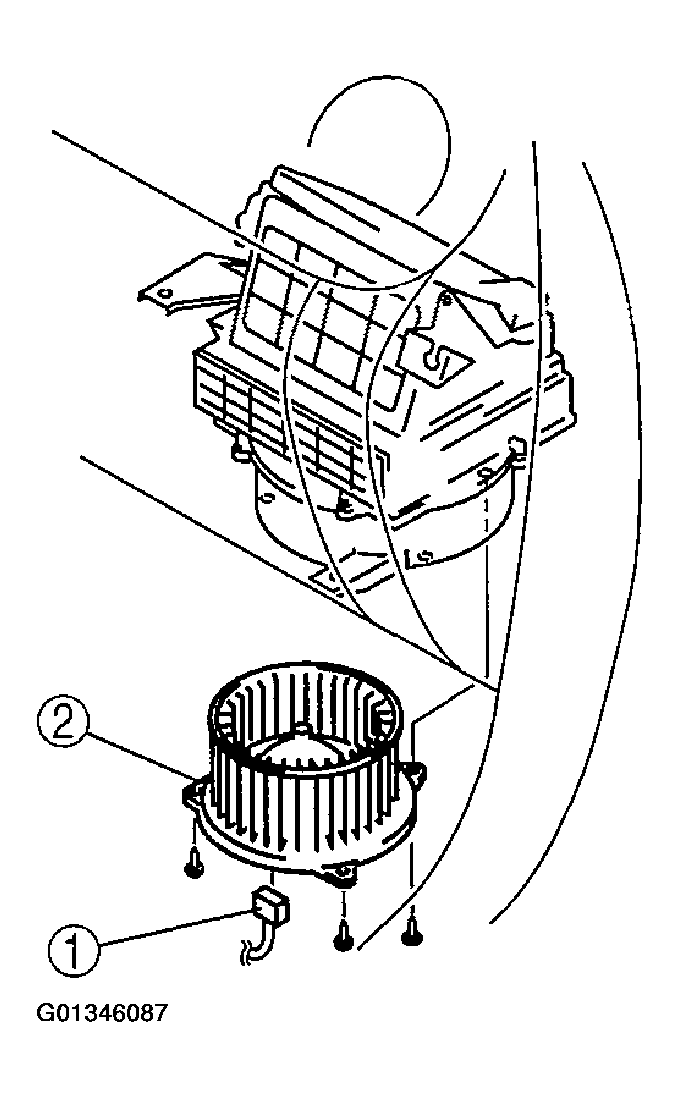

    Fig 2: Removing/Installing Blower Motor
    G01346087Courtesy of MAZDA MOTORS CORP.
