Fan Switch Inspection

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Inspect for continuity between the fan switch terminals using a tester.
- If there is any malfunction, replace the fan switch.

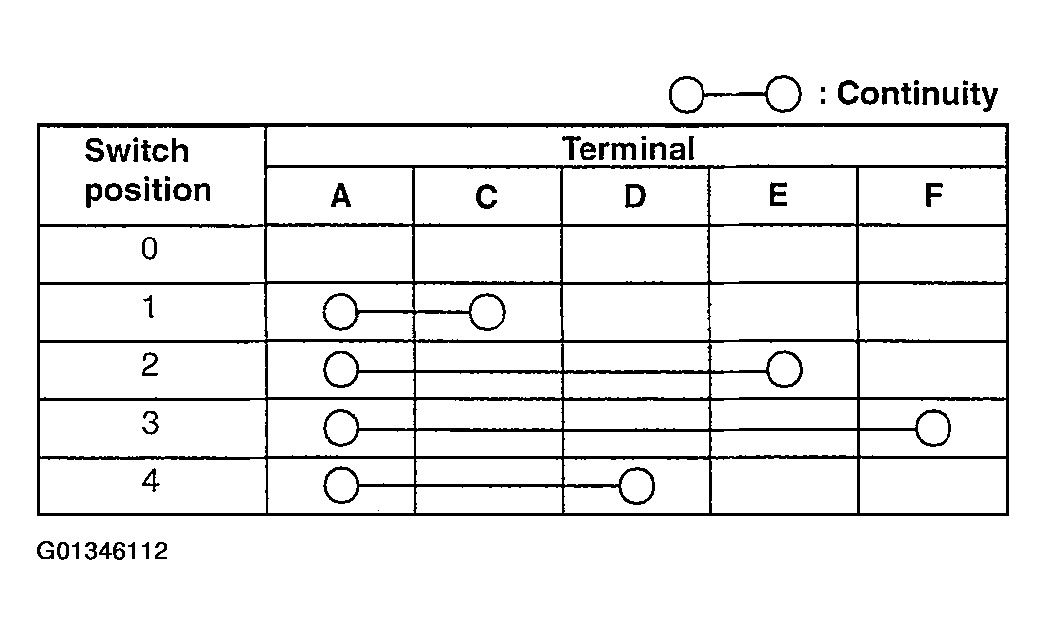

Fig 1: Switch Position & Terminal Continuity
Courtesy of MAZDA MOTORS CORP.

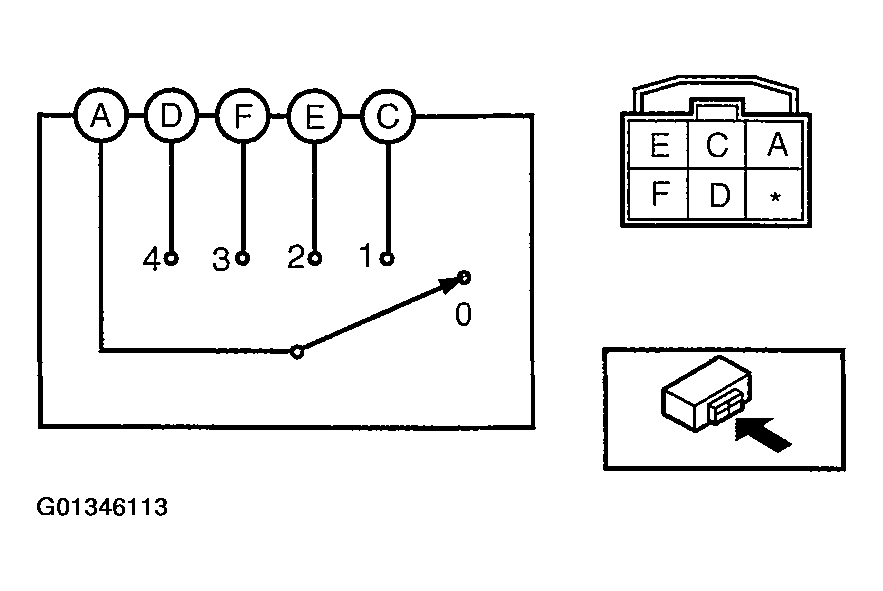

Fig 2: Inspecting Continuity Between Fan Switch Terminals
Courtesy of MAZDA MOTORS CORP.
