Resistor Inspection

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Verify that the resistance between the resistor terminals is as indicated in Fig 1.
- If there is any malfunction, replace the resistor.

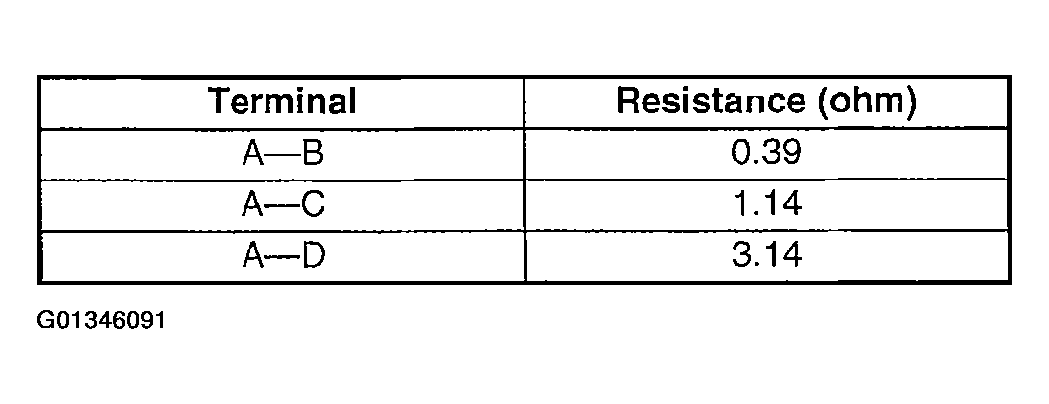

Fig 1: Terminal & Resistance Table
Courtesy of MAZDA MOTORS CORP.

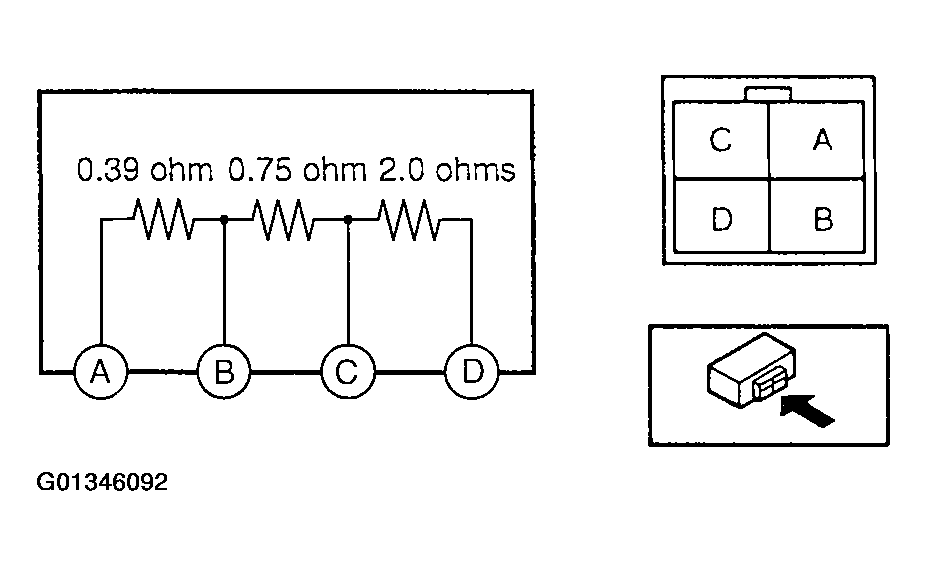

Fig 2: Inspecting Resistor
Courtesy of MAZDA MOTORS CORP.
