Home >> Mazda >> 2001 >> MPV DX >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Overhaul >> 3-4 Clutch Disassembly >> Notes

3-4 Clutch Disassembly: Notes

  1. Disassemble in the order indicated in the figure.

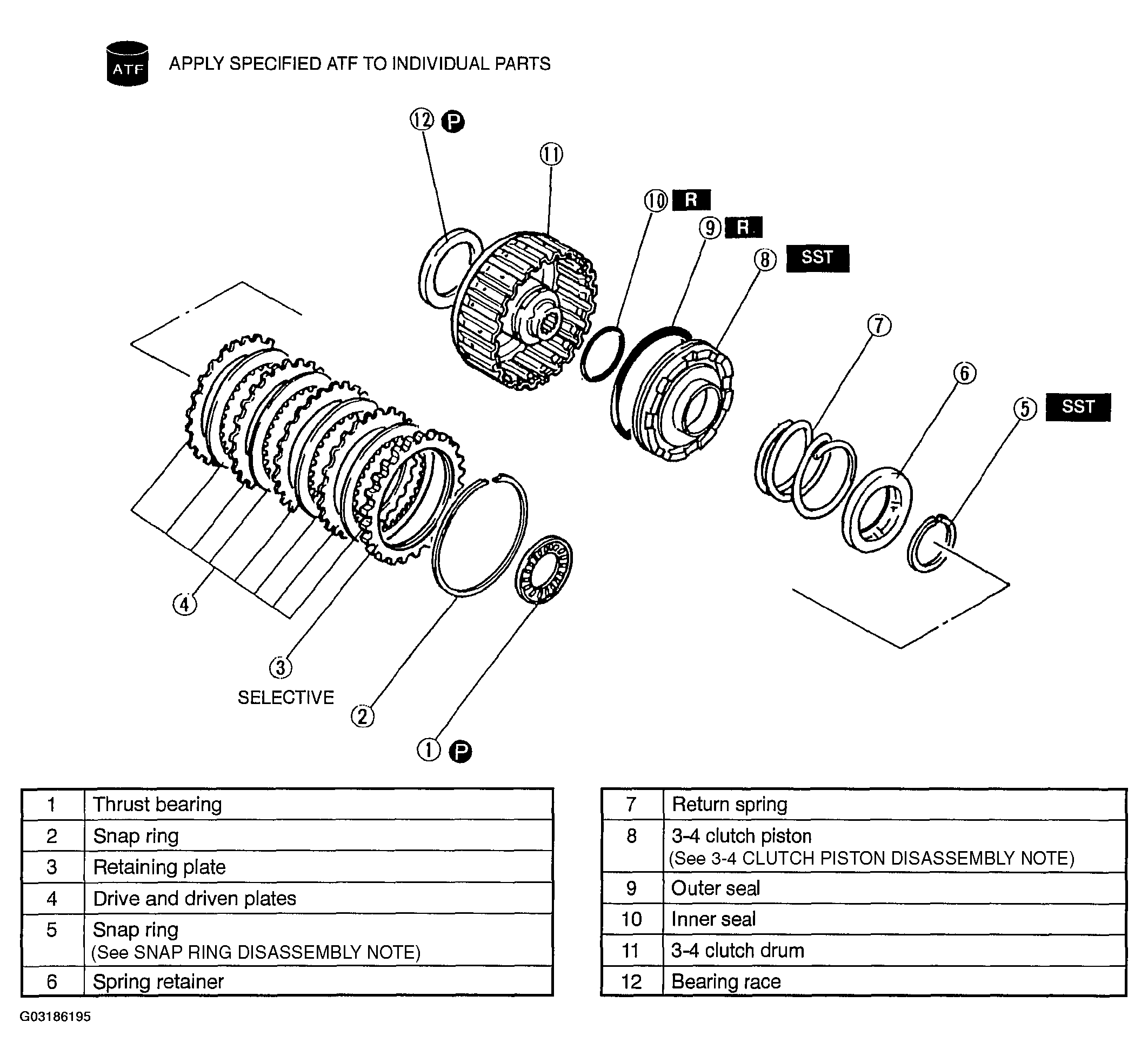

    Fig 1: Disassembling 3-4 Clutch
    G03186195
