Spring And Retainer Inspection

Measure the free length of the spring and inspect for deformation.
- If not within the specification, replace the spring and retainer.
Free Length
1. 31.54 mm {1.242 in}

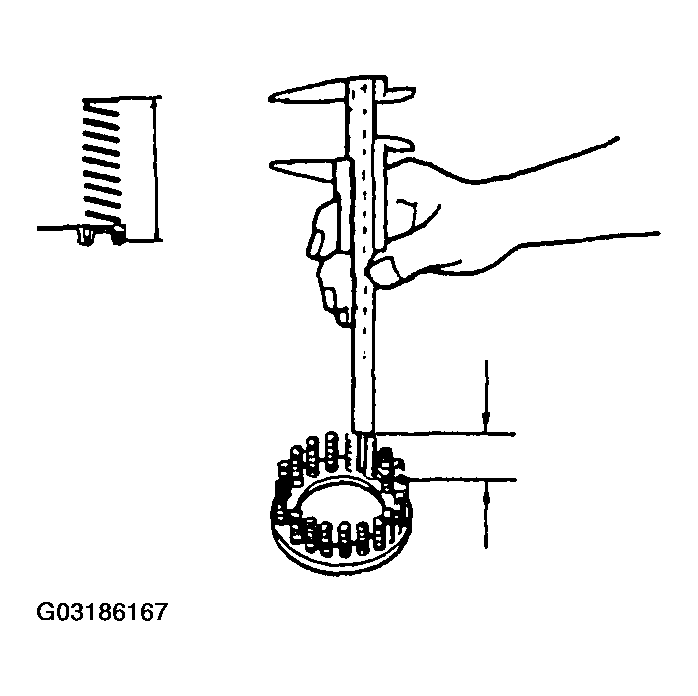

Fig 1: Measuring Spring Free Length
