Inner Rotor Disassembly Note

  1. Mark the outer and inner rotors without scratching or denting them, then remove them from the oil pump housing.

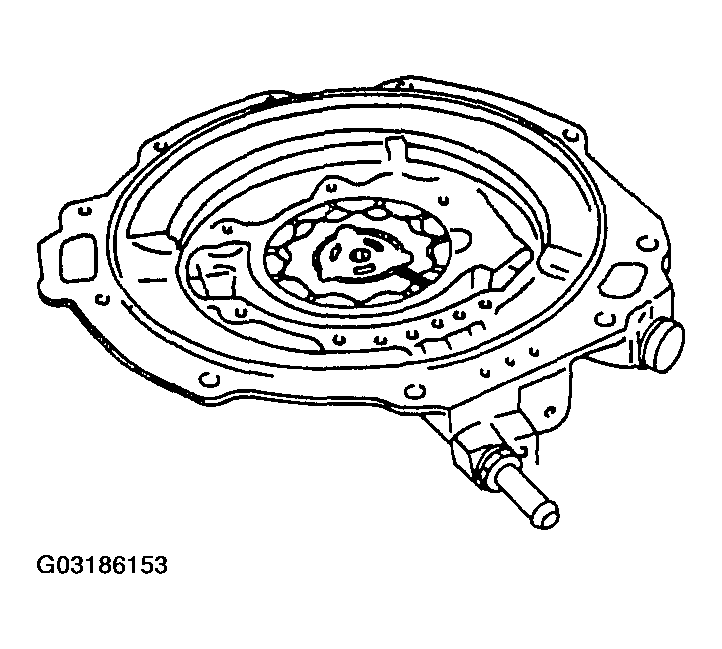

Fig 1: Marking Outer & Inner Rotors
G03186153
