Home >> Mazda >> 2001 >> MPV DX >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Overhaul >> Parking Mechanism Disassembly >> Notes

Parking Mechanism Disassembly: Notes

  1. Disassemble in the order indicated in the figure.

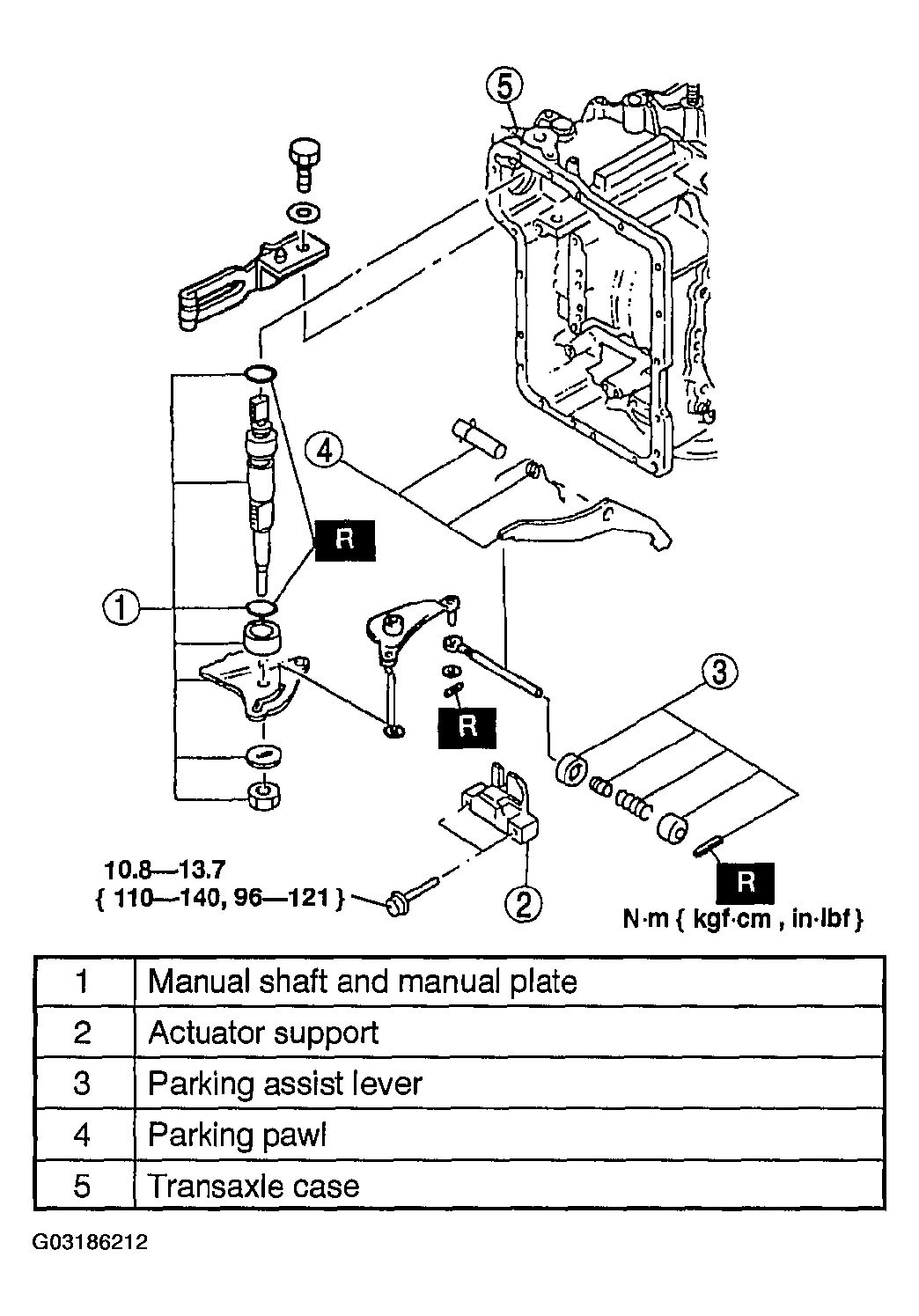

    Fig 1: Disassembling Parking Mechanism
    G03186212
