Control Valve Body Assembly: Notes

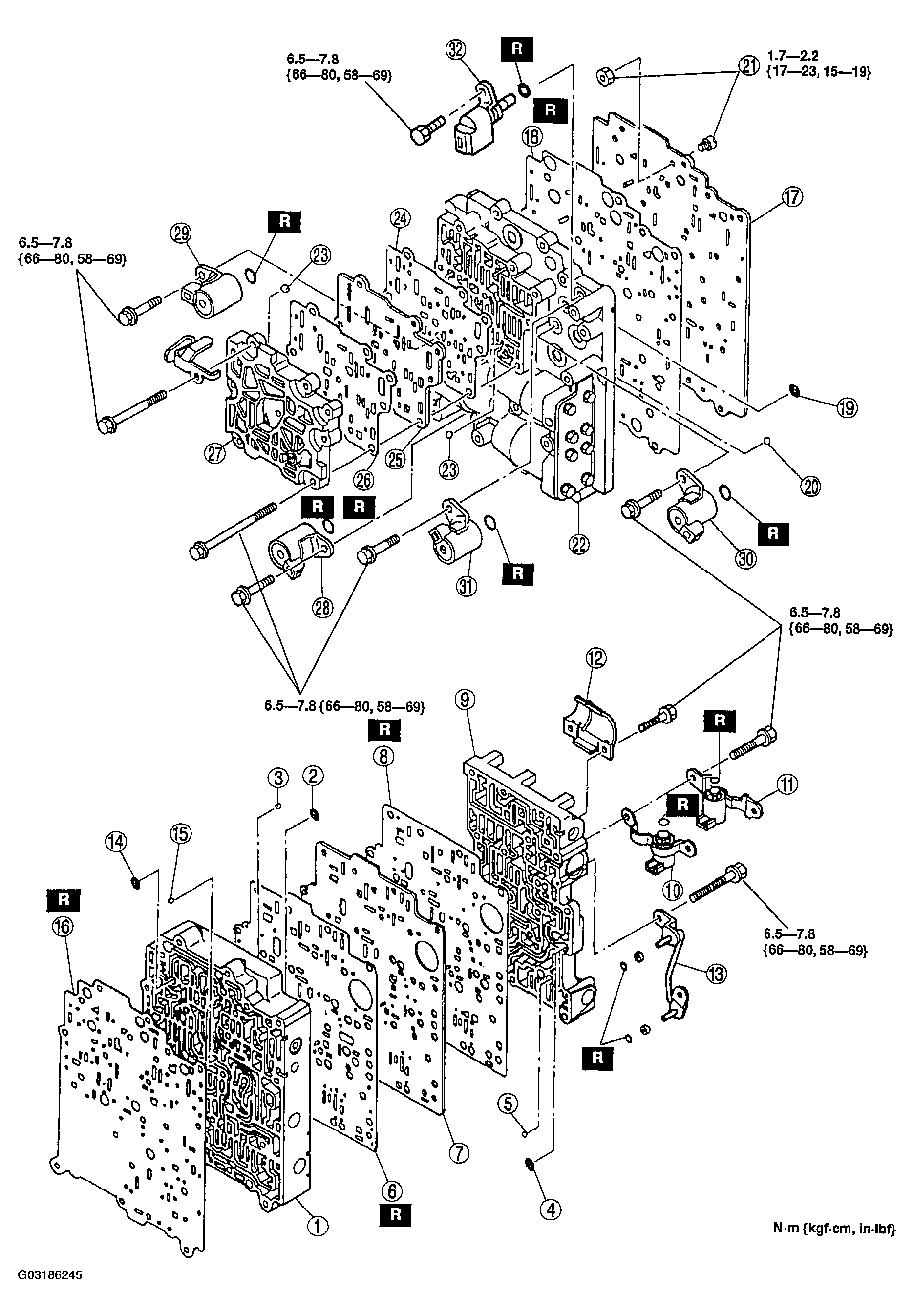

Fig 1: Exploded View Of Control Valve Body

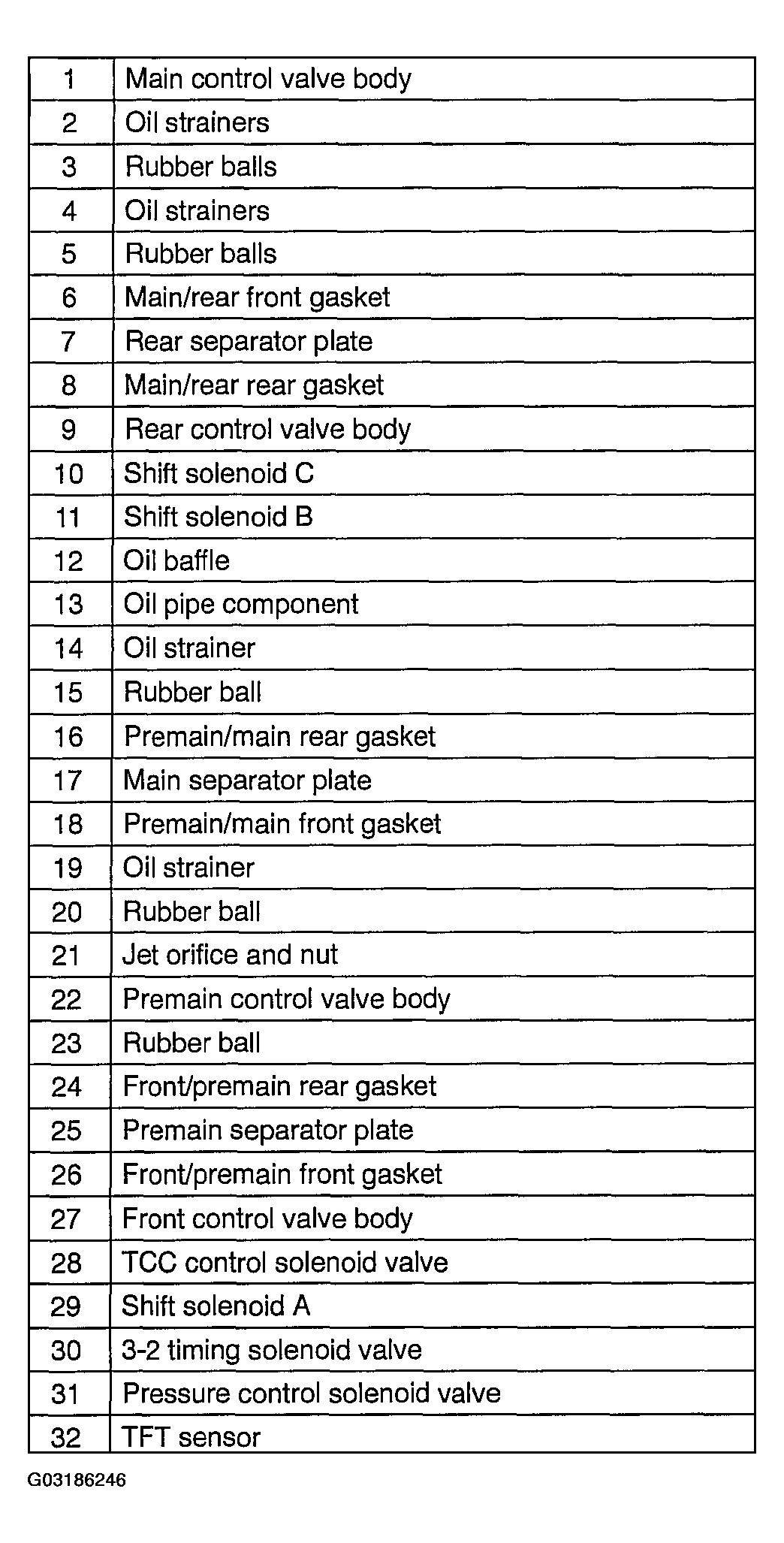

Fig 2: Identifying Control Valve Body Components
