Differential Disassembly: Notes

  1. Disassemble in the older indicated in the figure.

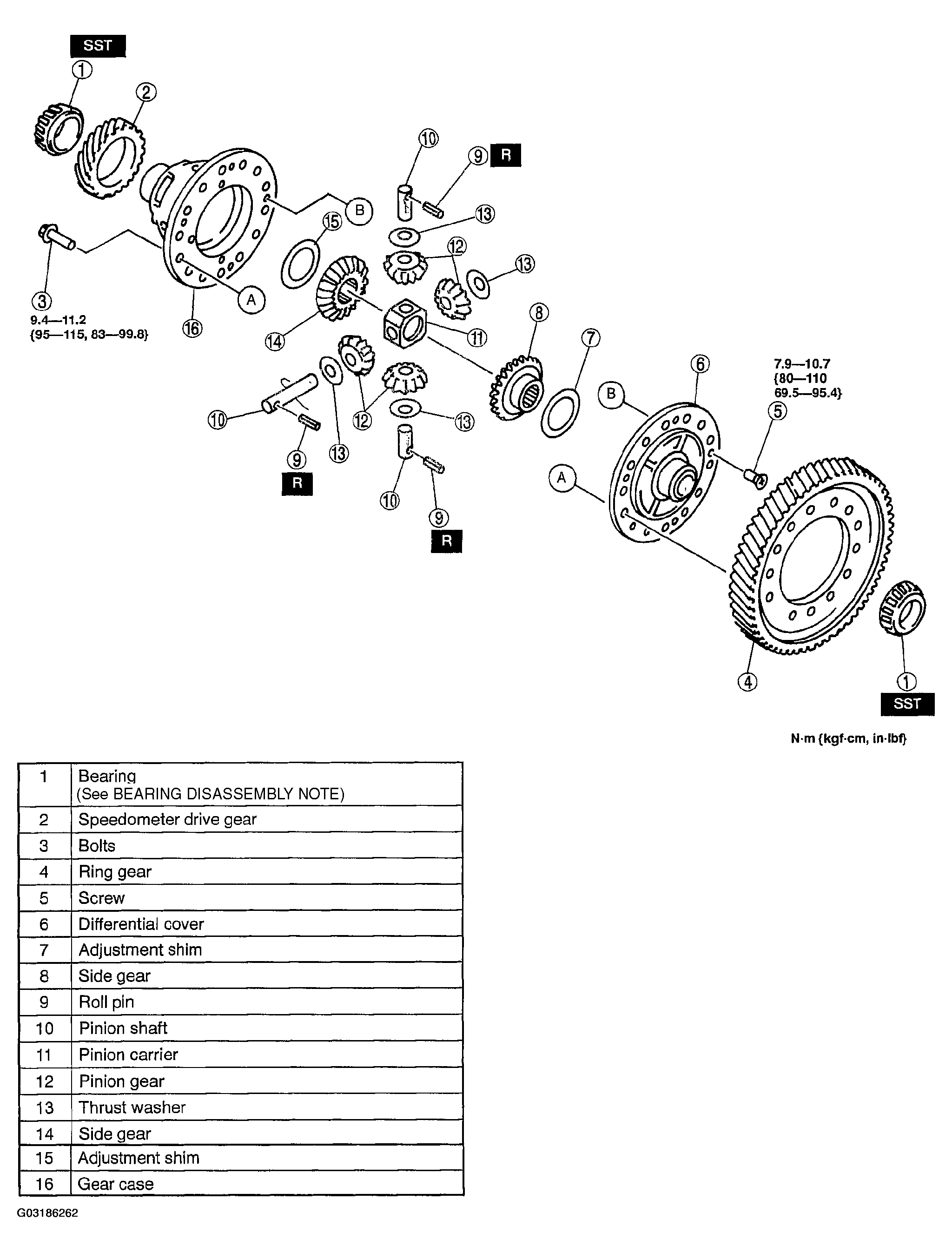

Fig 1: Disassembling Differential
G03186262
