Delayed Power Control Module Removal/Installation
WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.

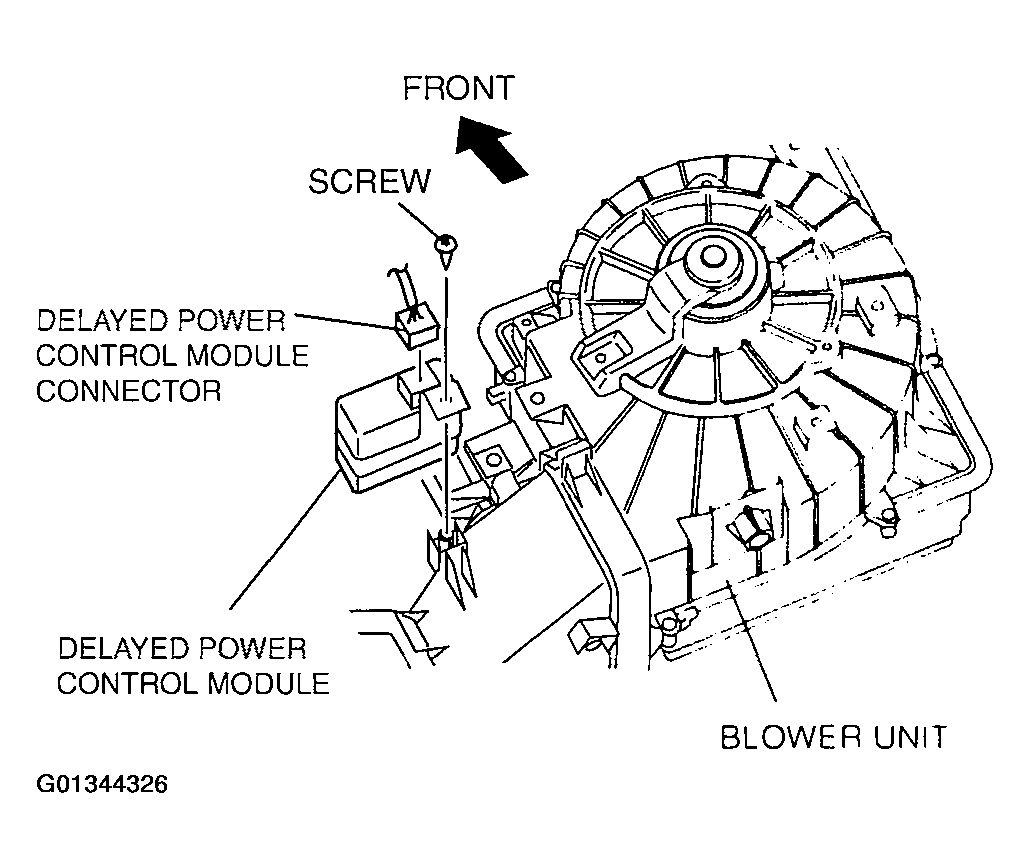

- Disconnect the delayed power control module connector.
Courtesy of MAZDA MOTORS CORP.
- Remove the bolt and then remove the delayed power control module.
- Install in the reverse order of removal.
