Assembly Note

Install the retaining ring.

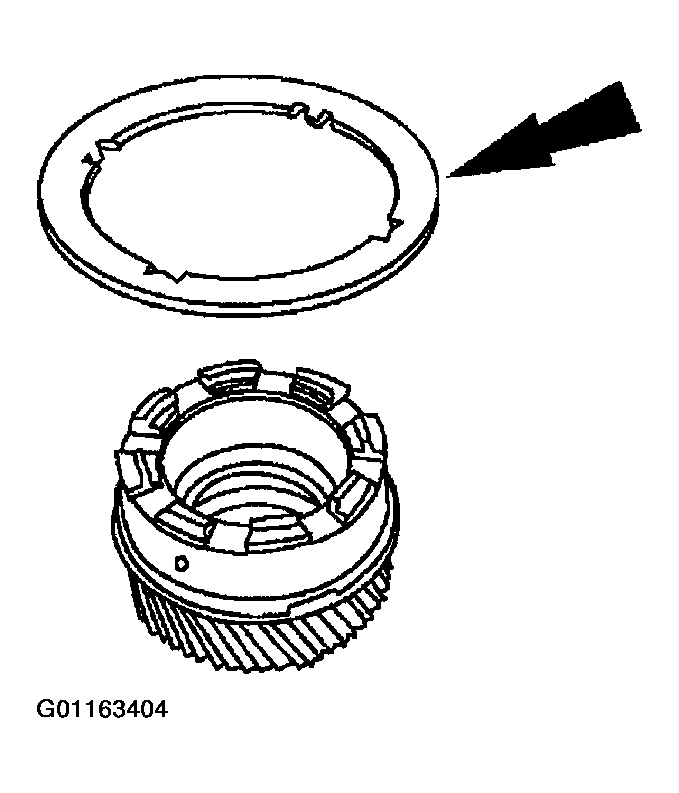

Fig 1: Installing Retaining Ring

NOTE: The tabs on the retainer face downward.
Install the forward one-way clutch retainer.

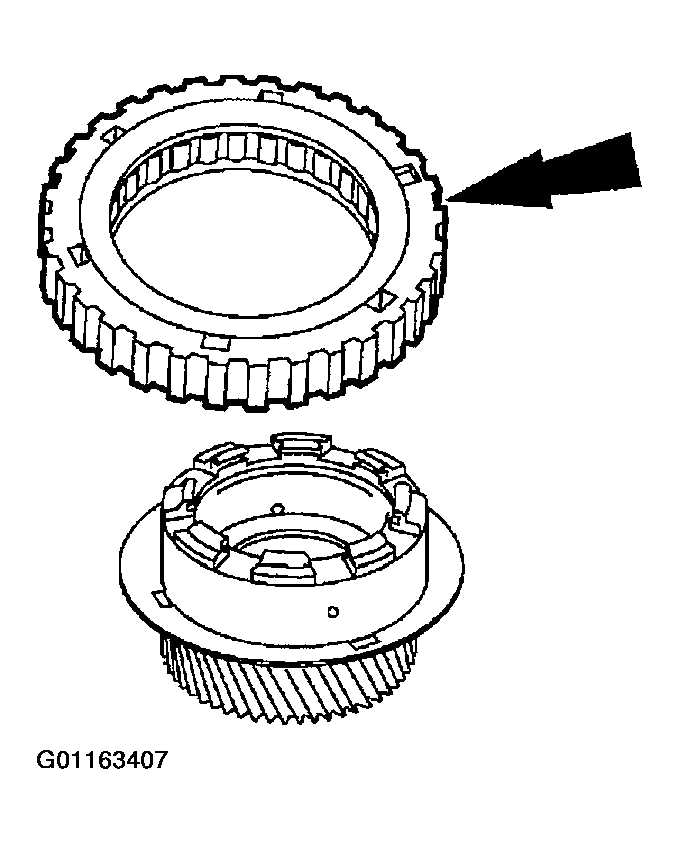

Fig 2: Installing Forward One-Way Clutch Retainer
Install the forward one-way clutch end caps onto the sprag assembly.

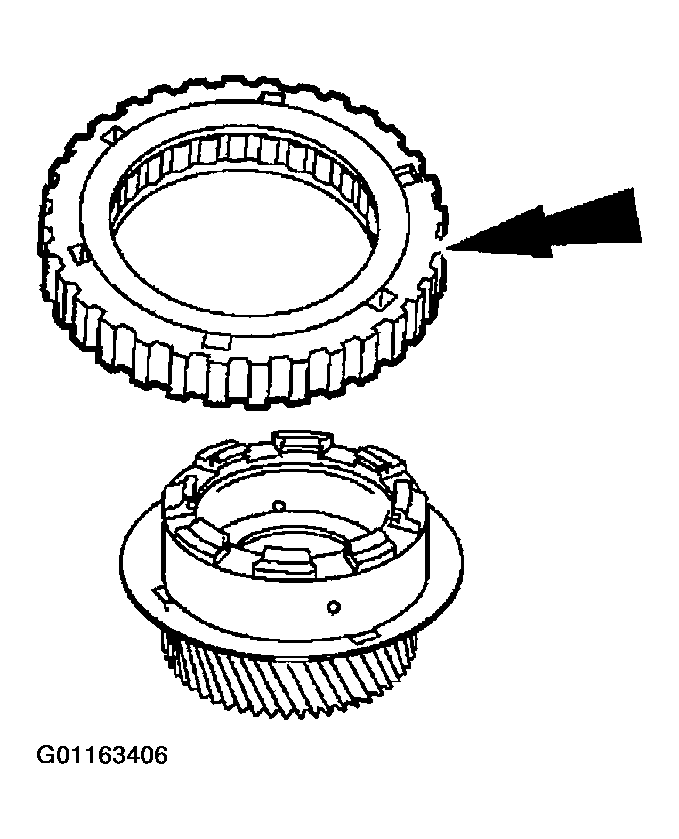

Fig 3: Installing Forward One-Way Clutch End Caps Onto The Sprag Assembly

CAUTION: The thicker end cap of the one-way clutch must face toward the lube groove (down).
Install the sprag assembly and end caps in the outer race.

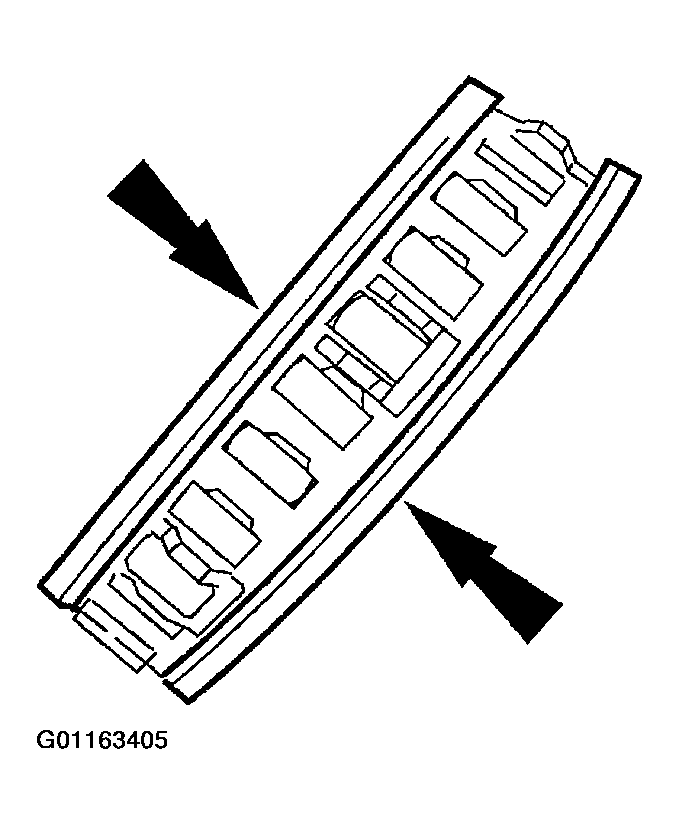

Fig 4: Installing Sprag Assembly And End Caps In The Outer Race

NOTE: Lube grooves face upward (away from the sun gear).
Rotate the outer race and sprag assembly (with end caps) over and install it on the forward one-way clutch inner race.

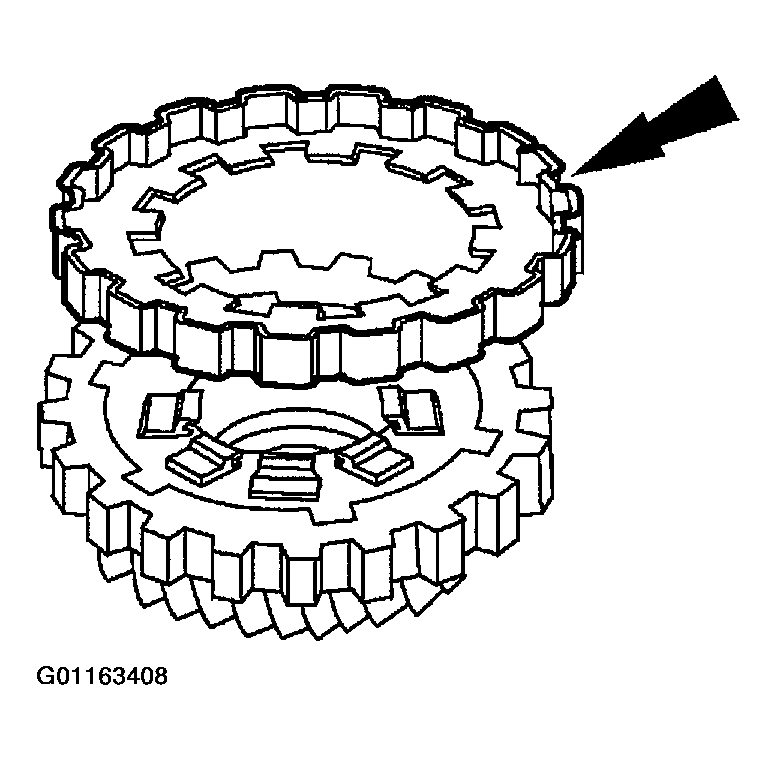

Fig 5: Install Outer Race On The Forward One-Way Clutch Inner Race
Install the coast clutch hub.

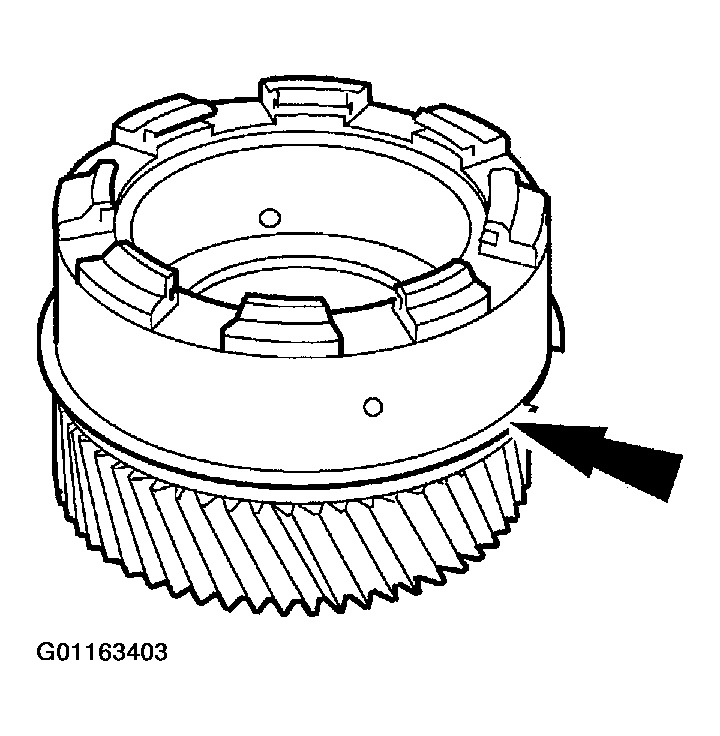

Fig 6: Installing Coast Clutch Hub

NOTE: The ends of the retaining ring should point toward the coast clutch hub.

NOTE: Make sure the retaining ring is fully seated upon installation.
Install the coast clutch hub retaining ring.

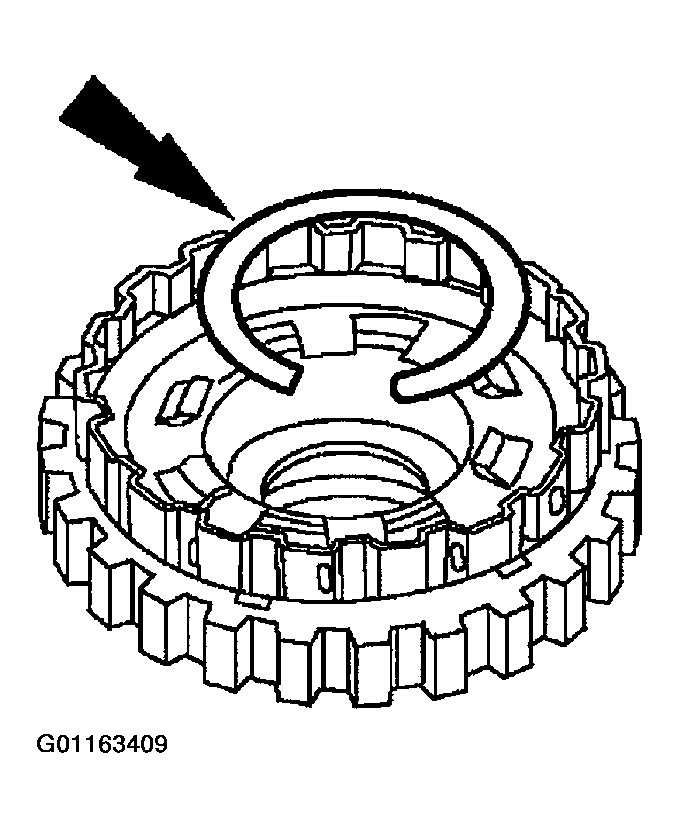

Fig 7: Installing Coast Clutch Hub Retaining Ring
Check the operation of the forward one-way clutch with the low/intermediate sun gear facing upward.
1. Hold the outer race firmly.
2. Rotate the low/intermediate sun gear clockwise.
3. The low/intermediate sun gear should rotate with a slight drag without attempting to rotate the outer race.
4. Rotate the low/intermediate sun gear counterclockwise. The low/intermediate sun gear should rotate the outer race.

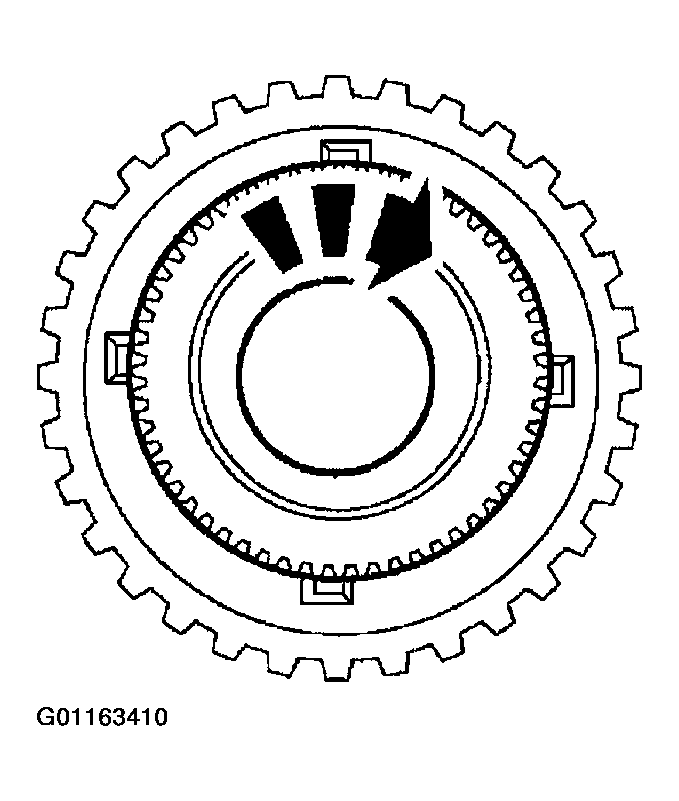

Fig 8: Checking Operation Of The Forward One-Way Clutch
