Disassembly Note

  1. Inspect the low one-way clutch components:
    1. Low one-way clutch inner race.
    2. Roller assembly.
    3. Low one-way clutch outer race.
    4. Outer race groove.
    5. Inner race groove.

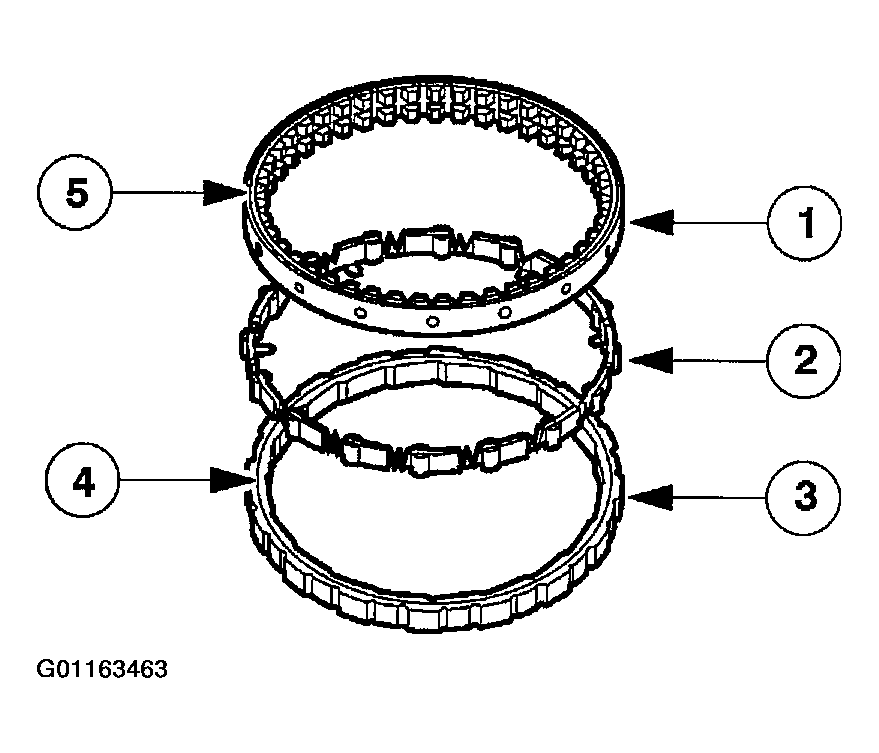

      6. Fig 1: Inspecting Low One-Way Clutch Components
      G01163463
  2. Position the low one-way clutch so the inner and outer race grooves are facing upward.

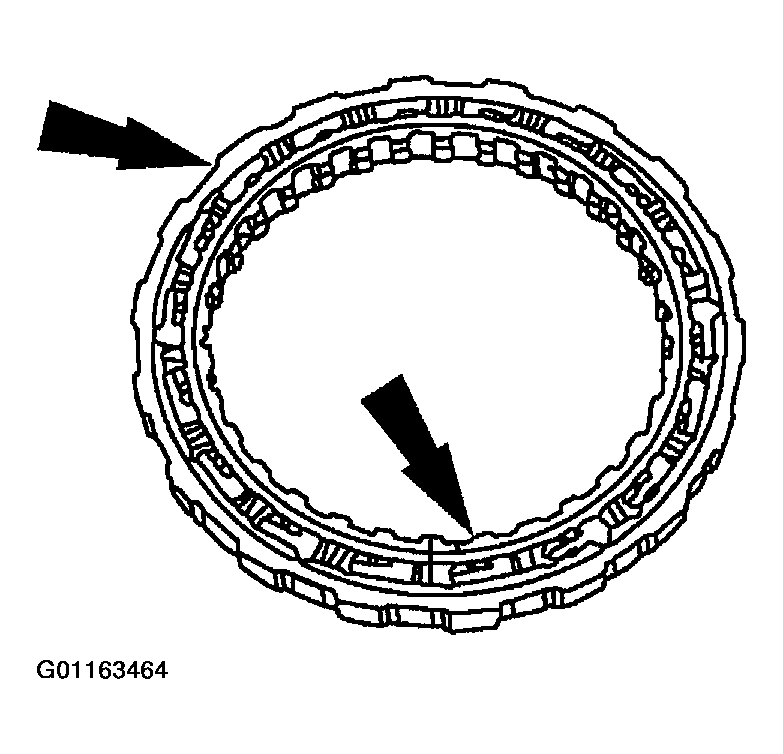

    Fig 2: Positioning Low One-Way Clutch
    G01163464
  3. Remove the inner race.

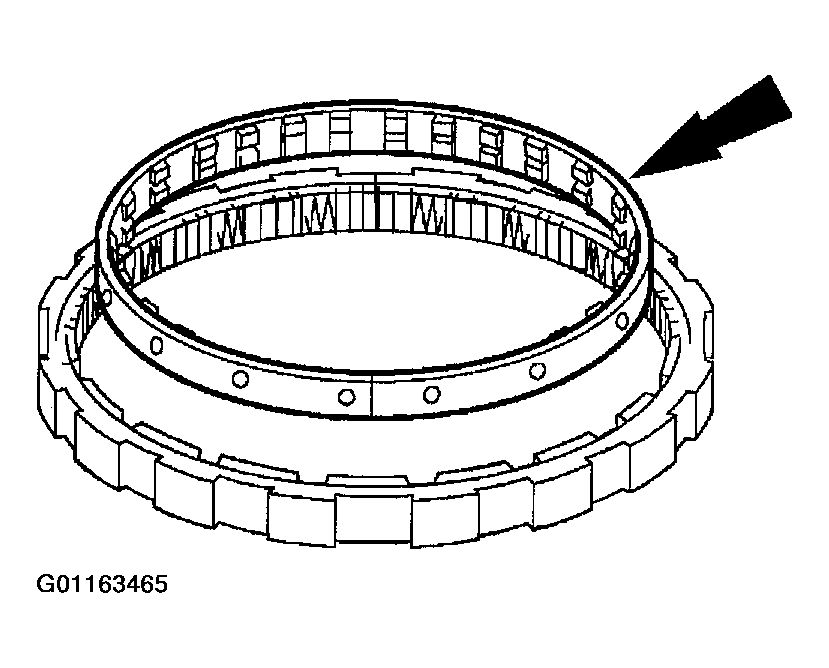

    Fig 3: Removing Inner Race
    G01163465
  4. Remove the roller assembly.
    WARNING: Air pressure must not exceed 138 kPa (20 psi). Wear safety glasses when using compressed air. Failure to follow these instructions can result in personal injury.

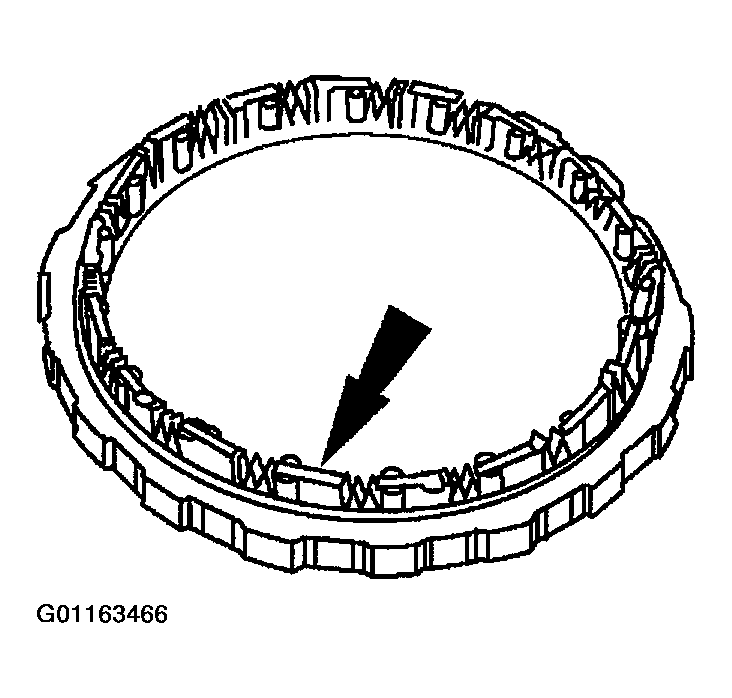

    Fig 4: Removing Roller Assembly
    G01163466
  5. Clean all parts thoroughly in clean solvent and blow dry with moisture-free regulated compressed air.
  6. Inspect the low one-way clutch parts for damage and wear.
    1. Outer race.
    2. Sprag assembly.
    3. Inner race.
    4. Lubrication holes.
