Disassembly Note

  1. Remove and discard the low/reverse clutch piston outer seal on the low/reverse clutch piston.

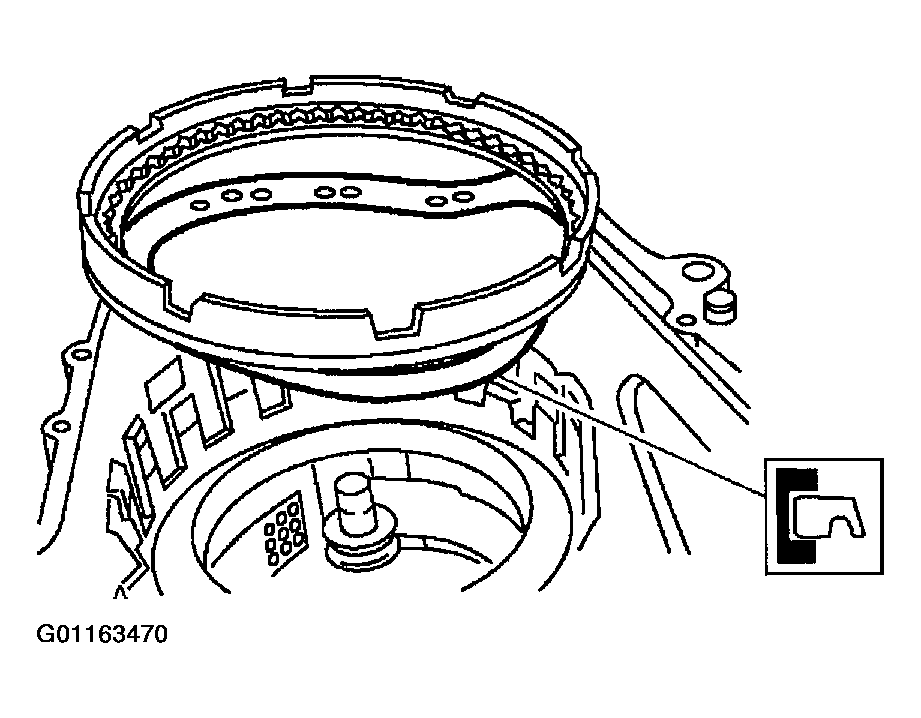

    Fig 1: Removing Low/Reverse Clutch Piston Outer Seal
    G01163470
  2. Remove and discard the low/reverse clutch piston inner seal on the low/reverse clutch piston.

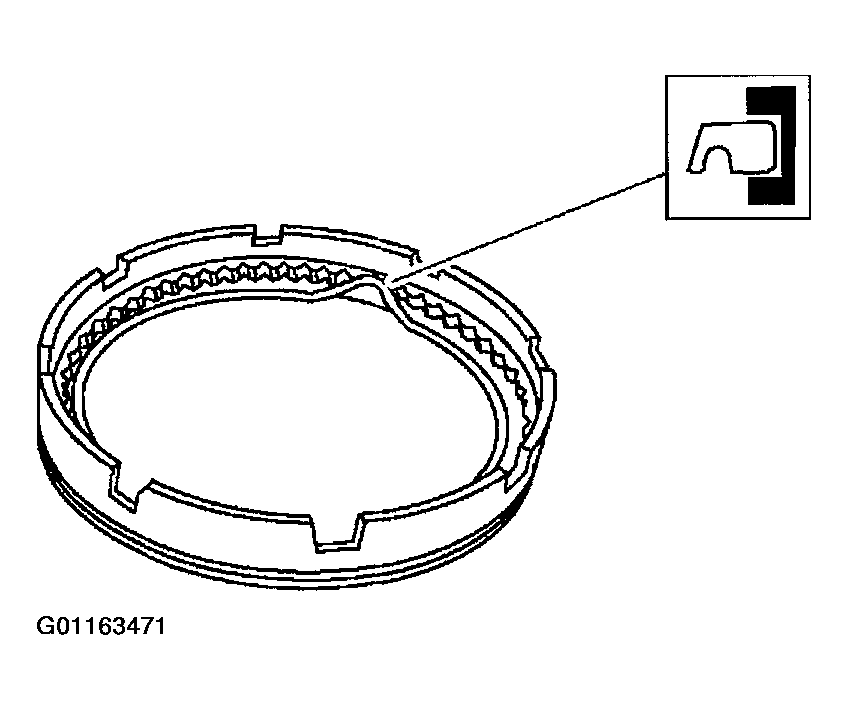

    Fig 2: Removing Low/Reverse Clutch Piston Inner Seal
    G01163471
