Main Control Valve Body: Removal

Disconnect the battery cables.
Remove the battery and tray.

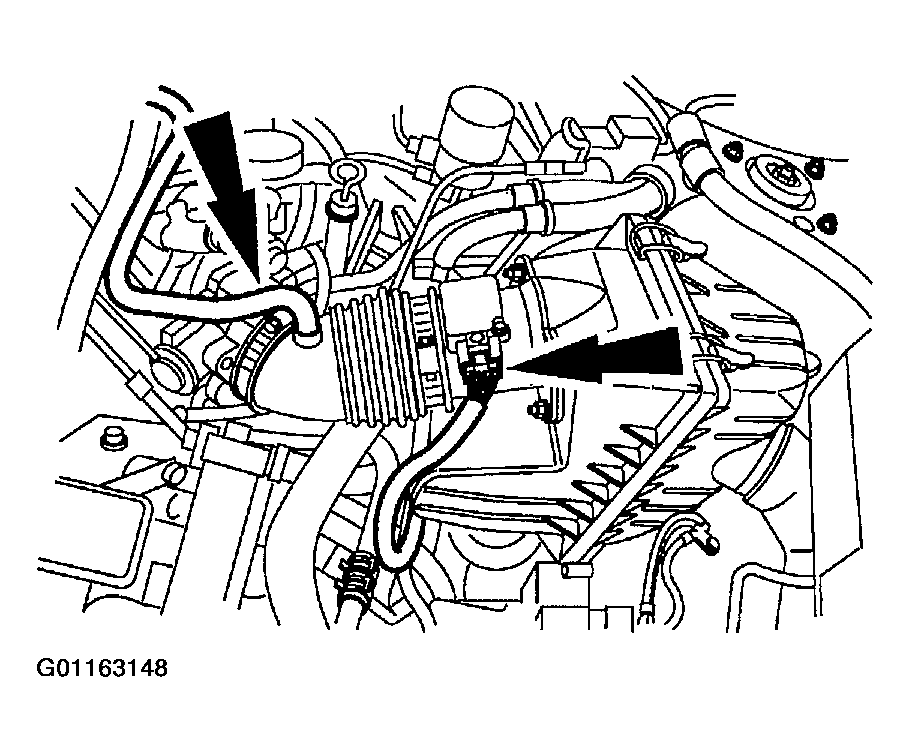

Disconnect the breather tube and mass air flow (MAF) / intake air temperature (IAT) sensor.

Fig 1: Disconnecting Breather Tube And Mass Air Flow (MAF)/ Intake Air Temperature (IAT) Sensor

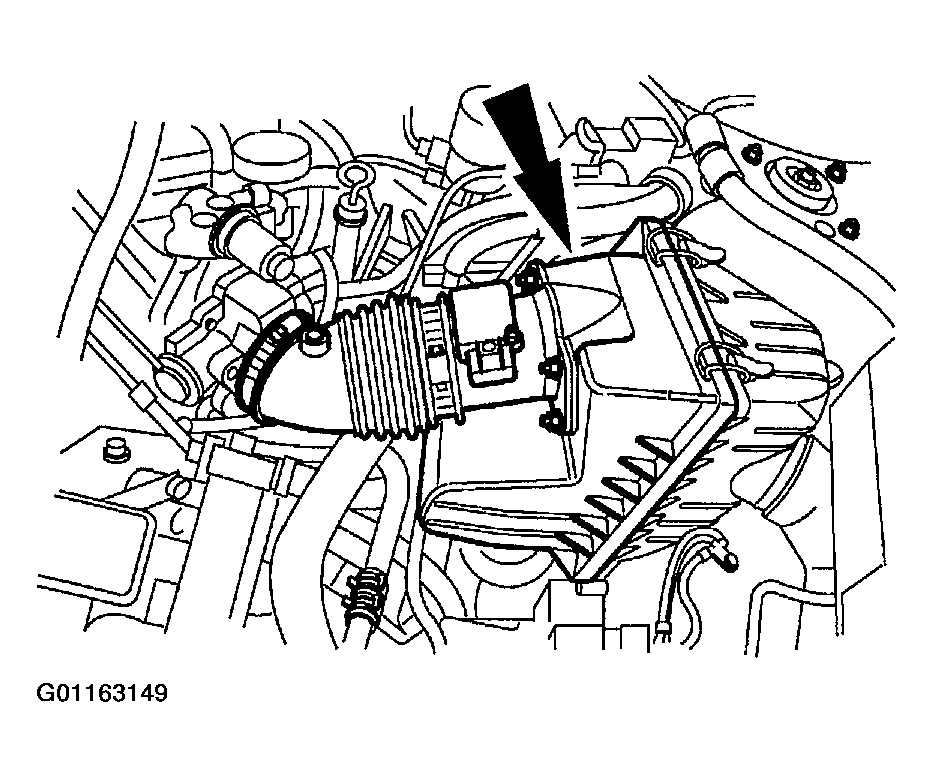

Remove the intake tube and air cleaner cover.

Fig 2: Removing Intake Tube And Air Cleaner Cover

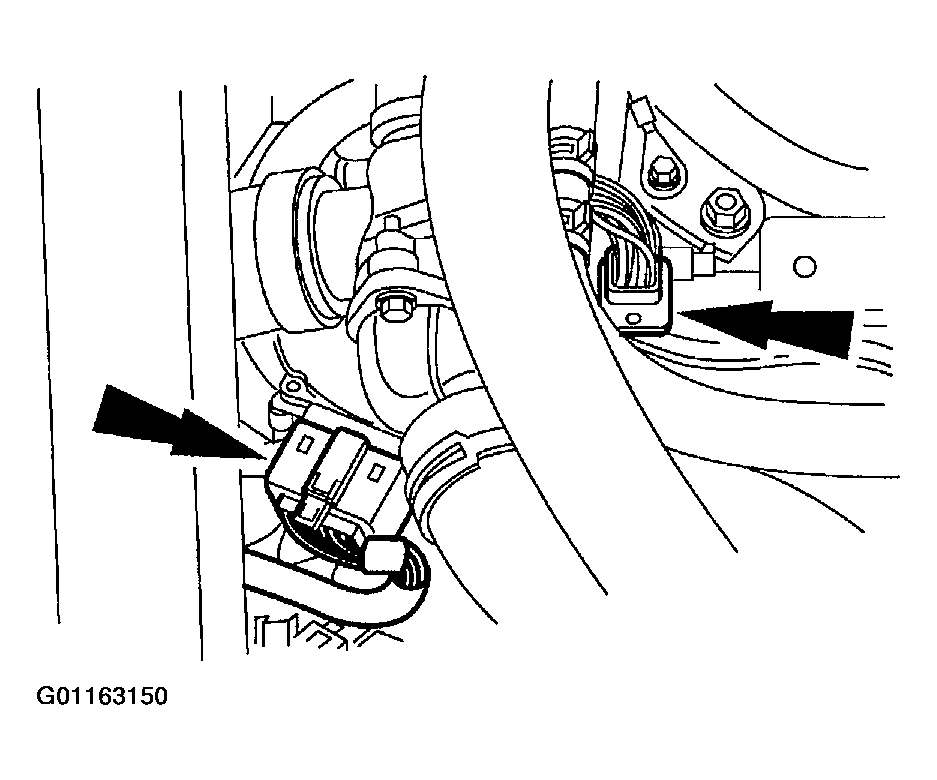

Disconnect the transaxle wiring harness electrical connector, and TR sensor connector.

Fig 3: Disconnecting Transaxle Wiring Harness Electrical Connector, And TR Sensor Connector

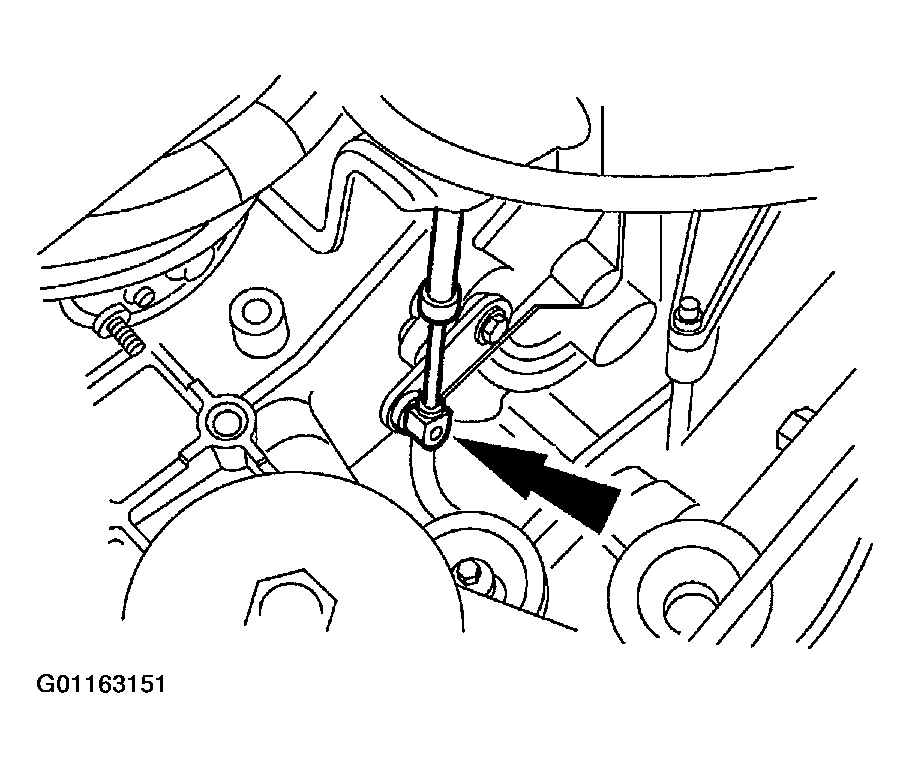

Disconnect the shift cable.

Fig 4: Disconnecting Shift Cable

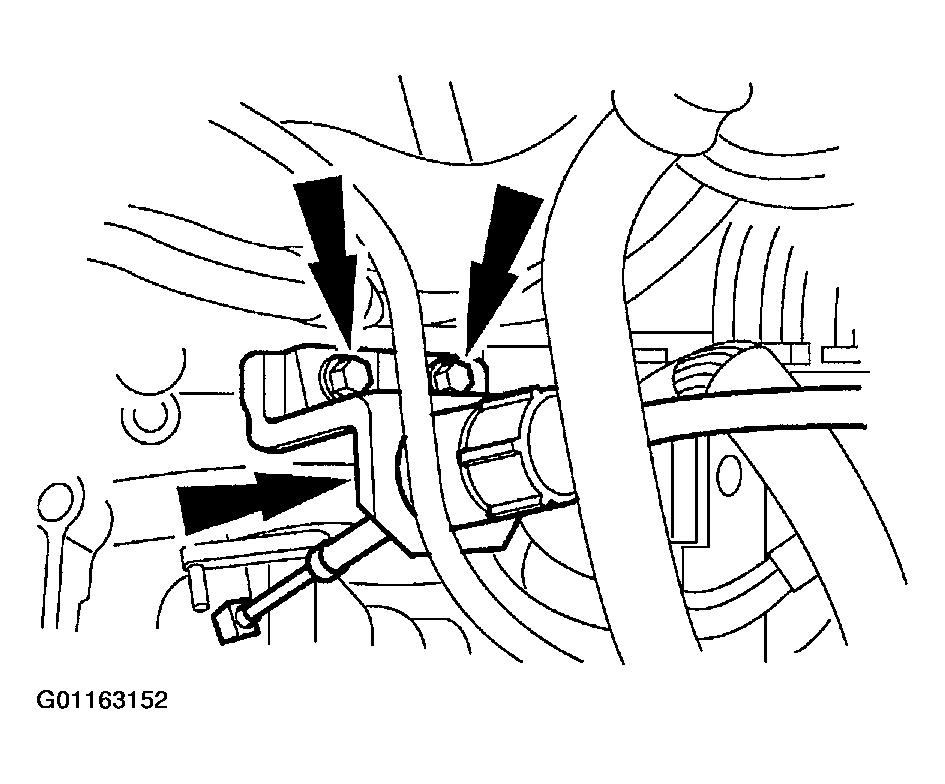

Remove the shift cable and bracket, and position out of the way.

Fig 5: Removing Shift Cable And Bracket, And Position Out Of The Way

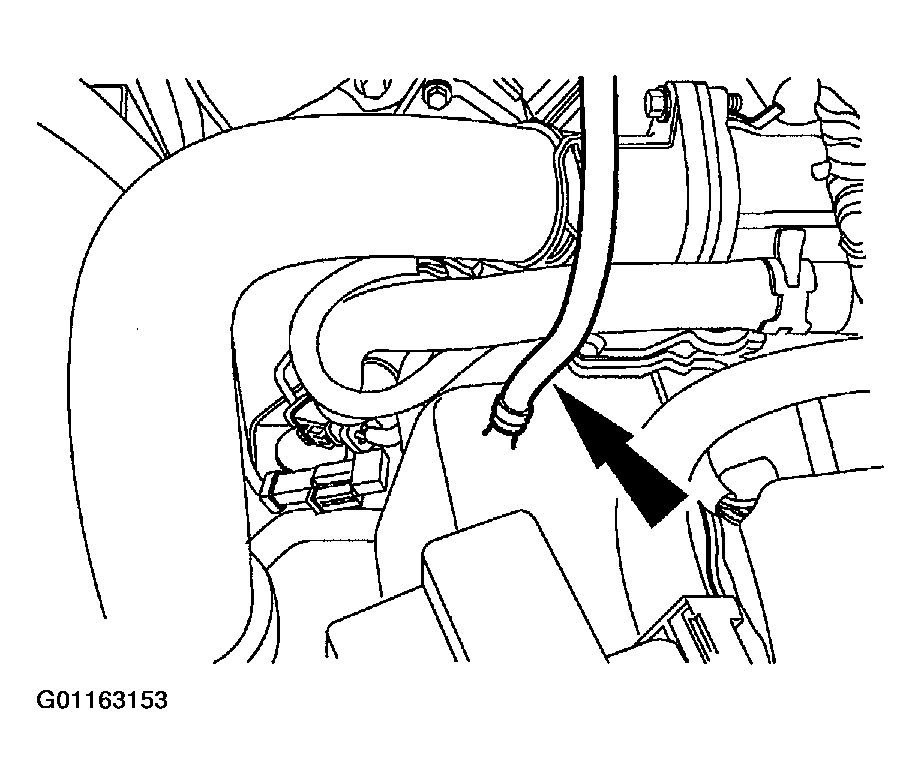

Remove the vent tube hose.

Fig 6: Removing Vent Tube Hose
Raise and support the vehicle.
Remove the LH front wheel.

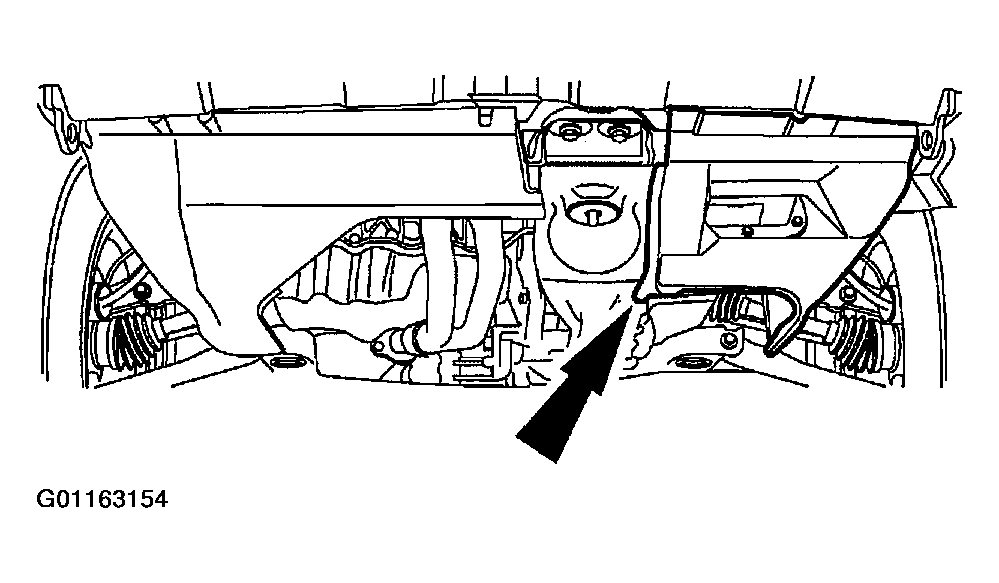

Remove the splash shield.

Fig 7: Removing Splash Shield

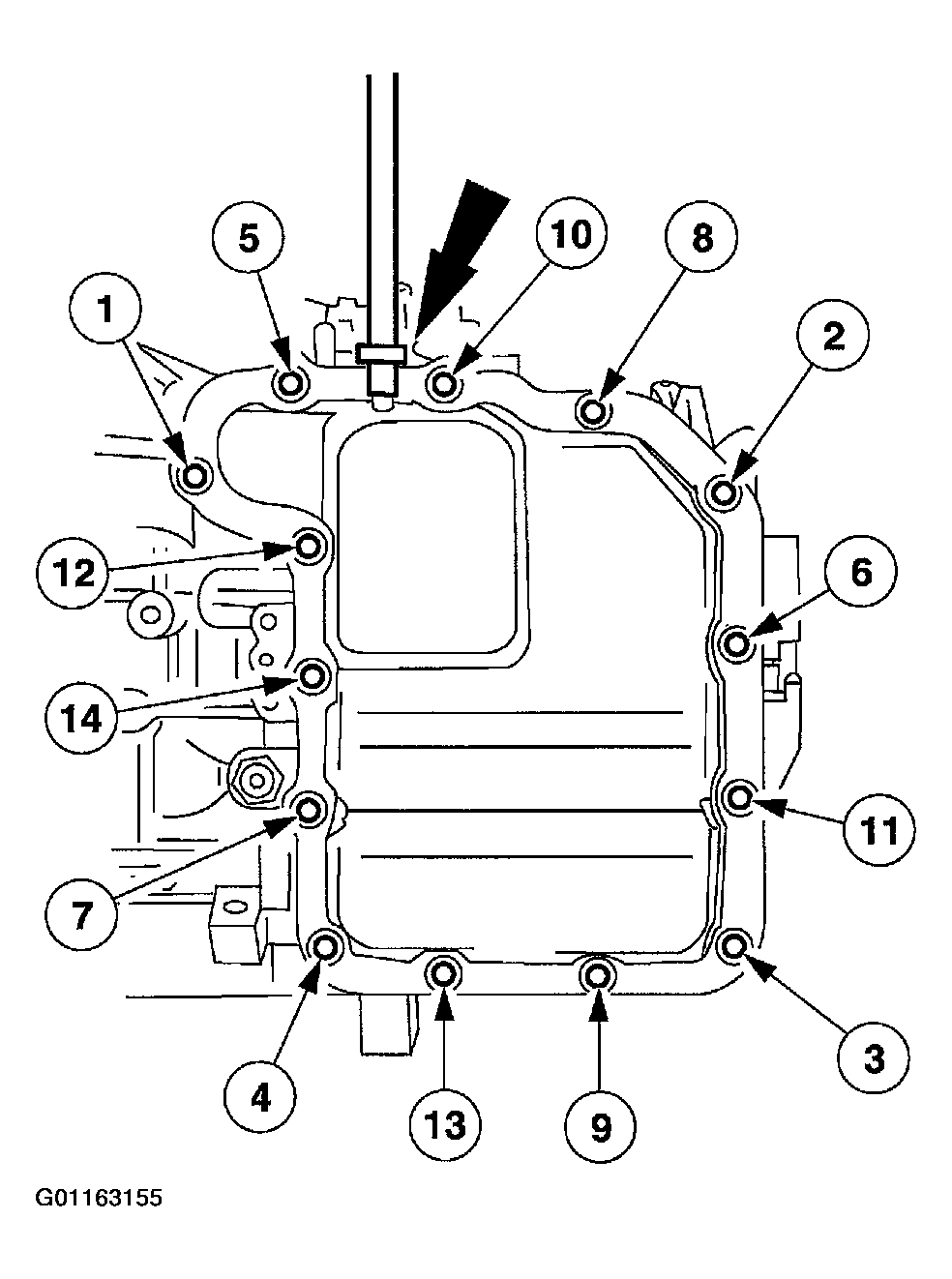

NOTE: Remove the bolts in the indicated sequence.
Remove the main control cover.

Fig 8: Removing Bolts On The Main Control Cover

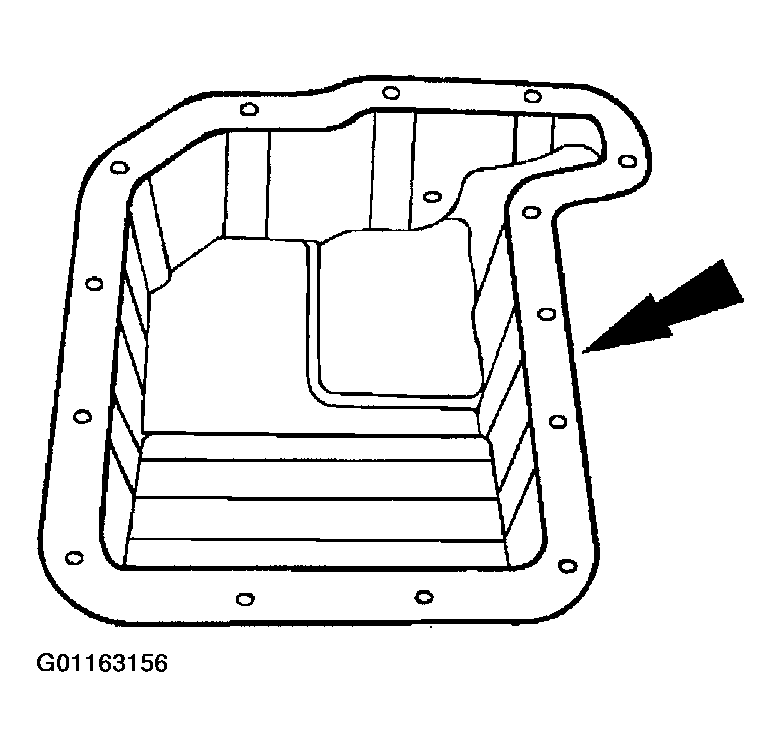

Remove the main control cover gasket.

Fig 9: Removing Main Control Cover Gasket

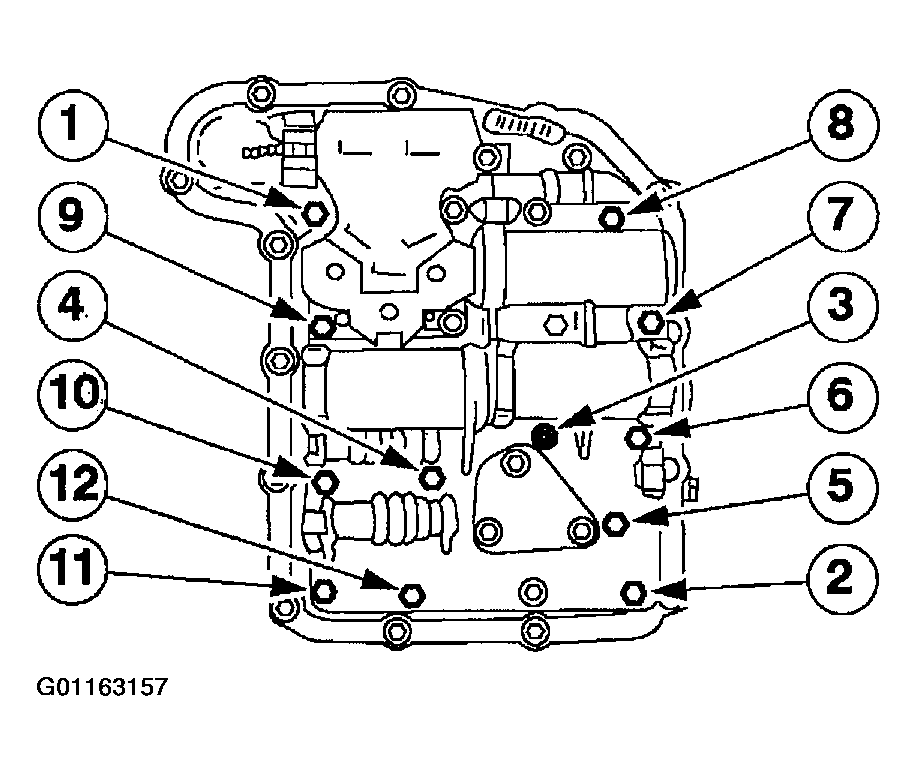

NOTE: Remove the bolts in the indicated sequence.
Remove the main control valve body bolts.

Fig 10: Removing Main Control Valve Body Bolts

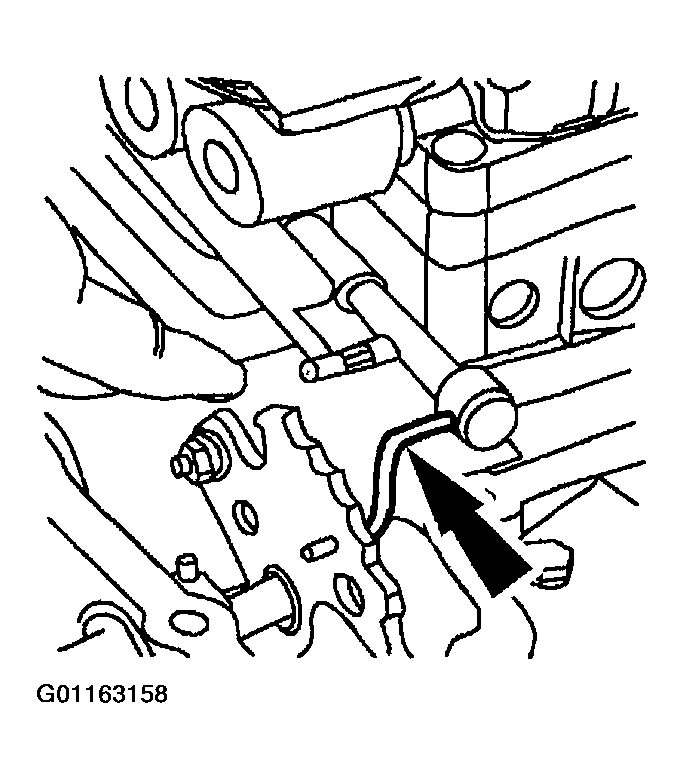

NOTE: Do not damage the manual valve.

Fig 11: Disconnecting Manual Valve Link

Lift the main control valve body while disconnecting the manual valve link.

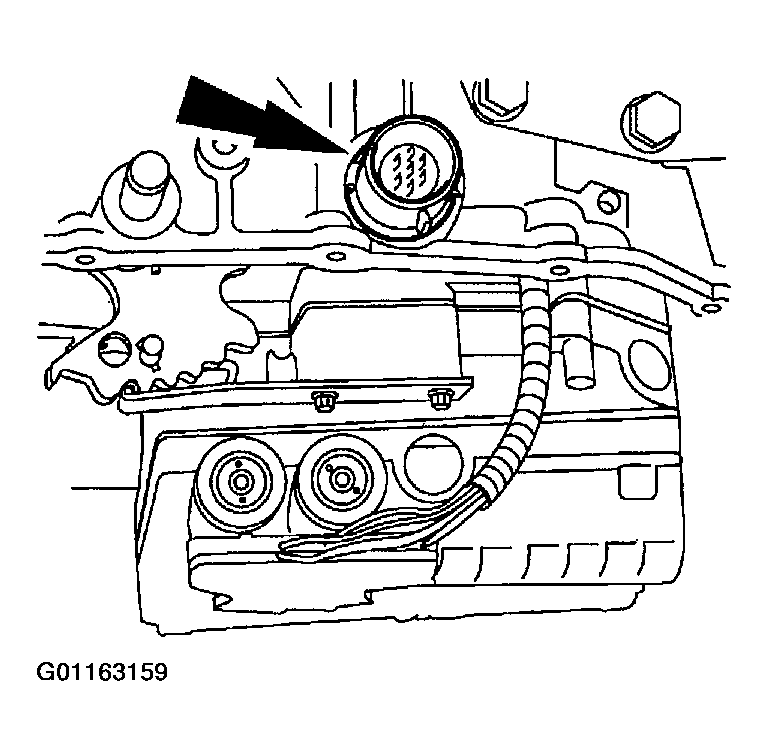

Depress the retaining tabs and push the solenoid valve body electrical connector down through the transaxle case.

Fig 12: Locating Solenoid Valve Body Electrical Connector

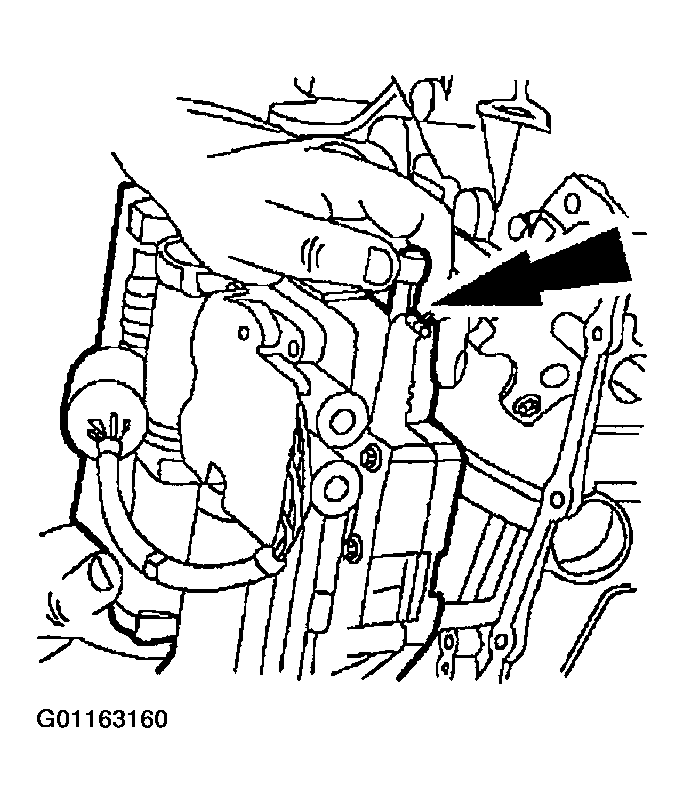

Make sure the manual valve control lever does not fall out of the main control valve body while removing from the vehicle.

Fig 13: Removing Main Control Valve Body
