Overdrive Servo: Installation
WARNING:
Servo return spring force is very high. Failure to follow these instructions may result in personal injury.

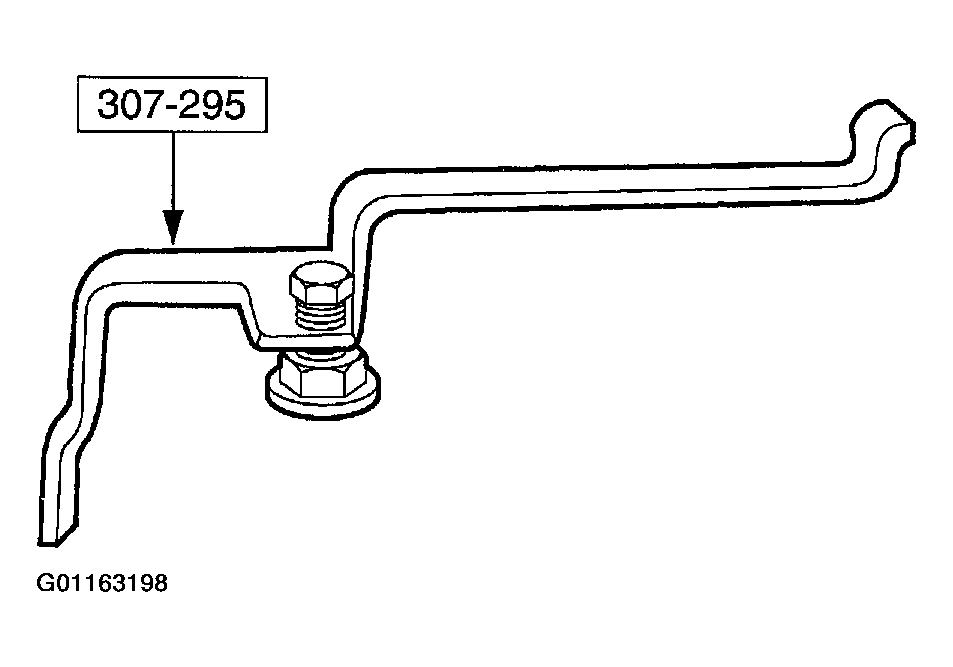

- Assemble the special tool.

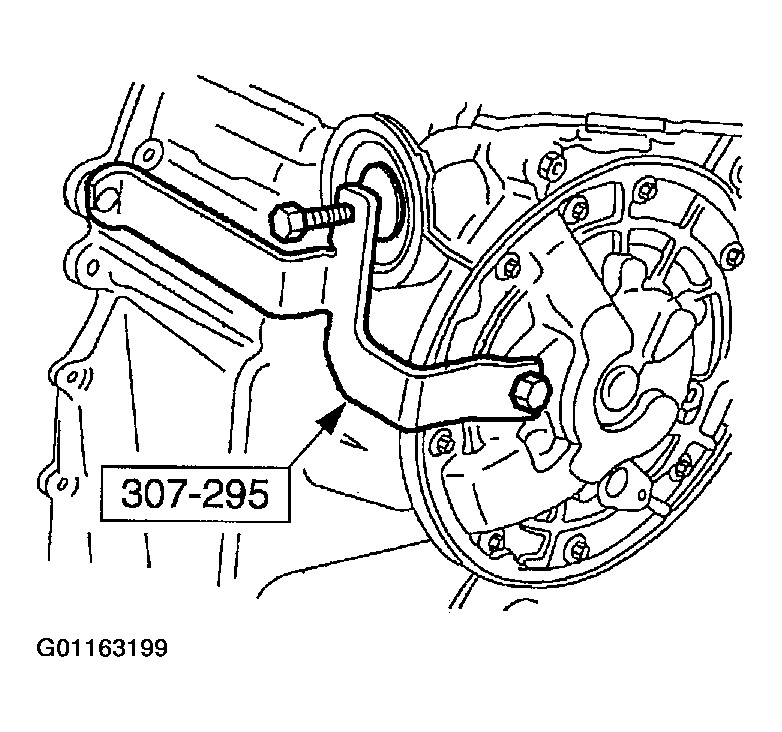

- Install the special tool.
CAUTION: Do not use a screwdriver to install the retaining ring or damage to the case may occur. Use only snap ring pliers to install the retaining ring.NOTE: If the servo cover will not seat deep enough in the bore to install the servo cover retaining ring, use a blunt punch or small hammer and gently tap the cover around the outer edge until the servo cover retaining ring can be installed.

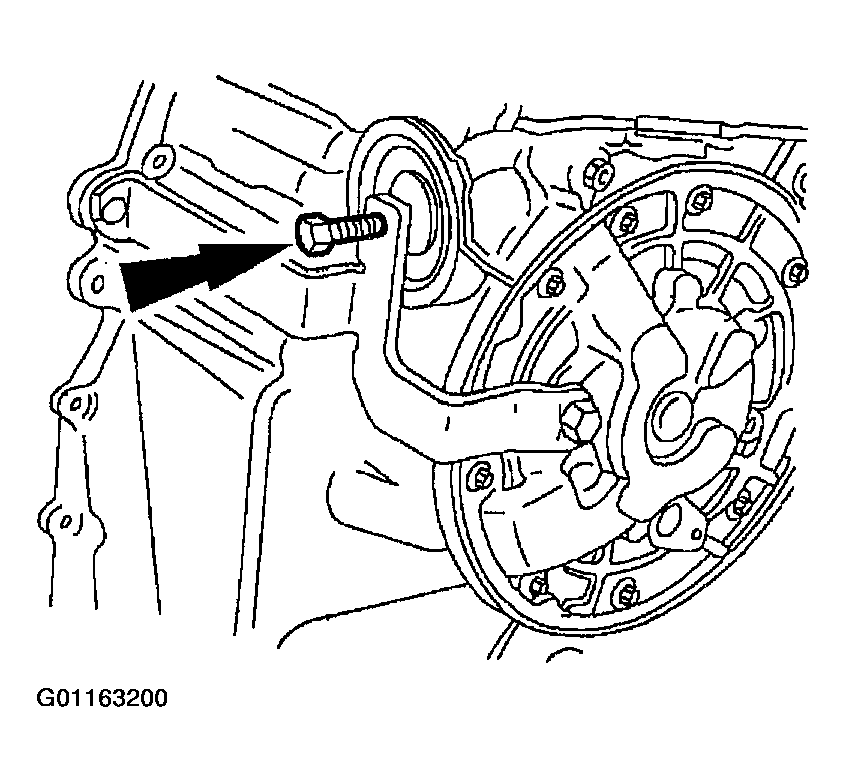

- Tighten the special tool bolt.
- Install the servo cover retaining ring.
- If the case is stamped "WG", install a wide-grooved snap ring, or the servo will be damaged.
- Loosen the special tool bolt.
- When the spring tension is released, remove the special tool.

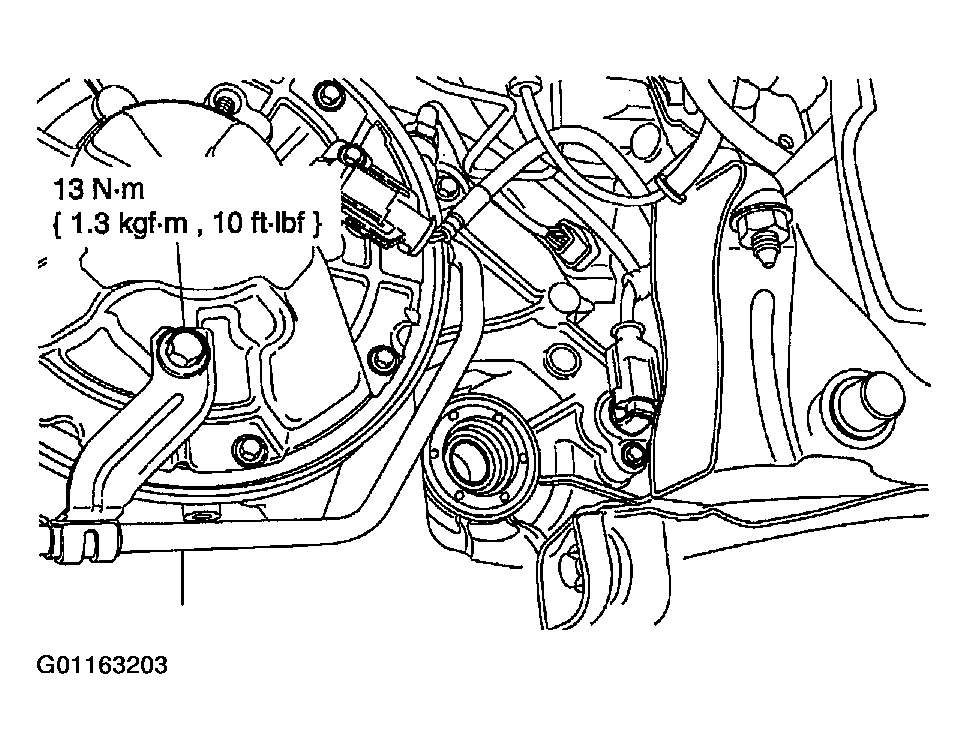

- Install the transaxle fluid cooler line.

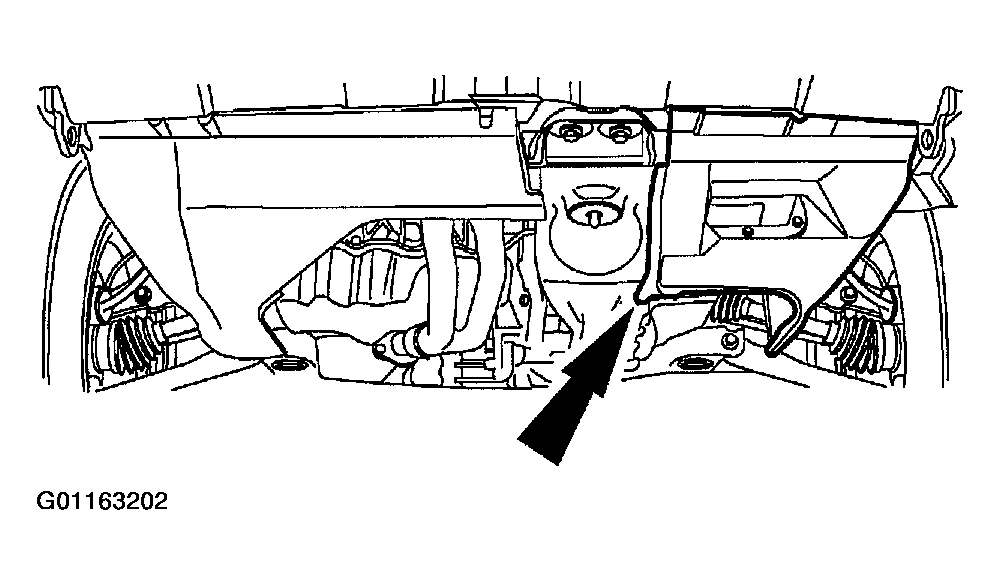

- Install the splash shield.
- Lower the vehicle.
- Start the vehicle. Place the transaxle range selector lever in each gear and allow to engage. Check for leaks.
- Check transaxle fluid.
