Disassembly Note

Remove the reverse clutch pressure plate retainer snap ring.

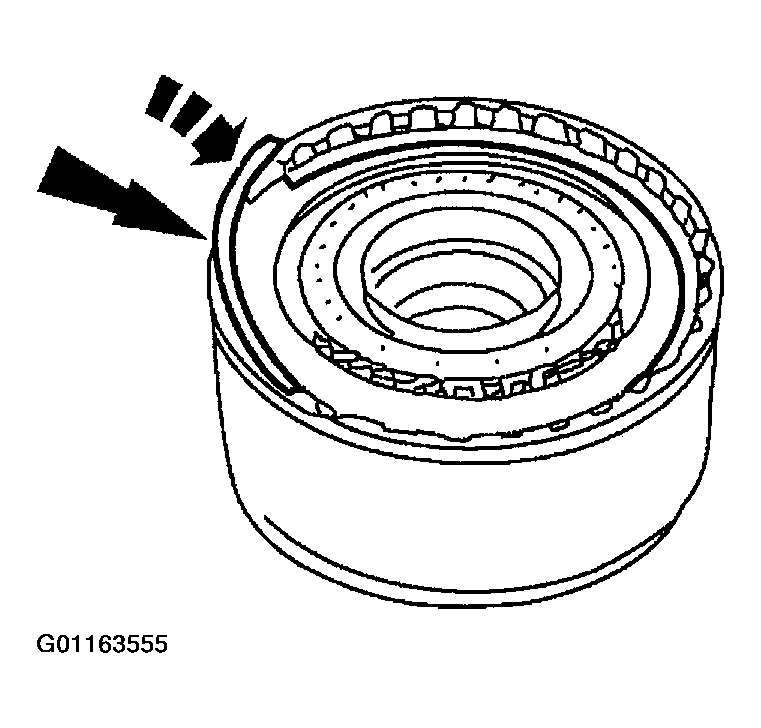

Fig 1: Removing Reverse Clutch Pressure Plate Retainer Snap Ring
Remove the reverse clutch plates.

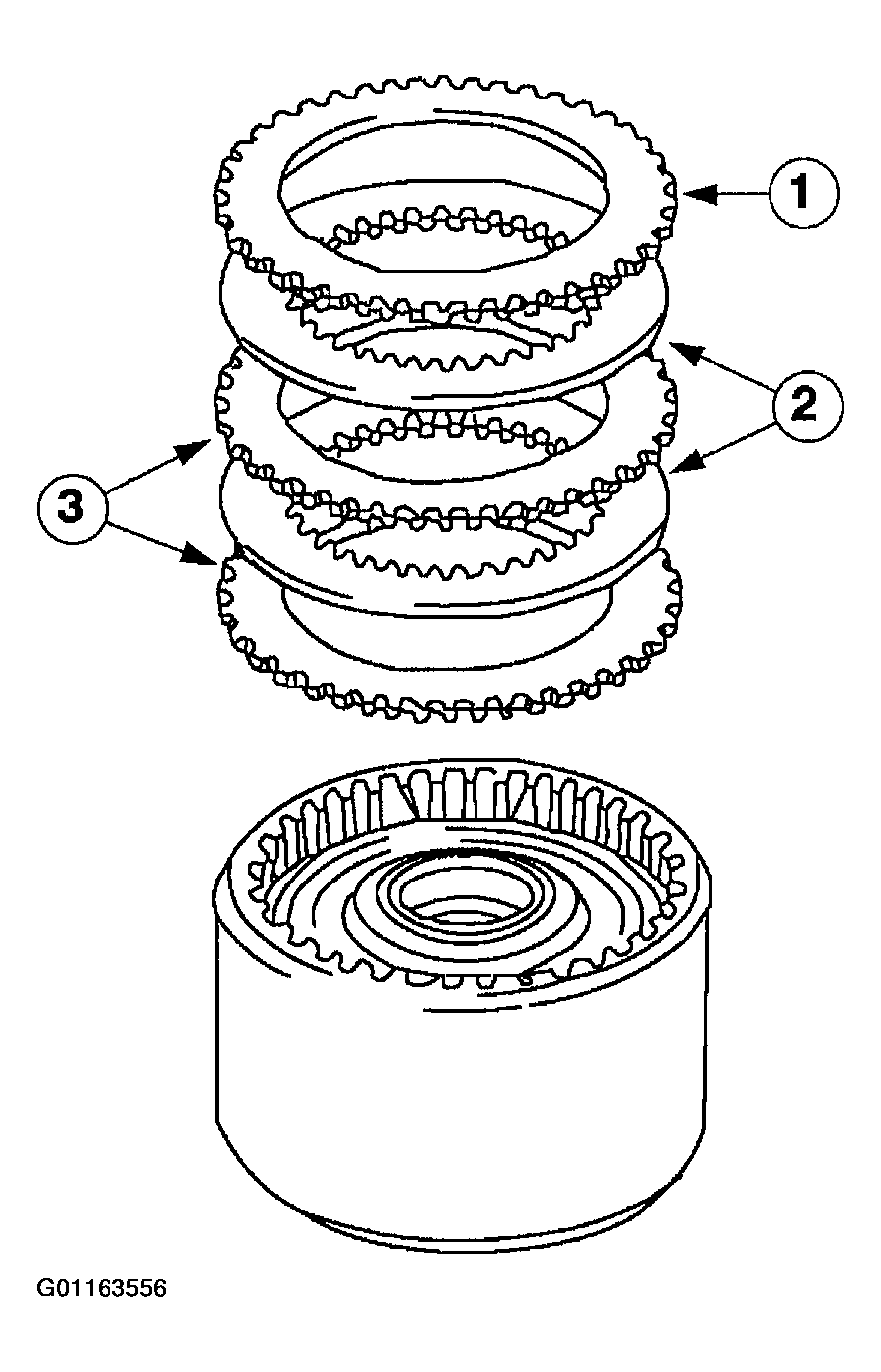

Fig 2: Exploded View Of Reverse Clutch Plates
1. Pressure plate.
2. Friction plate.
3. Steel plate.
4. Inspect for damage or wear.
  WARNING: Use caution when releasing tool pressure on the clutch piston springs. Failure to follow these instructions can result in personal injury.

  CAUTION: Do not compress the reverse clutch return springs completely.
Remove the retaining ring.

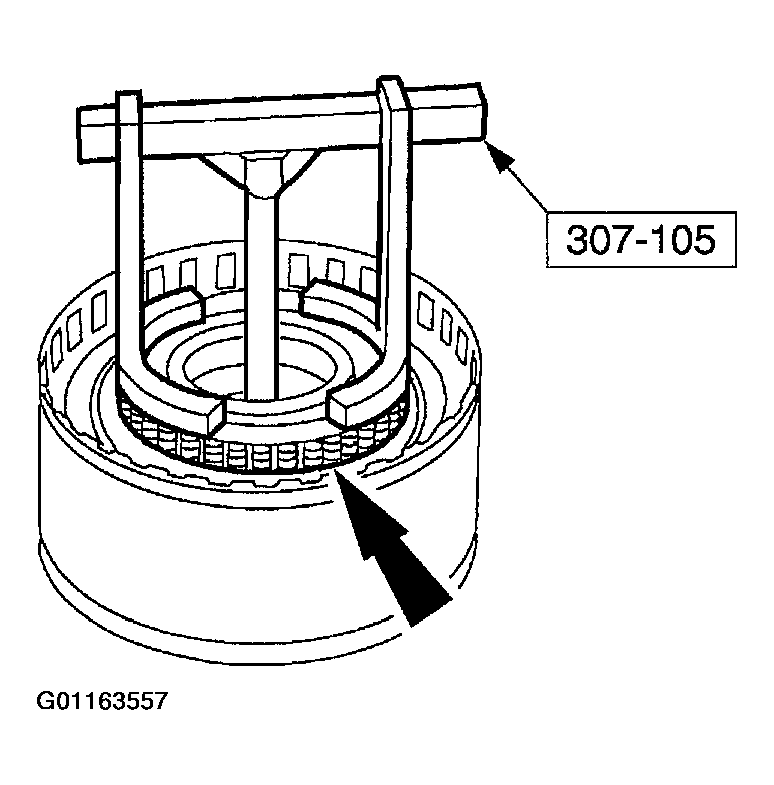

Fig 3: Removing Reverse Clutch Retaining Ring
1. Using the special tool, compress the reverse clutch return springs.
Remove the reverse clutch return spring assembly.

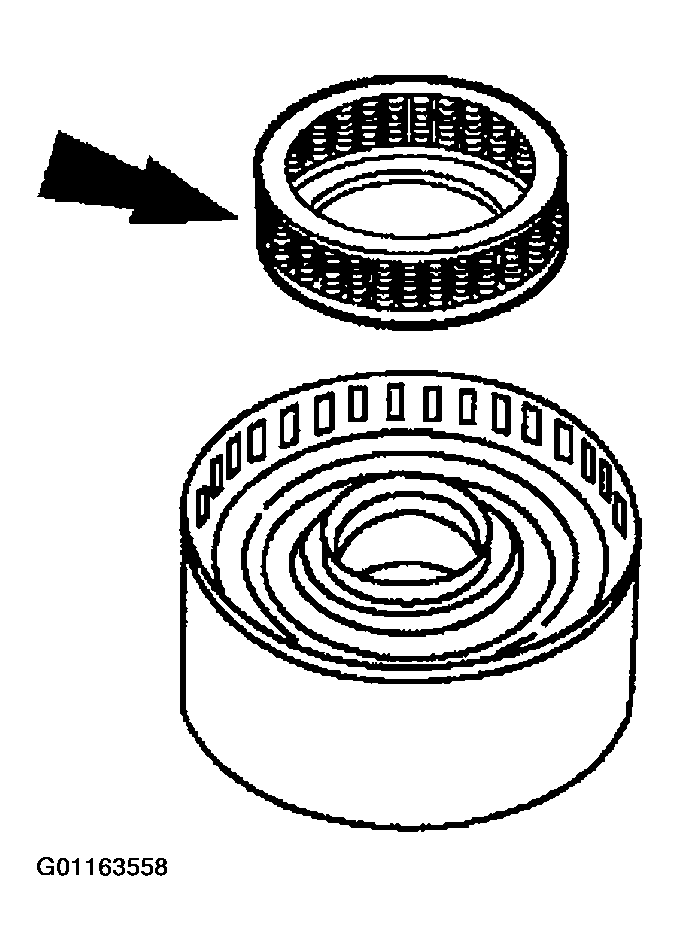

Fig 4: Removing Reverse Clutch Return Spring Assembly
Remove the reverse clutch piston assembly.
WARNING: Air pressure must not exceed 138 kPa (20 psi). Wear safety glasses when using compressed air. Failure to follow these instructions can result in personal injury.

NOTE: Do not clean the clutch plates in a vapor degreaser or with any other type of detergent solution. Clean all parts thoroughly in a clean solvent and blow dry with moisture-free regulated compressed air.

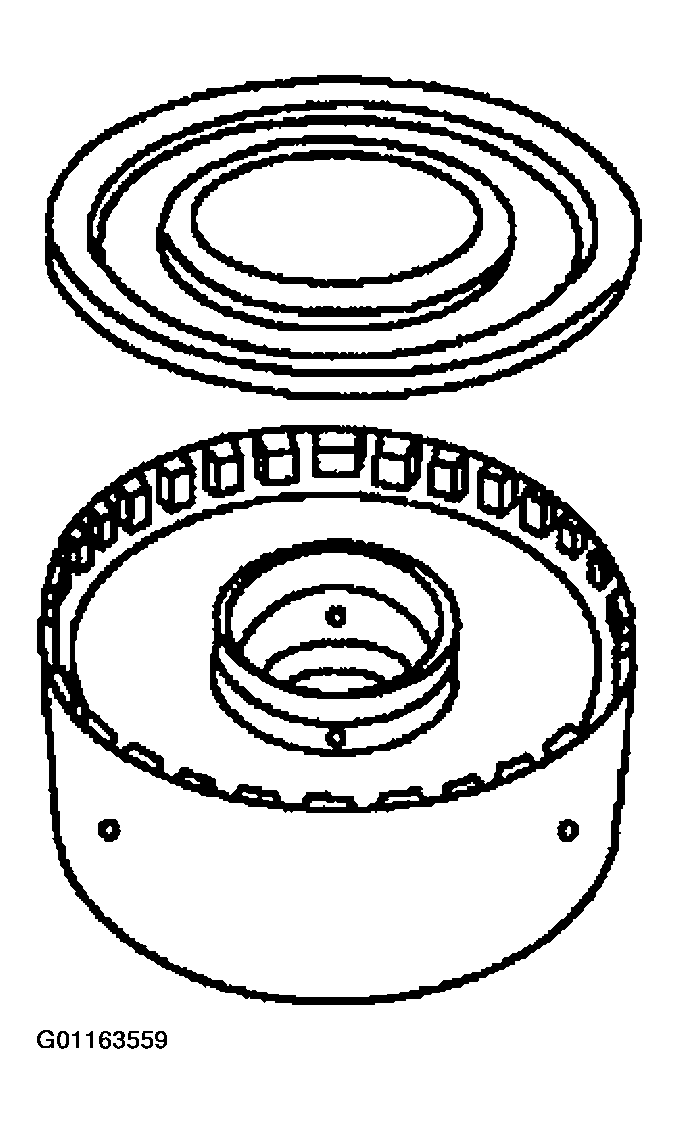

Fig 5: Removing Reverse Clutch Piston Assembly
Clean the friction steel plates with a lint-free cloth.
Inspect the parts for damage and wear:
1. Clutch plates.
2. Piston and seals.
3. Bushings.
4. Check ball in drum.
5. Drum outer surface band contact area.
6. Piston bore.
