Torque Converter Insert Check: Inspection

  1. Install the oil pump drive shaft into the torque converter.

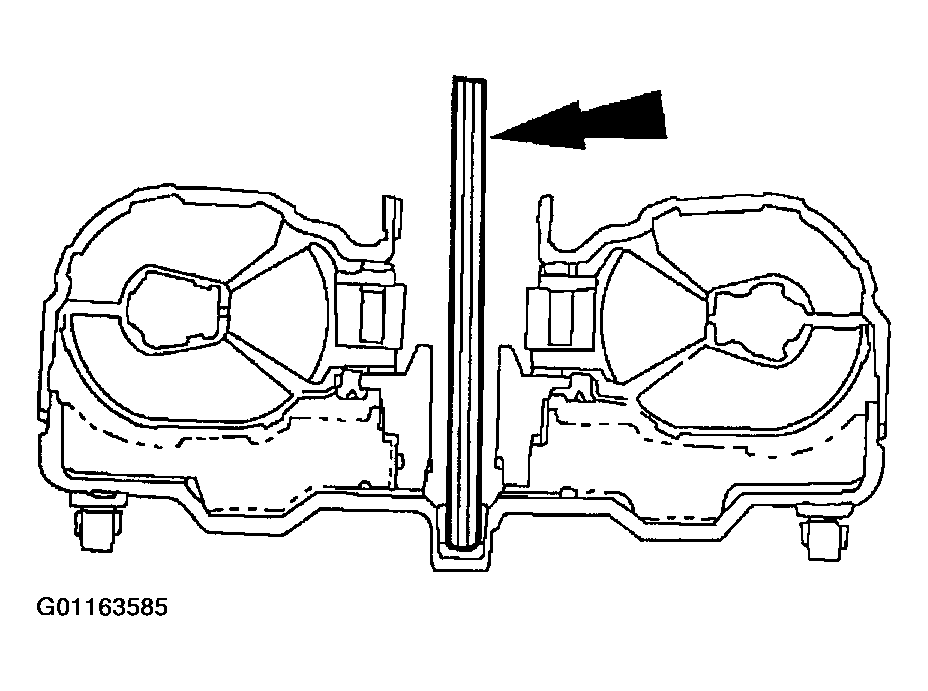

    Fig 1: Installing Oil Pump Drive Shaft Into The Torque Converter
    G01163585
  2. Install a torque wrench with a 5/16 Allen head socket attached on the oil pump drive shaft.

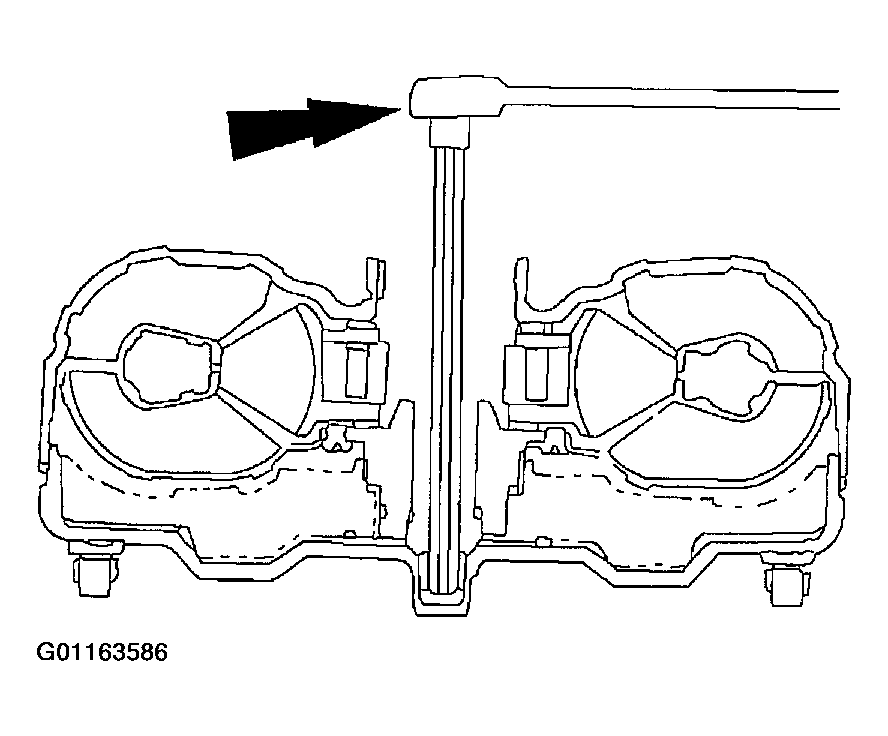

    Fig 2: Installing Torque Wrench
    G01163586
  3. Verify that the insert can hold torque.

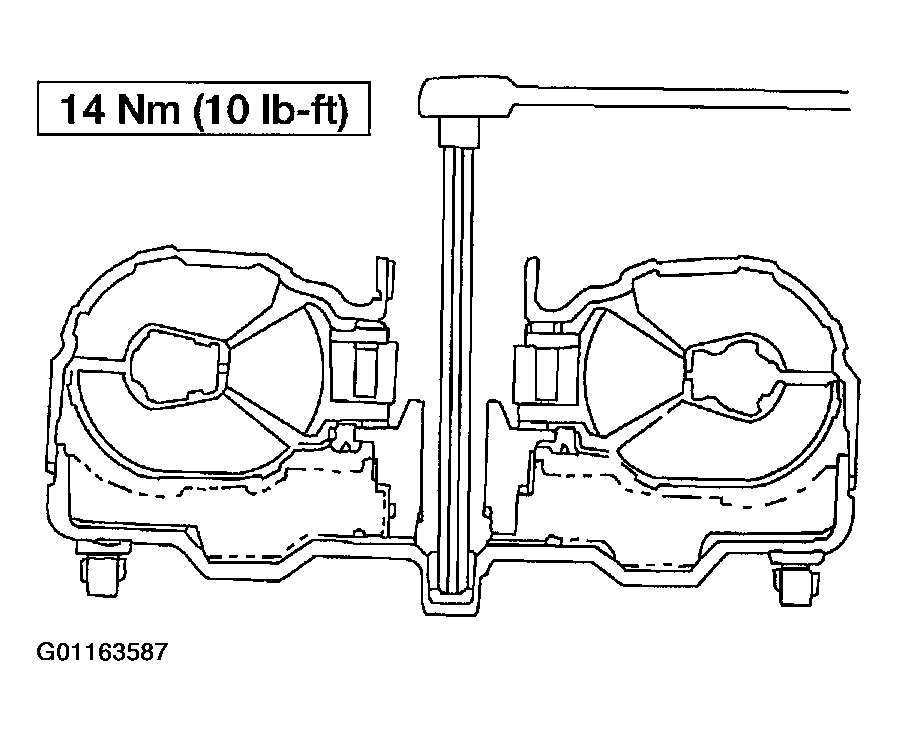

    Fig 3: Verify That The Insert Can Hold Torque
    G01163587
  4. If the insert cannot hold the specified torque, install a new torque converter.
