Base Removal

  1. Remove the rearview mirror. See REARVIEW MIRROR REMOVAL  .
  2. Wind each end of a piano wire around a bar.
    NOTE:
    • Use a long sawing action to spread the work over the whole length of the SST  (piano wire) to prevent it from breaking.
  3. Saw through the sealant to remove the base.

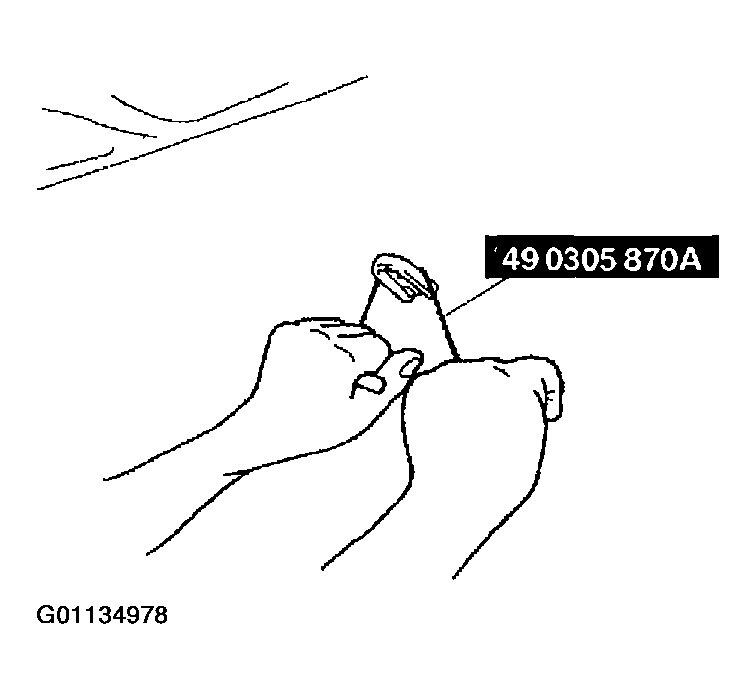

    Fig 1: Removing Mirror Base
    G01134978Courtesy of MAZDA MOTORS CORP.
