Abs Harness And Input Signal Inspection
- Disconnect the ABS CM connector with the ignition switch at OFF.
CAUTION:
- Be careful not to damage the terminals during inspection.
- Insert a thin isolation plate to the short bar of the connector (asterisk shown in the figure) and open circuit between terminal D and E, D and F.

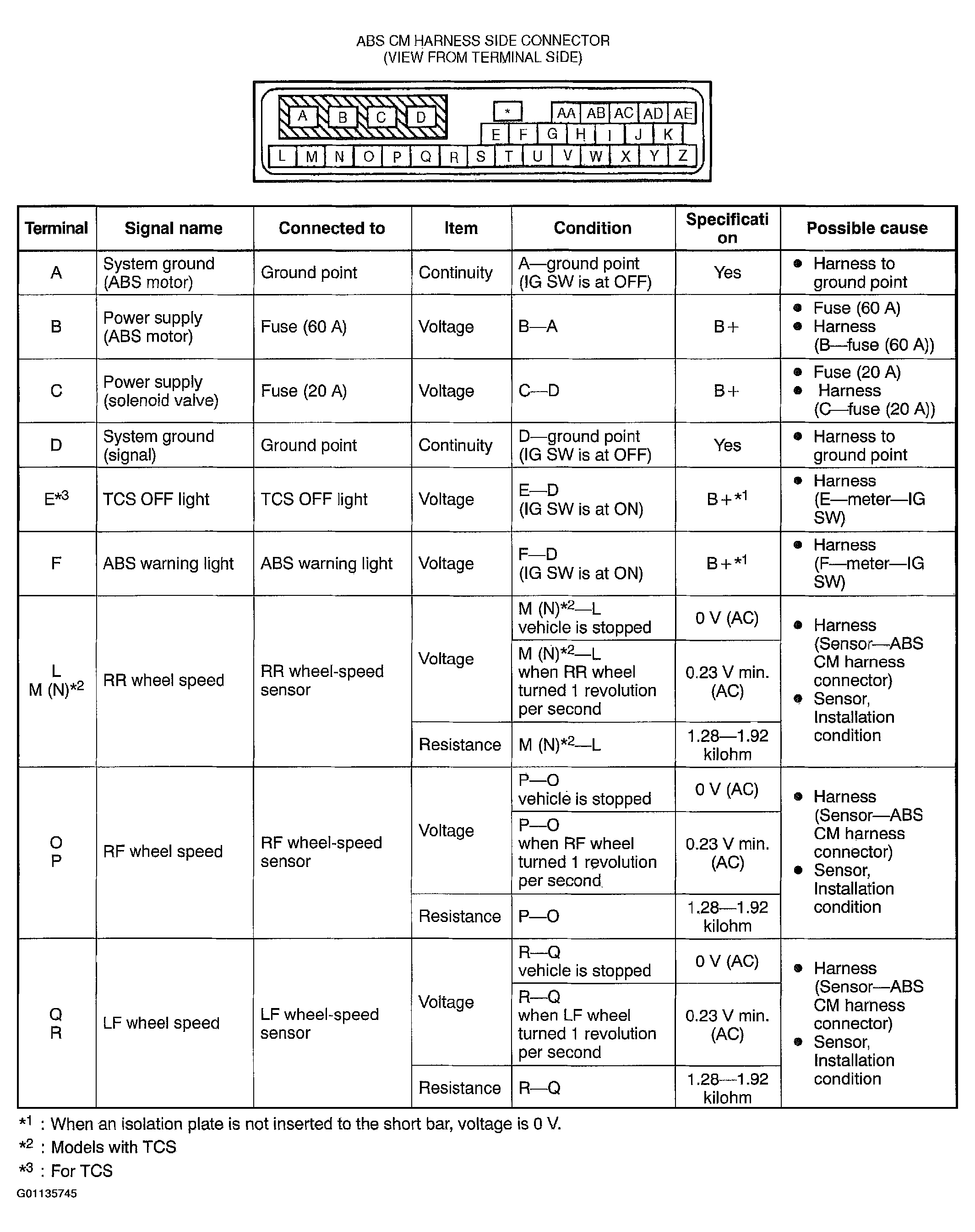

- Attach a wire to the tester lead to avoid damaging the terminals then inspect voltage, resistance or continuity, referring Fig 1

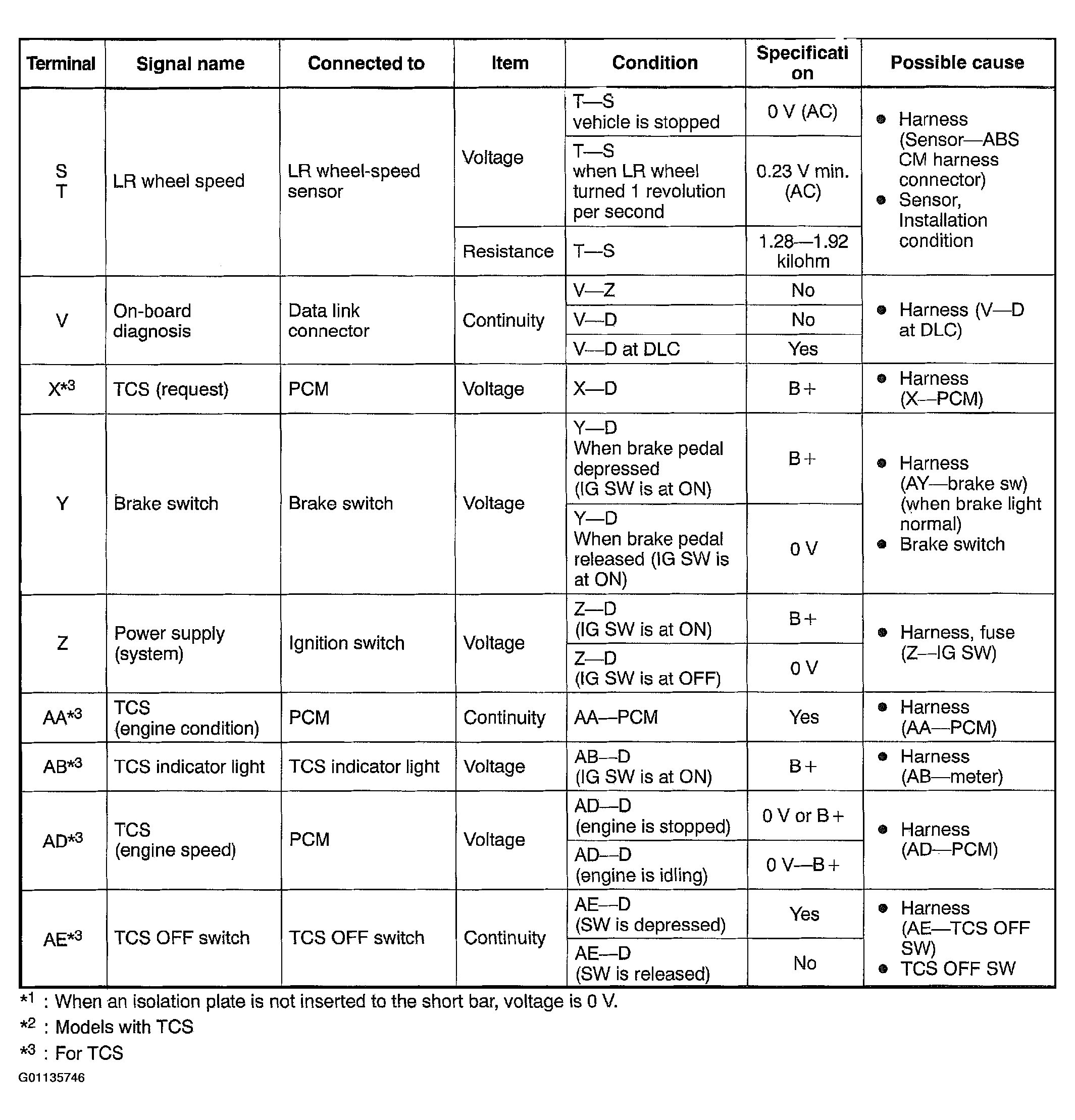

and/or Fig 2
.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
