Brake Pipe Removal/Installation

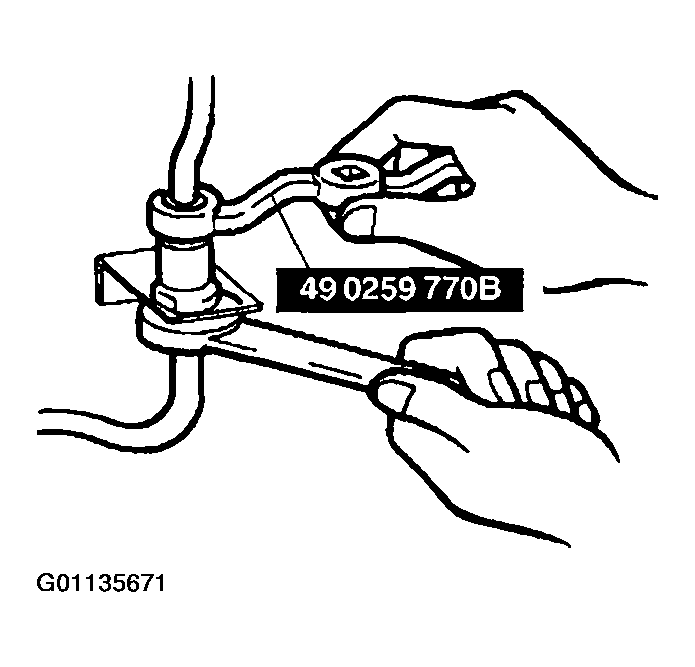

Remove the brake pipe by using the SST.
Disconnect the clip and remove the flexible hose from the bracket.

Fig 1: Removing Flexible Hose From Bracket
Courtesy of MAZDA MOTORS CORP.

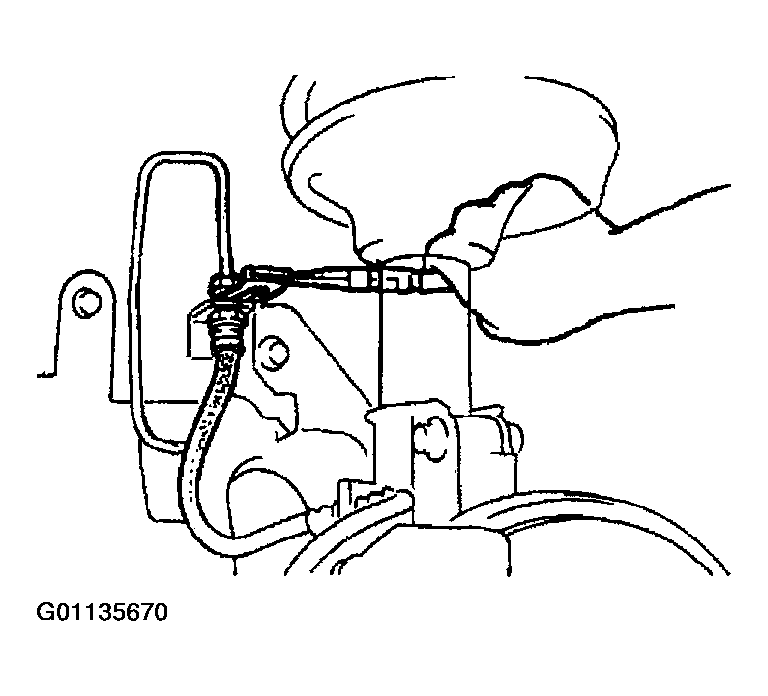

Secure the flexible hose in the bracket and connect the clip to it.

Fig 2: Securing Flexible Hose
Courtesy of MAZDA MOTORS CORP.
Connect the flexible hose to the brake pipe. Verify that the hose is not twisted.
Tighten the flare nut by using the SST. Verify that the hose can not come in contact with any other parts of vehicle.
Tightening Torque

12.9-21.5 N.m {130-220 kgf.cm, 113-190 in.lbf}

Fig 3: Tightening Flare Nut
Courtesy of MAZDA MOTORS CORP.
