DTC B1318: Abs Control Module Power Supply

Diagnostic Procedure

CAUTION:

• When attaching the tester lead to the PCM, the SST must be used.

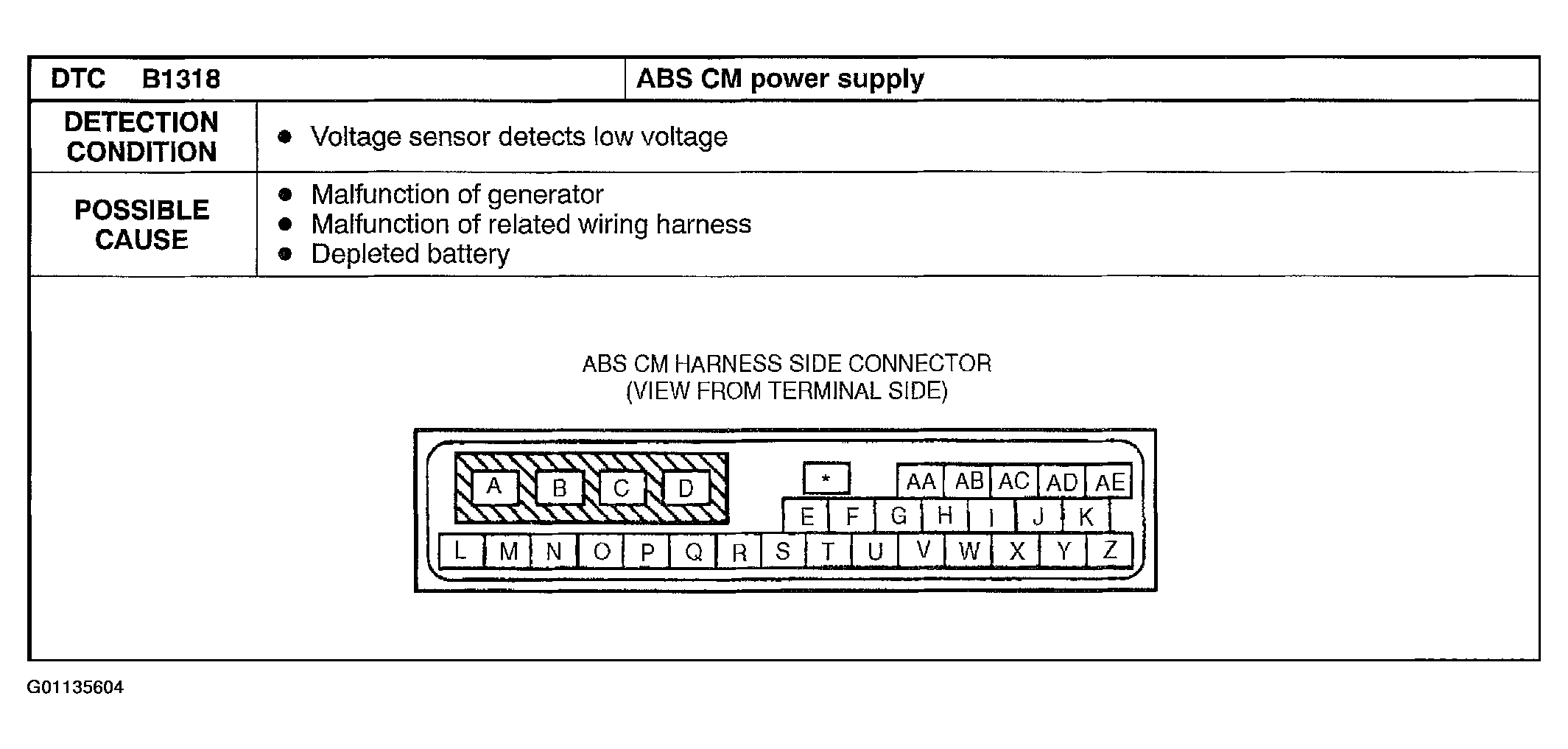

Fig 1: DTC B1318 Detection Condition & Possible Causes

Courtesy of MAZDA MOTORS CORP.

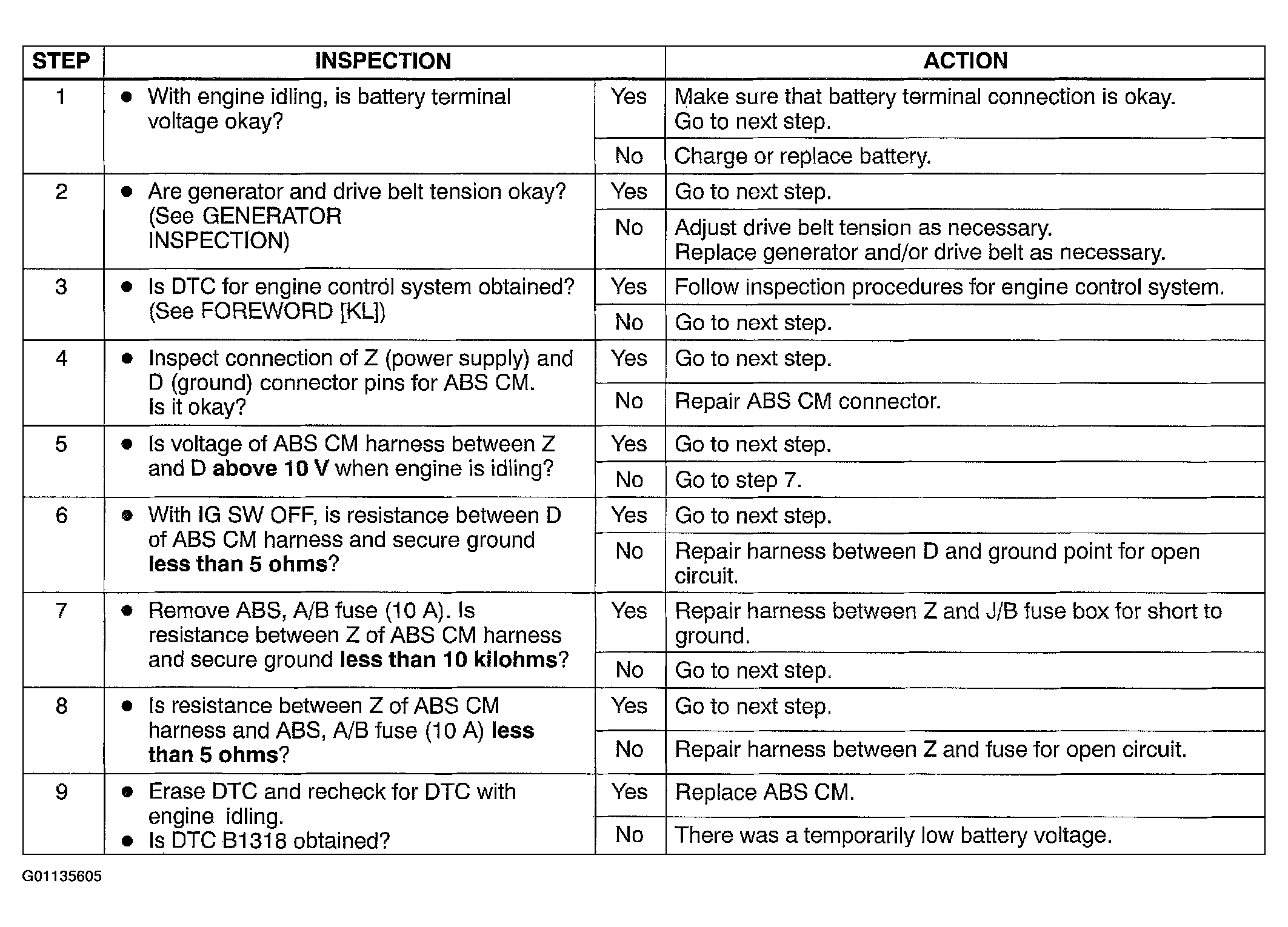

Fig 2: DTC B1318 Inspection & Action

Courtesy of MAZDA MOTORS CORP.
