Dual Proportioning Valve Inspection: Notes

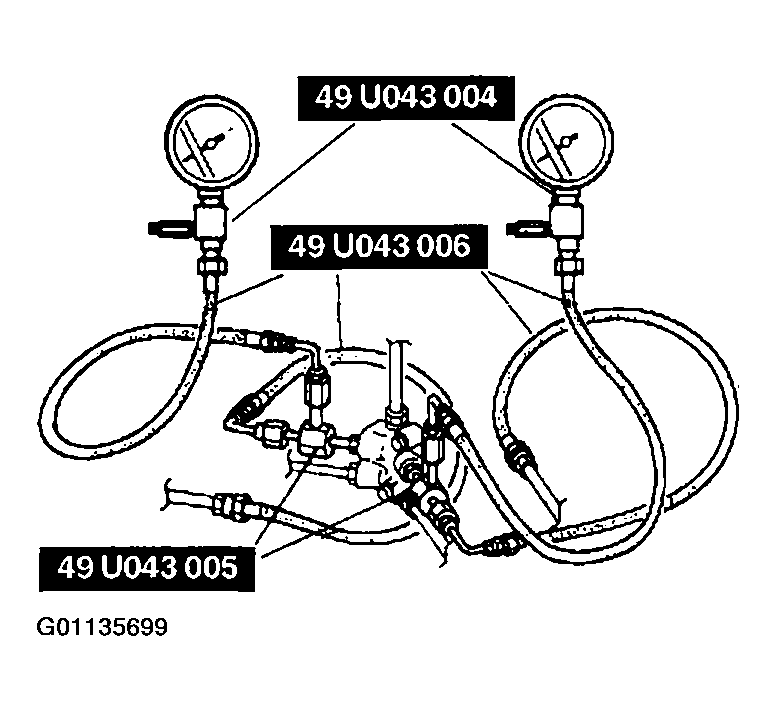

- Connect the SSTs to the brake pipes as shown in the figure.
- Bleed the air from the brake system.
- Measure the fluid pressure of the master cylinder and the rear brake.
- If not within the specification, replace the dual proportioning valve.
Courtesy of MAZDA MOTORS CORP.
