Piston Assembly Note

Insert the piston into the caliper and turn the adjustment gear counterclockwise with an Allen wrench to pull the piston inward. (Turn until it stops).

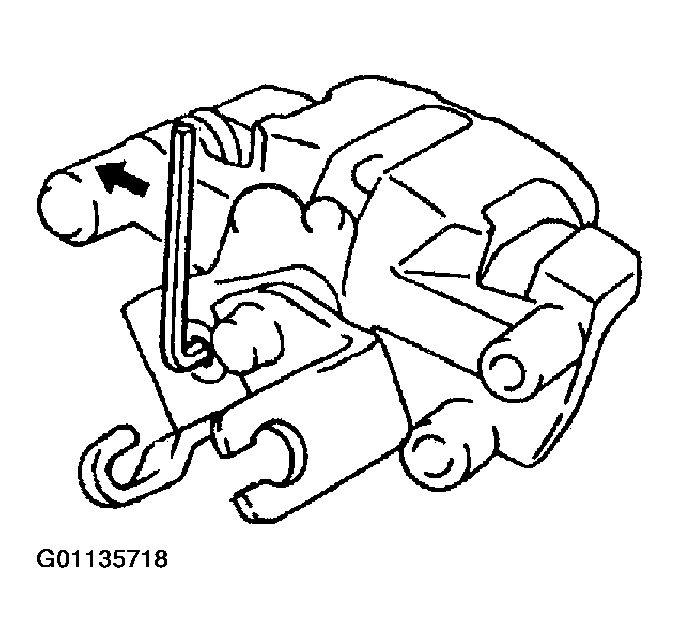

Fig 1: Turning Adjustment Gear Counterclockwise
Courtesy of MAZDA MOTORS CORP.
