Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Component Location
Joint Box Behind left side of dash. See Figure .

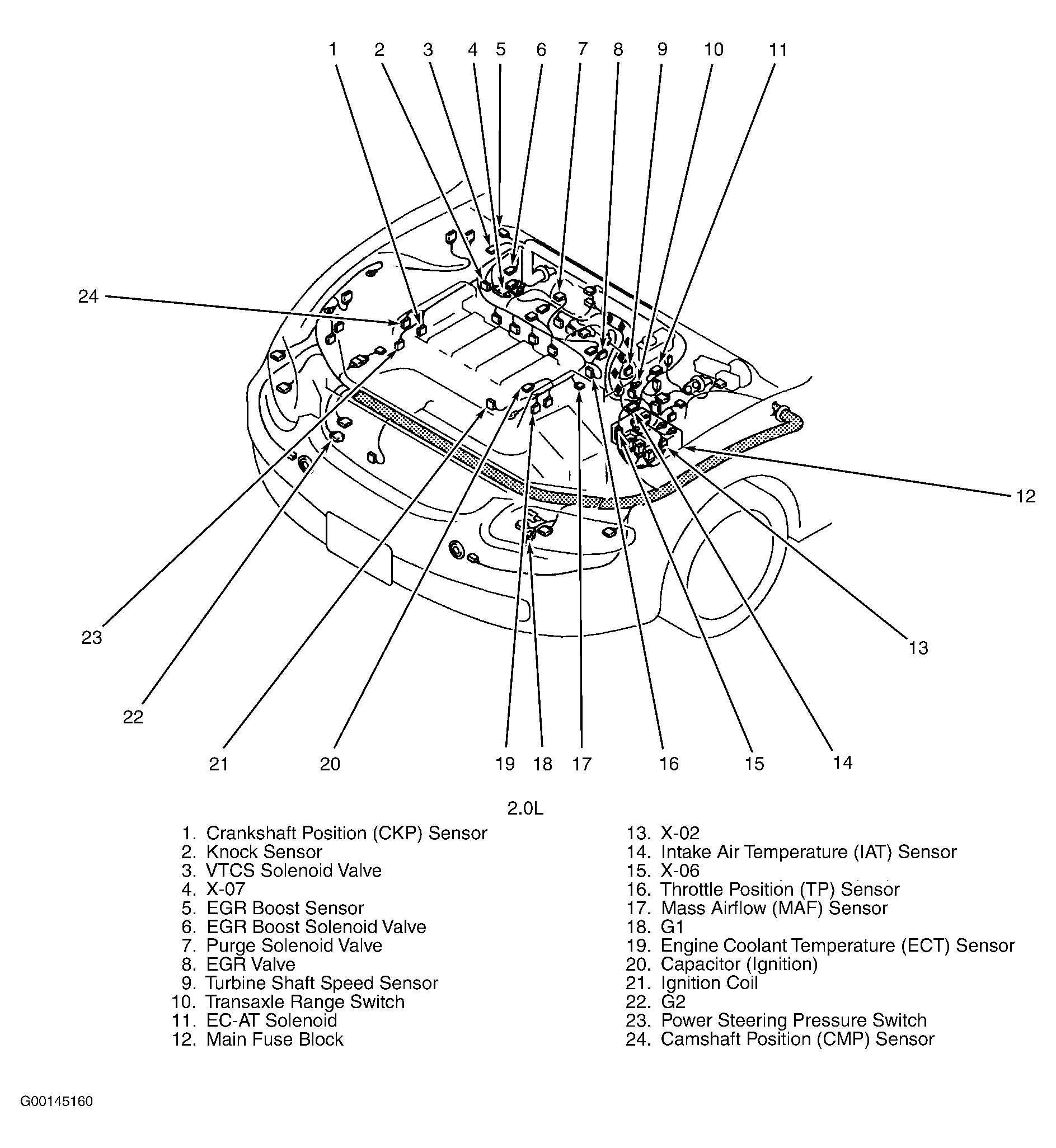

Main Fuse Block (2.0L) On left front inner fender panel, in engine compartment. See Figure .

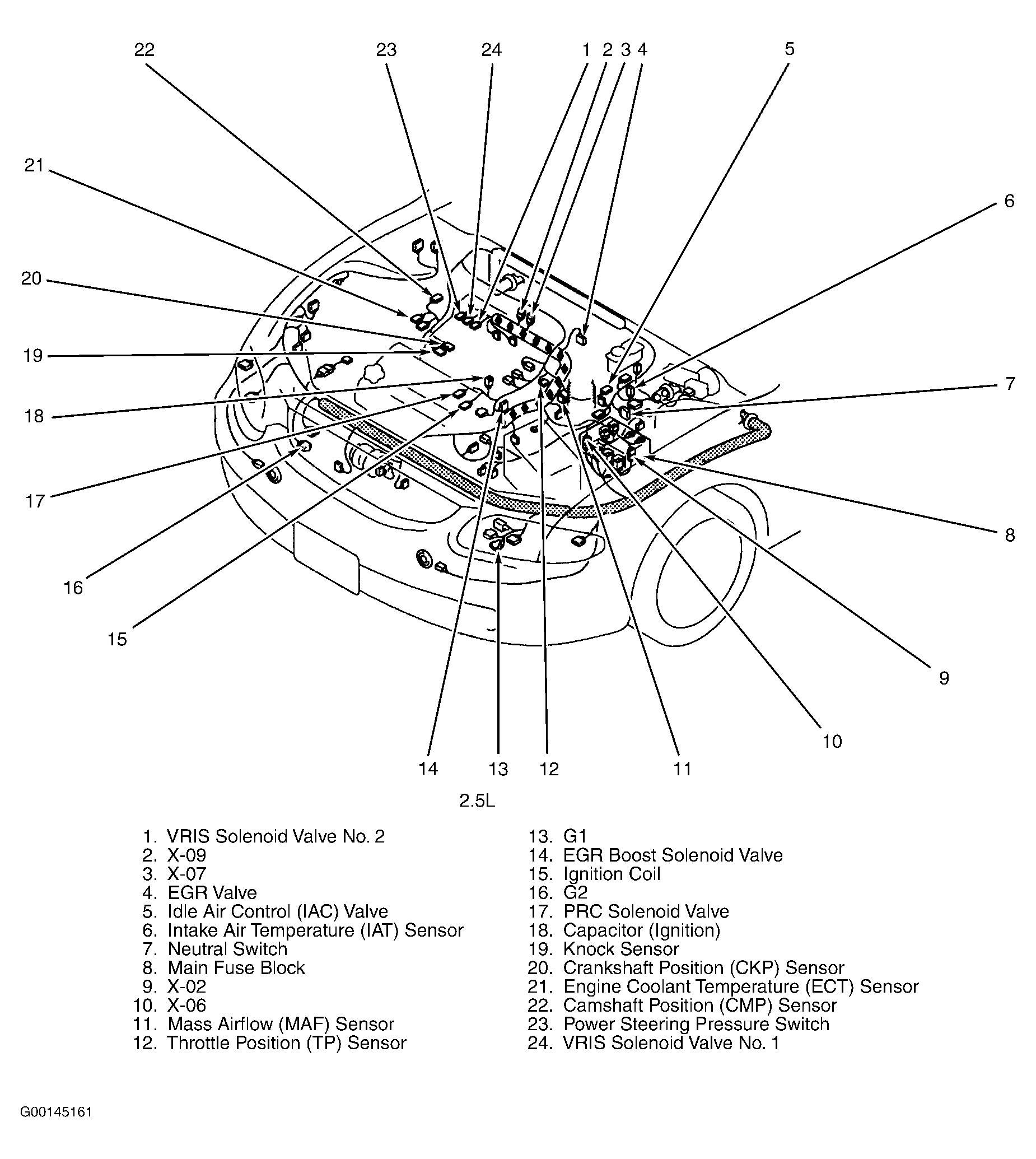

Main Fuse Block (2.5L) On left front inner fender panel, in engine compartment. See Figure .
