Inner Rotor Installation Note

  1. Install the inner rotor and outer rotor into the oil pump body with the marks aligned as shown.

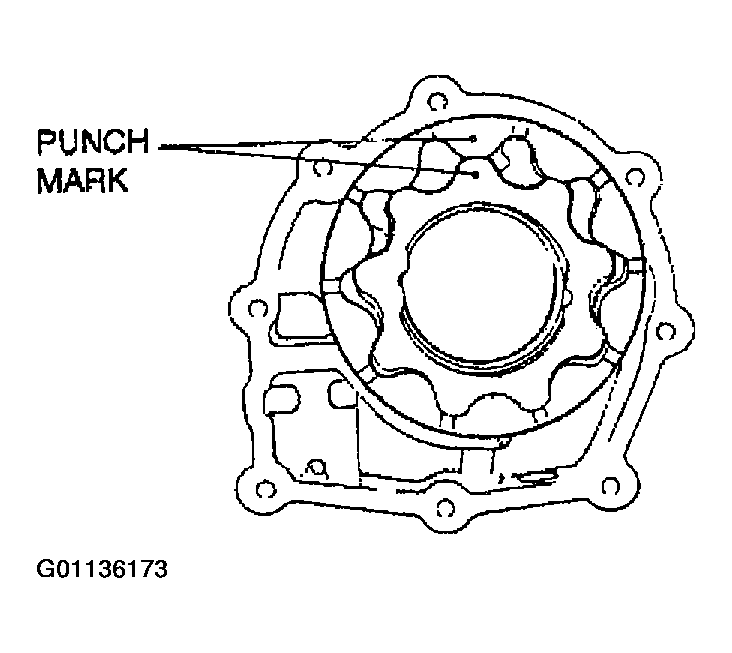

    Fig 1: Identifying Punch Marks
    G01136173Courtesy of MAZDA MOTORS CORP.
