Total Toe-In Adjustment

  1. Remove the access hole caps of the rear crossmember.
  2. Loosen the cam nut on the lateral link.
  3. Turn the adjusting cam bolt as indicated to adjust the toe-in.

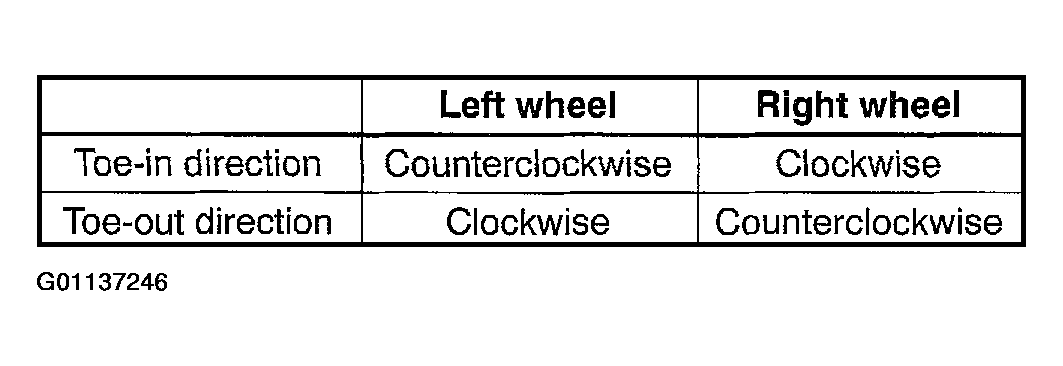

    Fig 1: Determining Cam Bolt Adjustment Direction
    G01137246Courtesy of MAZDA MOTORS CORP.

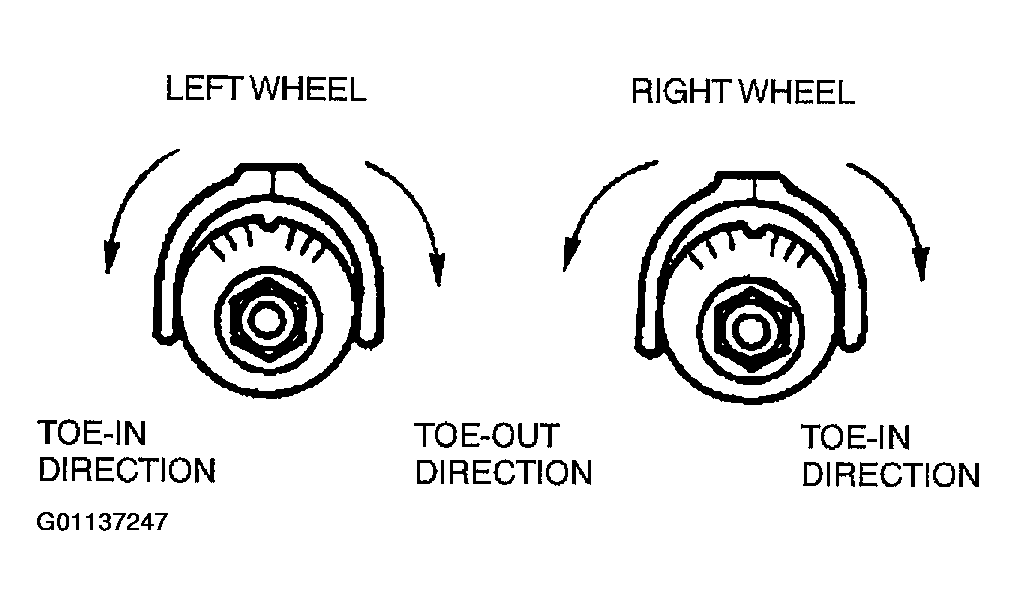

    Fig 2: Adjusting Cam Bolt Direction
    G01137247Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • Turning the adjusting cam bolt one graduation changes the toe-in about 2.9 mm {0.11 in} (0°18').
  4. Tighten the cam nut.

    Tightening Torque

    79-116 N.m {8.0-11.9 kgf.m, 57.8-86.0 ft.lbf}

  5. Install the caps.
