Power Mirror Control Switch

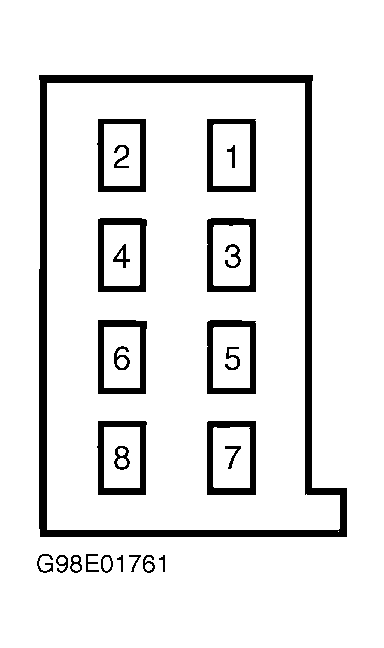

Remove mirror control switch. Measure resistance between specified terminals while operating switch in appropriate direction. See POWER MIRROR CONTROL SWITCH TEST table. See Fig 1 . Resistance in all tests should be less than 5 ohms. If switch fails any portion of test, replace switch.
POWER MIRROR CONTROL SWITCH TEST
| Switch Position | Check Continuity Between Terminals No. | |
|---|---|---|
| Driver's Mirror | ||
| Up | 1 & 3; 2 & 5 | |
| Down | 1 & 5; 2 & 3 | |
| Left | 1 & 3; 2 & 8 | |
| Right | 1 & 8; 2 & 3 | |
| Passenger's Mirror | ||
| Up | 1 & 3; 2 & 7 | |
| Down | 1 & 7; 2 & 3 | |
| Left | 1 & 3; 2 & 6 | |
| Right | 1 & 6; 2 & 3 | |
