Pinpoint Test 2: No Module/Network Communication - ISO 9141 Network

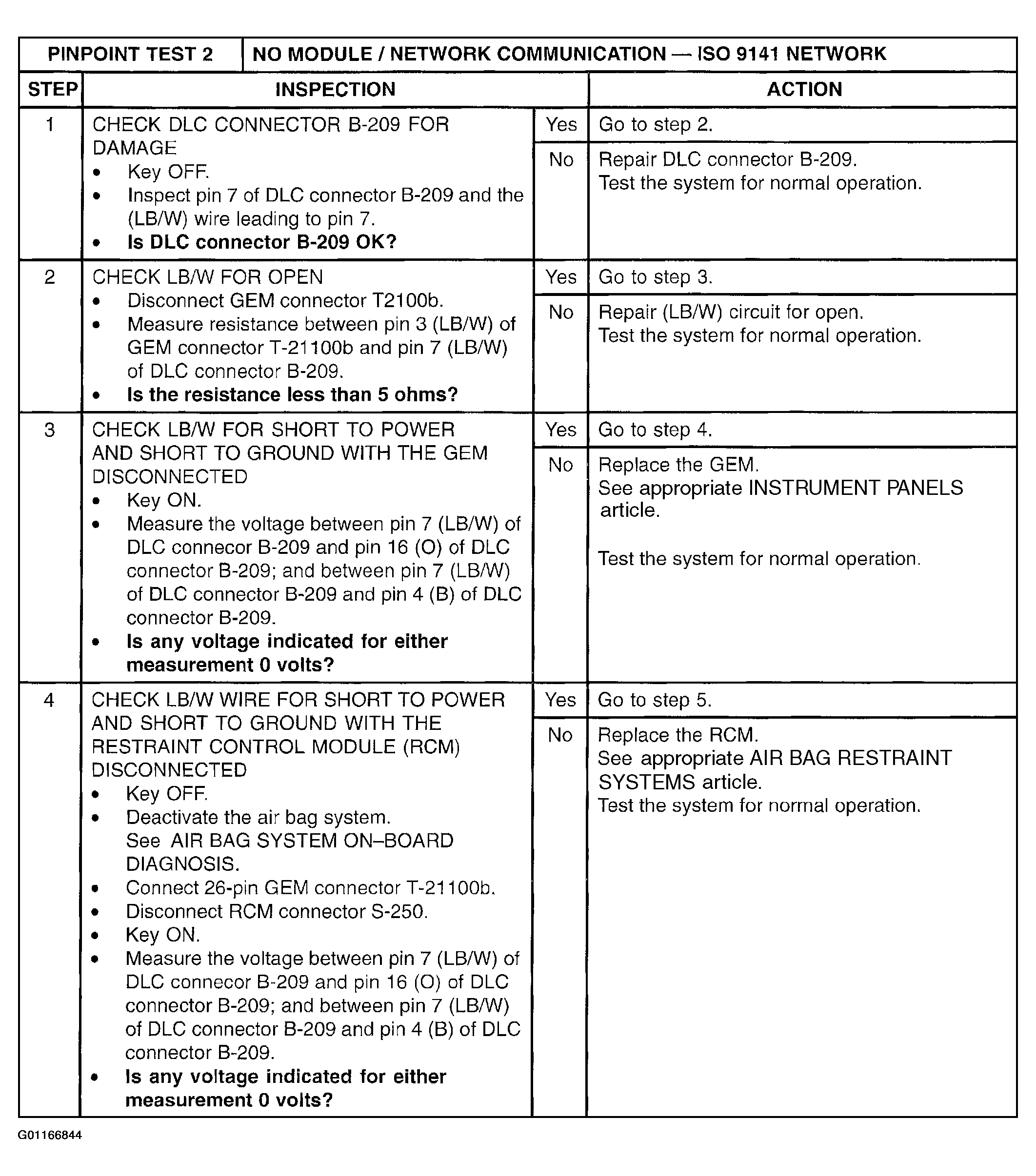

Fig 1: Pinpoint Test 2: No Module/Network Communication - ISO 9141 Network (Steps 1-4)

Courtesy of MAZDA MOTORS CORP.

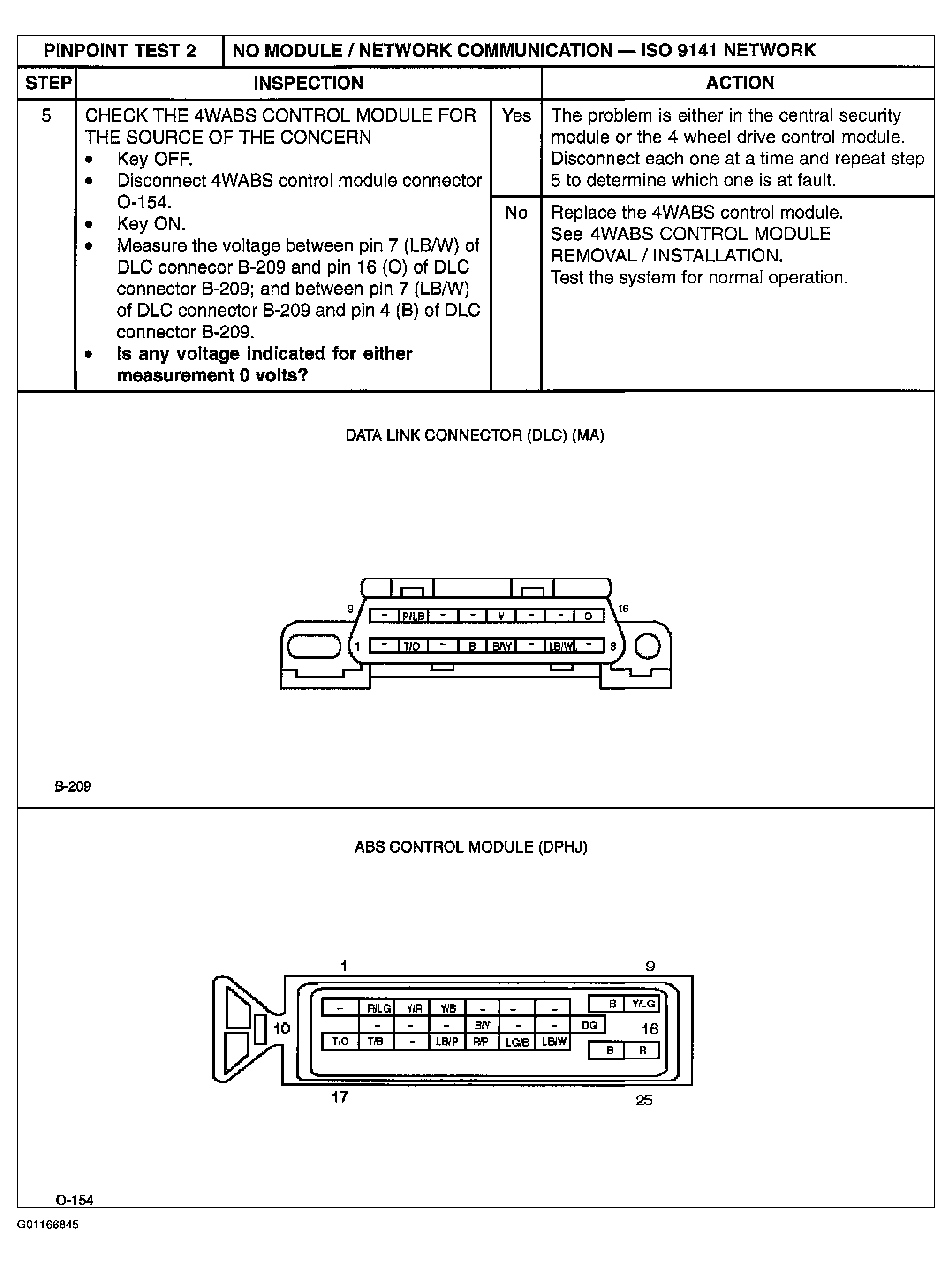

Fig 2: Pinpoint Test 2: No Module/Network Communication - ISO 9141 Network (Step 5 & Connectors B-209 & O-154 Terminal Identification)

Courtesy of MAZDA MOTORS CORP.

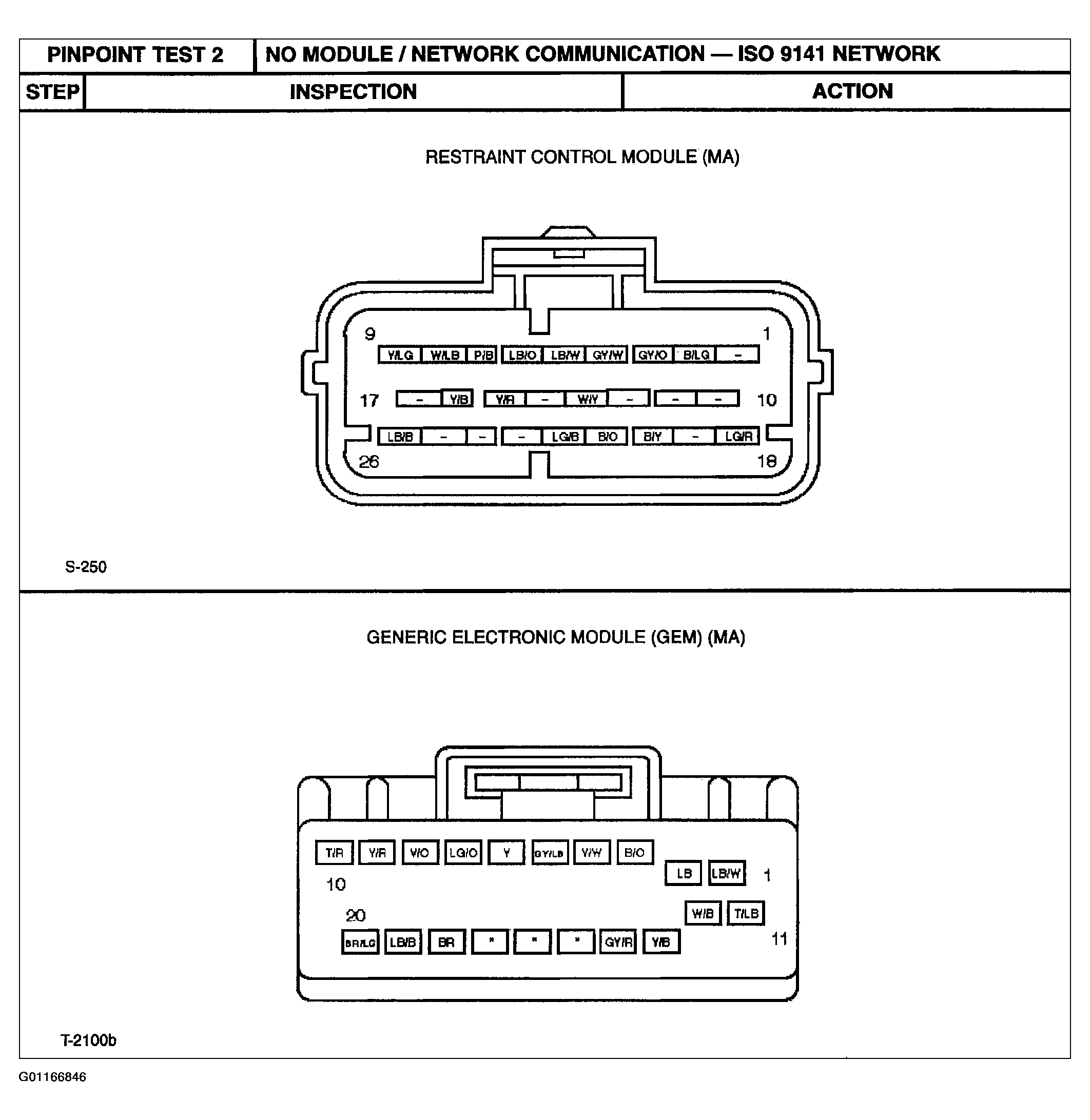

Fig 3: Pinpoint Test 2: Identifying Connectors S-250 & T2100b Terminals

Courtesy of MAZDA MOTORS CORP.
