Pinpoint Test 4: No Module/Network Communication - SCP Link

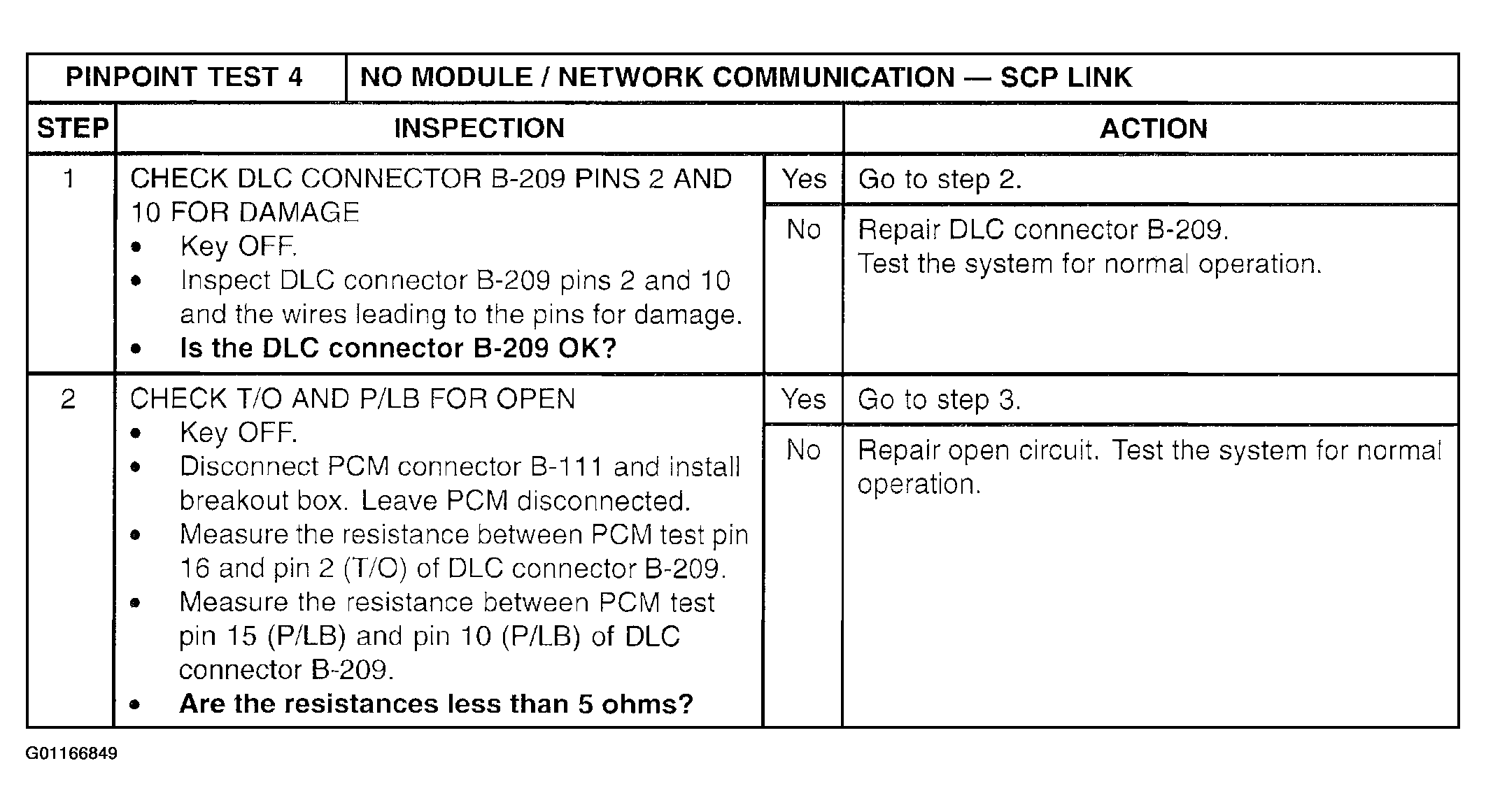

Fig 1: Pinpoint Test 4: No Module/Network Communication - SCP Link (Steps 1-2)

Courtesy of MAZDA MOTORS CORP.

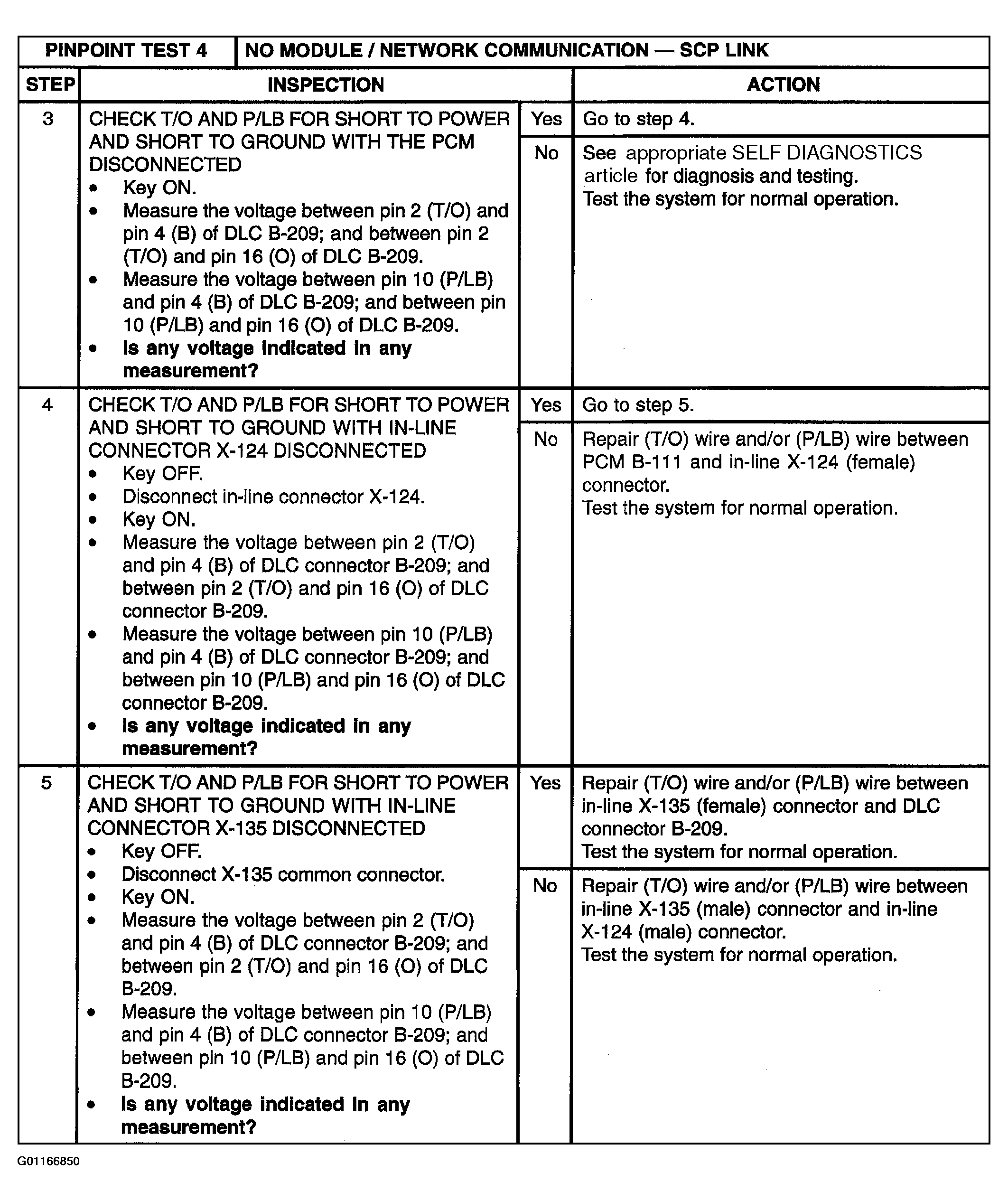

Fig 2: Pinpoint Test 4: No Module/Network Communication - SCP Link (Steps 3-5)

Courtesy of MAZDA MOTORS CORP.

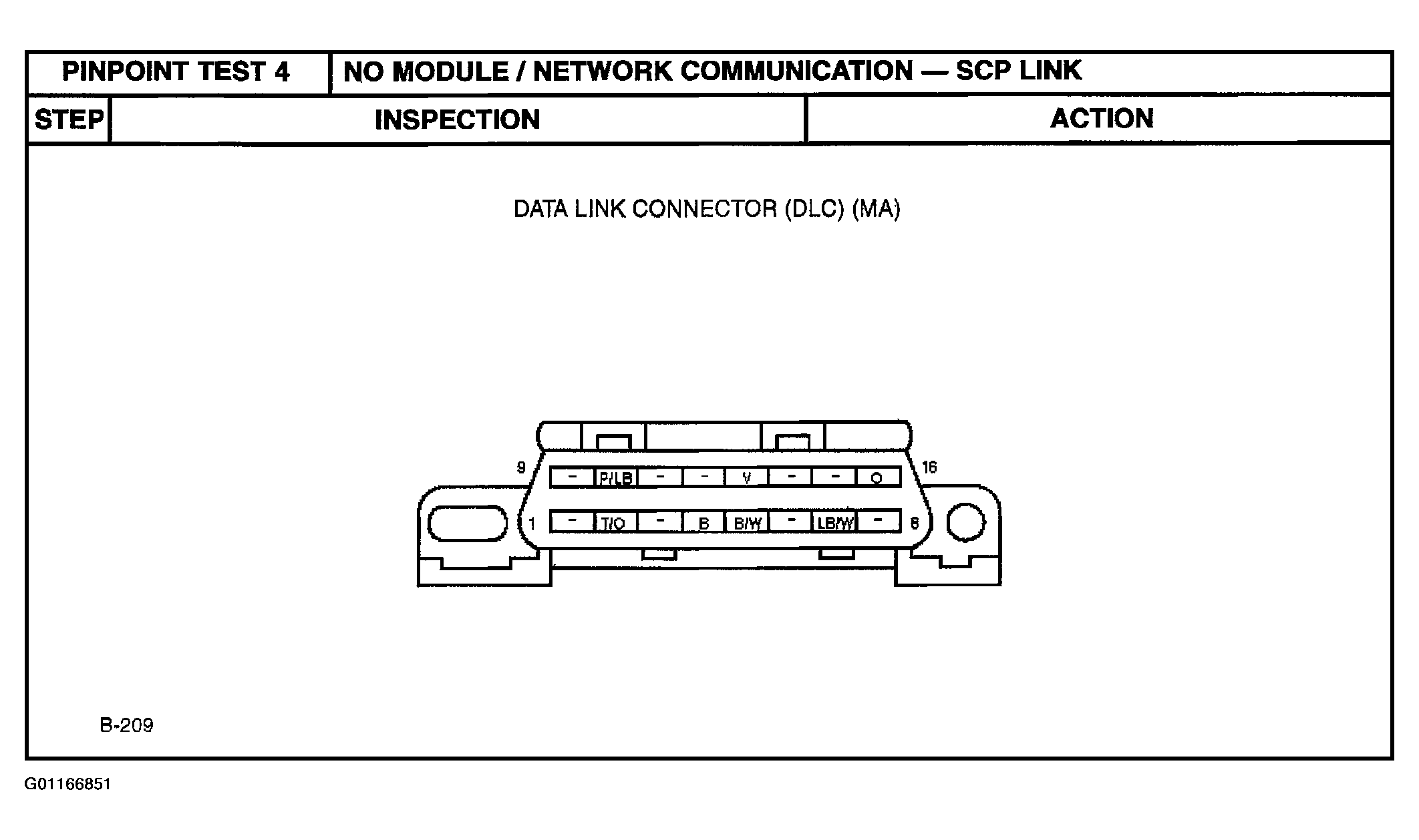

Fig 3: Pinpoint Test 4: Identifying Connector B-209 Terminals

Courtesy of MAZDA MOTORS CORP.

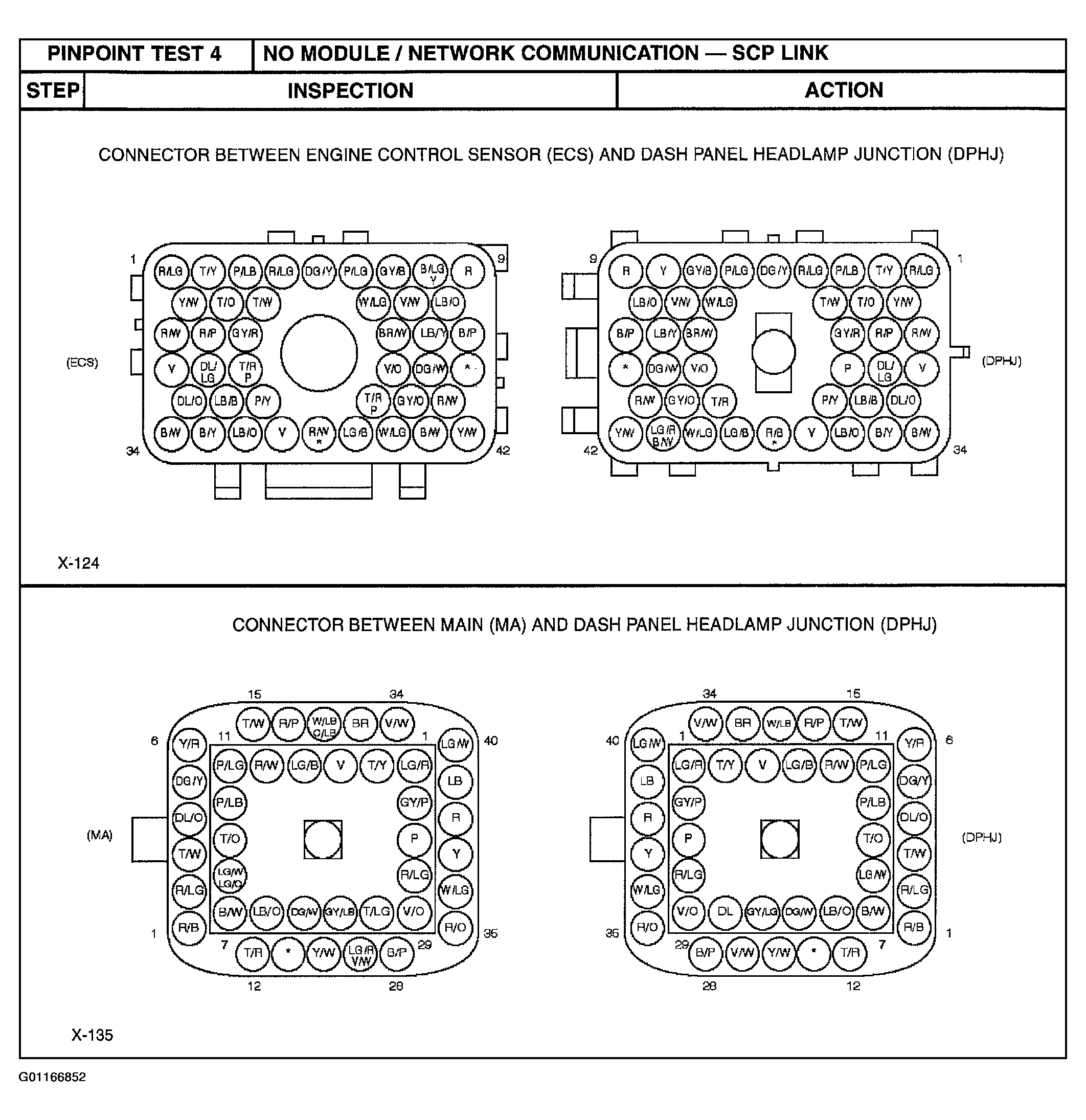

Fig 4: Pinpoint Test 4: Identifying Connectors X-124 & X-135 Terminals

Courtesy of MAZDA MOTORS CORP.
