Center Panel Module Removal Note

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Pull the center panel module toward you, then disengage clips A from the dashboard, and remove the center panel module.

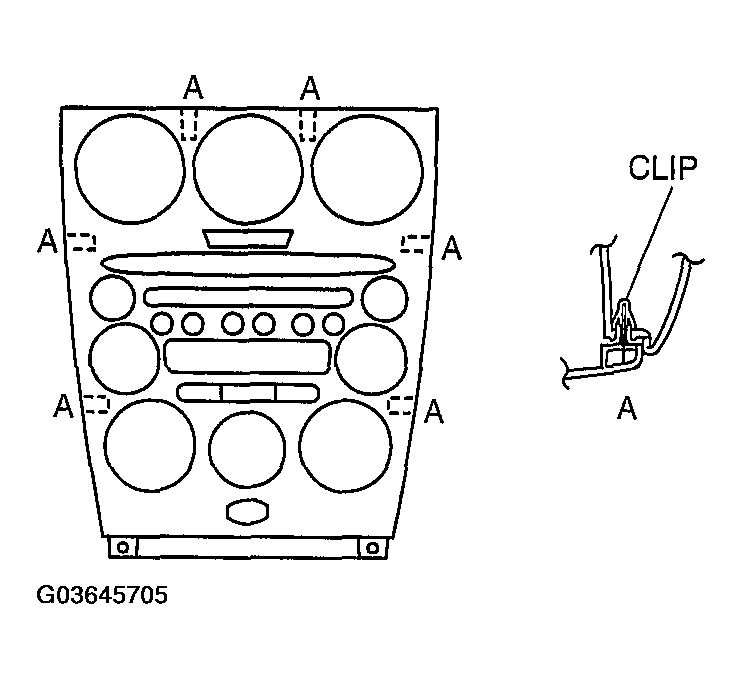

Fig 1: Identifying Location Of Clips A
Courtesy of MAZDA MOTORS CORP.
