Home >> Mazda >> 2002 >> B2300 Automatic >> Repair and Diagnosis >> Suspension >> Front Suspension System >> Specifications

Front Suspension System: Specifications

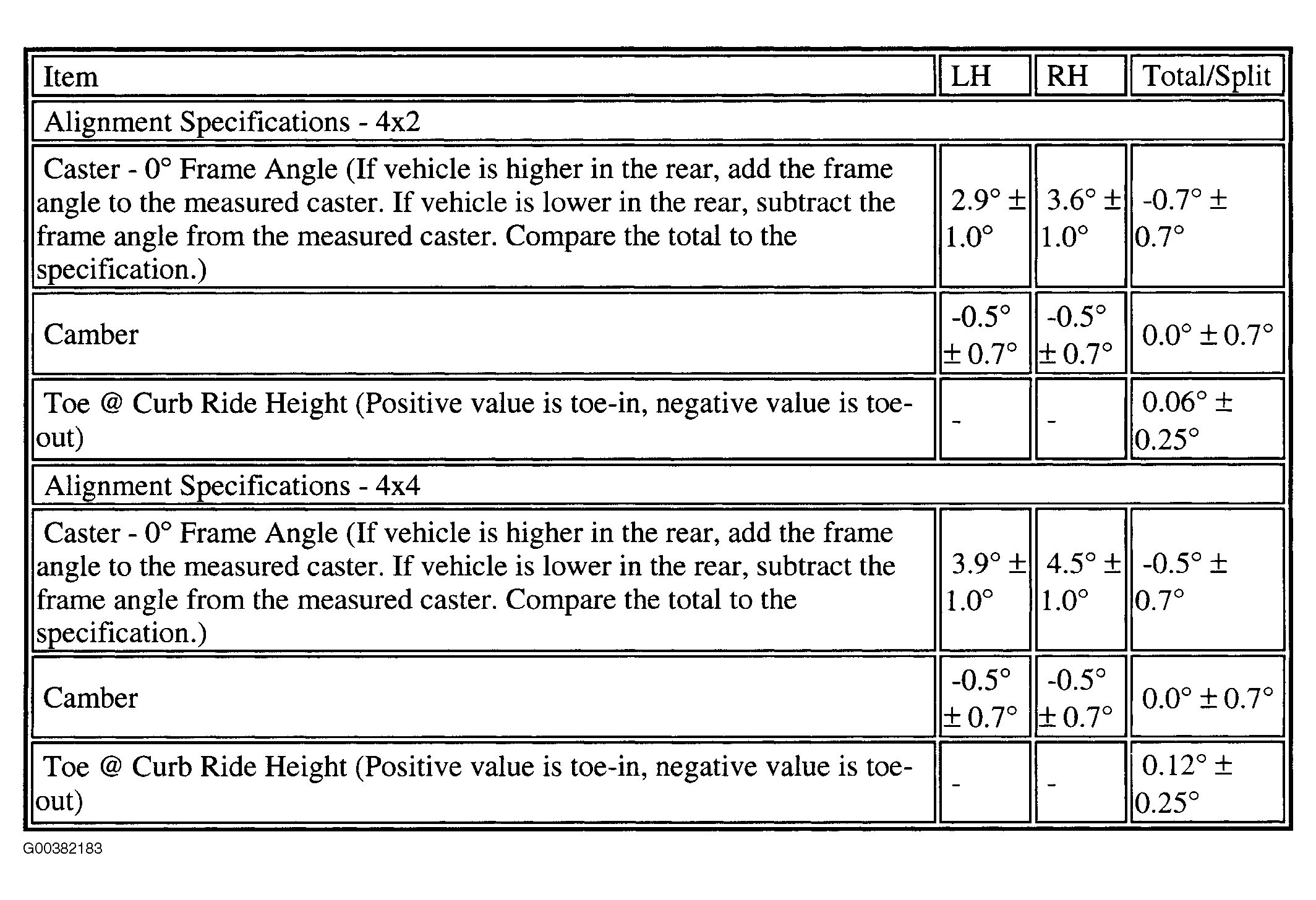

Fig 1: Specifications - Suspension

G00382183

Courtesy of MAZDA MOTORS CORP.

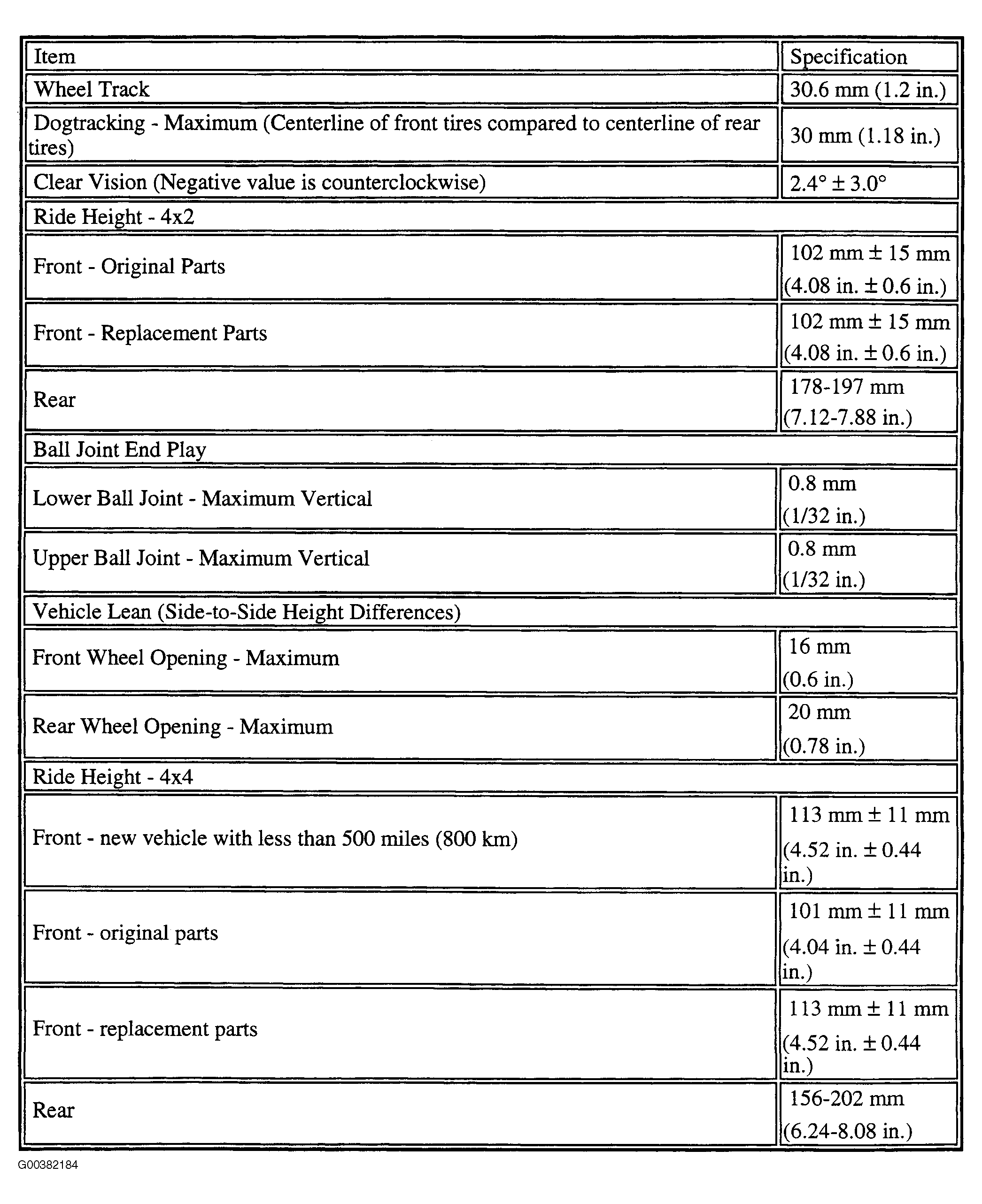

Fig 2: Specifications - General

G00382184

Courtesy of MAZDA MOTORS CORP.
