Spindle Installation

CAUTION: Always install the cotter pin into the lower ball joint castellated nut from outboard to inboard, with the fingers bent together at a right angle. Failure to do so will result in damage to the wheel and tire assembly.

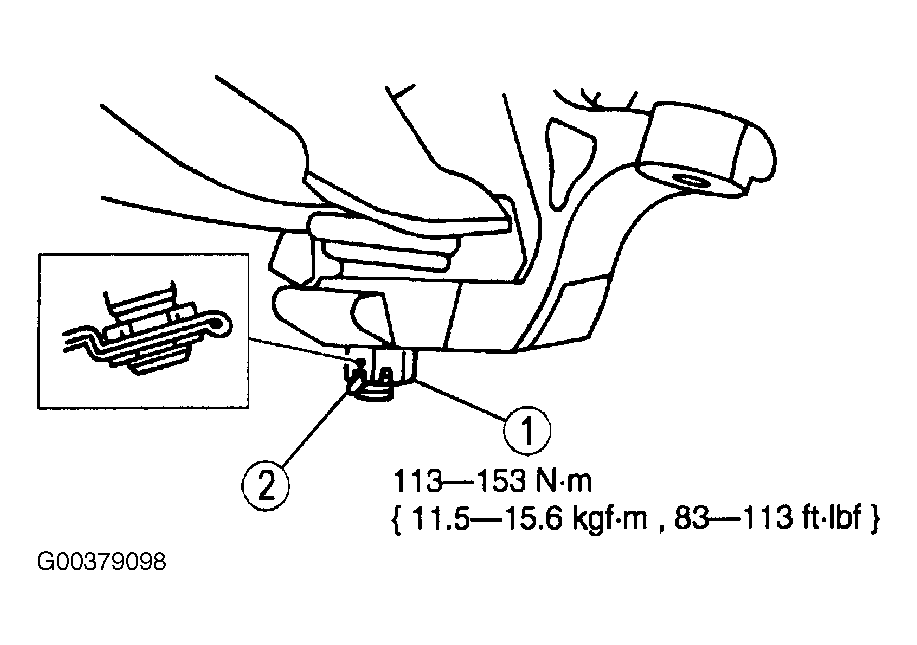

Install the lower ball joint.
1. Install the castellated nut.
2. Install a new cotter pin.

  Fig 1: Installing Castellated Nut & New Cotter Pin
  Courtesy of MAZDA MOTORS CORP.
Install the upper ball joint.
1. Install the ball joint into the spindle.
2. Install a new pinch bolt and nut. See Figure .
Remove the coil spring compressor tool or equivalent.
CAUTION: Always install the cotter pin into the tie rod castellated nut from outboard to inboard, with the fingers bent together at a right angle. Failure to do so will result in damage to the wheel and tire assembly.

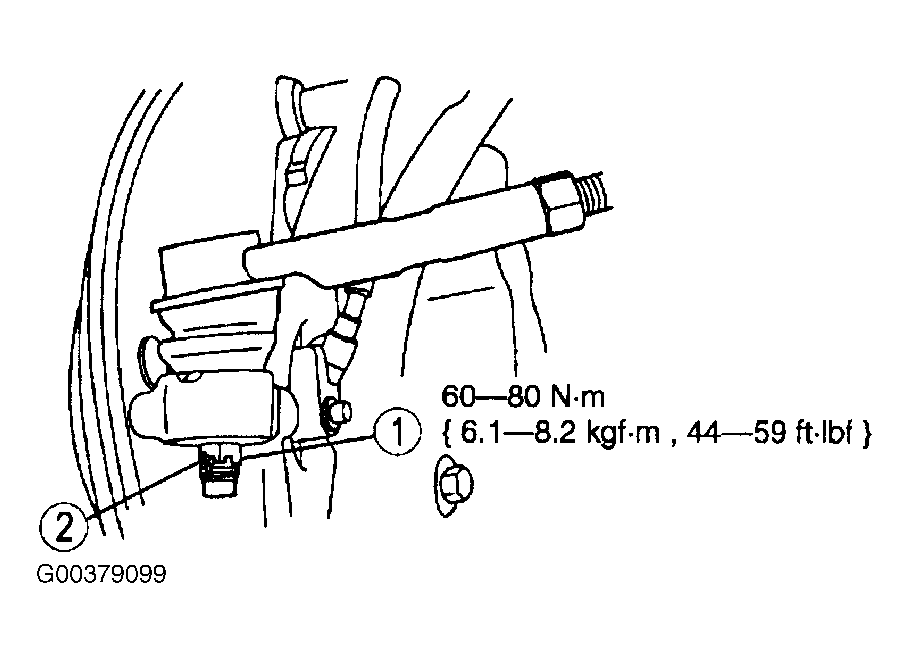

Install the tie rod castellated nut.
1. Install the castellated nut.
2. Install a new cotter pin.

  Fig 2: Installing Tie Rod Castellated Nut
  Courtesy of MAZDA MOTORS CORP.

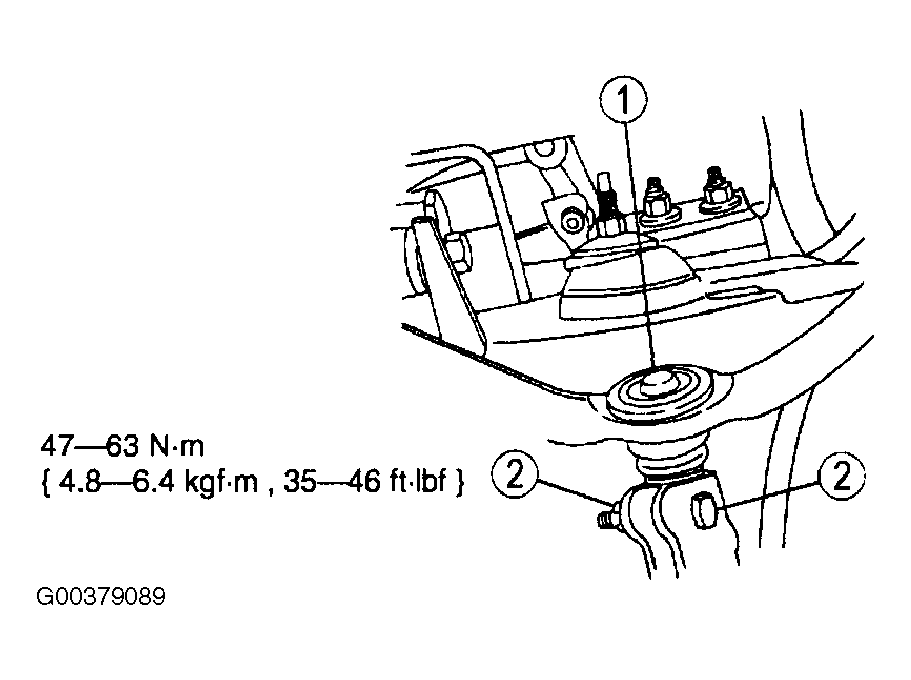

Install the front shock absorber and the two lower nuts. See Figure .
Install the upper shock absorber bushing and nut/washer assembly. See Figure .
Install the front disc brake rotor shield. See FRONT BRAKE ROTOR REMOVAL & INSTALLATION.
Install the tire and wheel assembly.
Inspect and adjust the front end alignment. See WHEEL ALIGNMENT SPECIFICATIONS .
