Module Communication Index: Notes

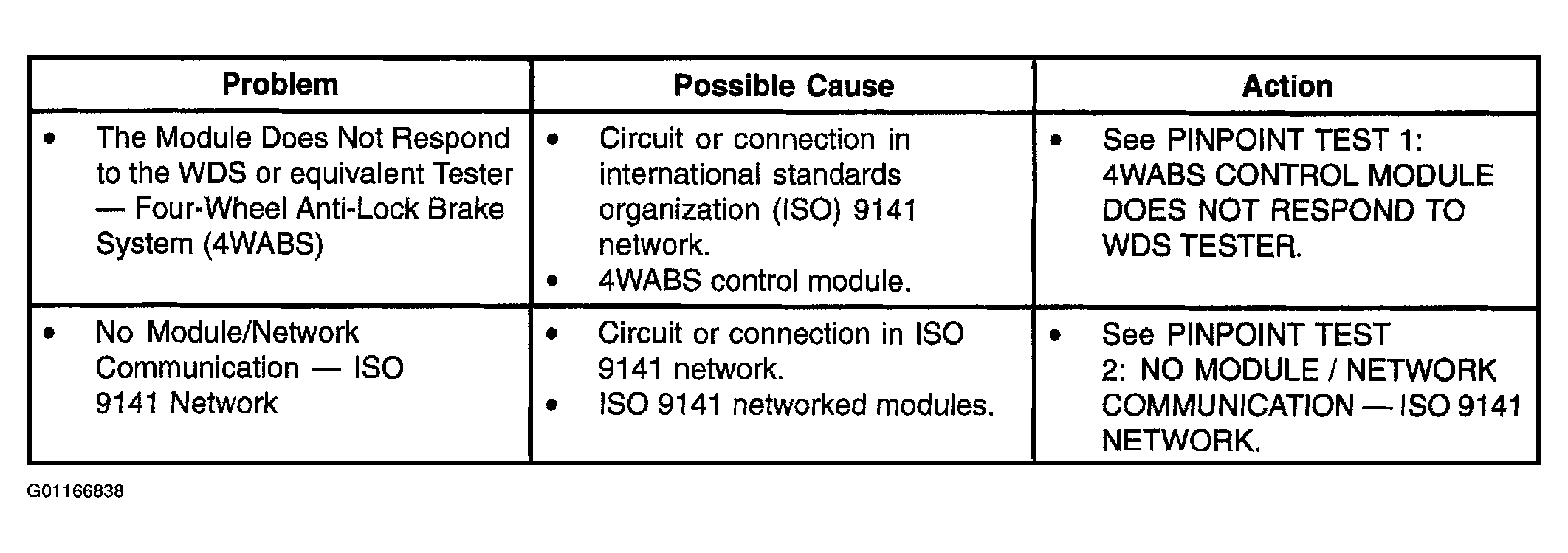

Fig 1: Module Communication Index (1 Of 2)

G01166838

Courtesy of MAZDA MOTORS CORP.

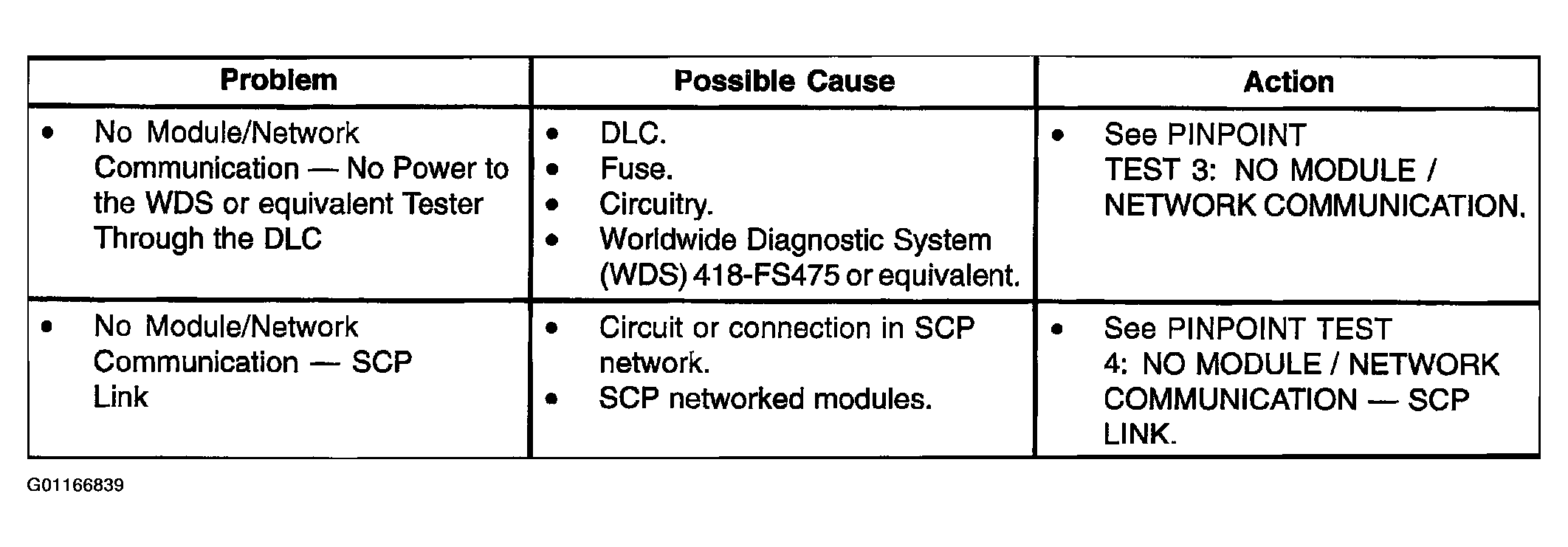

Fig 2: Module Communication Index (2 Of 2)

G01166839

Courtesy of MAZDA MOTORS CORP.
