Theft Deterrent Control Module

Locate theft deterrent control module under left side of dash. Remove theft deterrent control module from bracket without disconnecting connectors. Measure voltages by backprobing terminals in connectors as indicated. Disconnect theft deterrent control module connectors before checking continuity at terminals B, N, O, P and T. If voltage measurements and continuity checks are not as specified, check component and wiring. If component and wiring are okay, replace theft deterrent control module. See THEFT DETERRENT CONTROL MODULE  under REMOVAL & INSTALLATION.

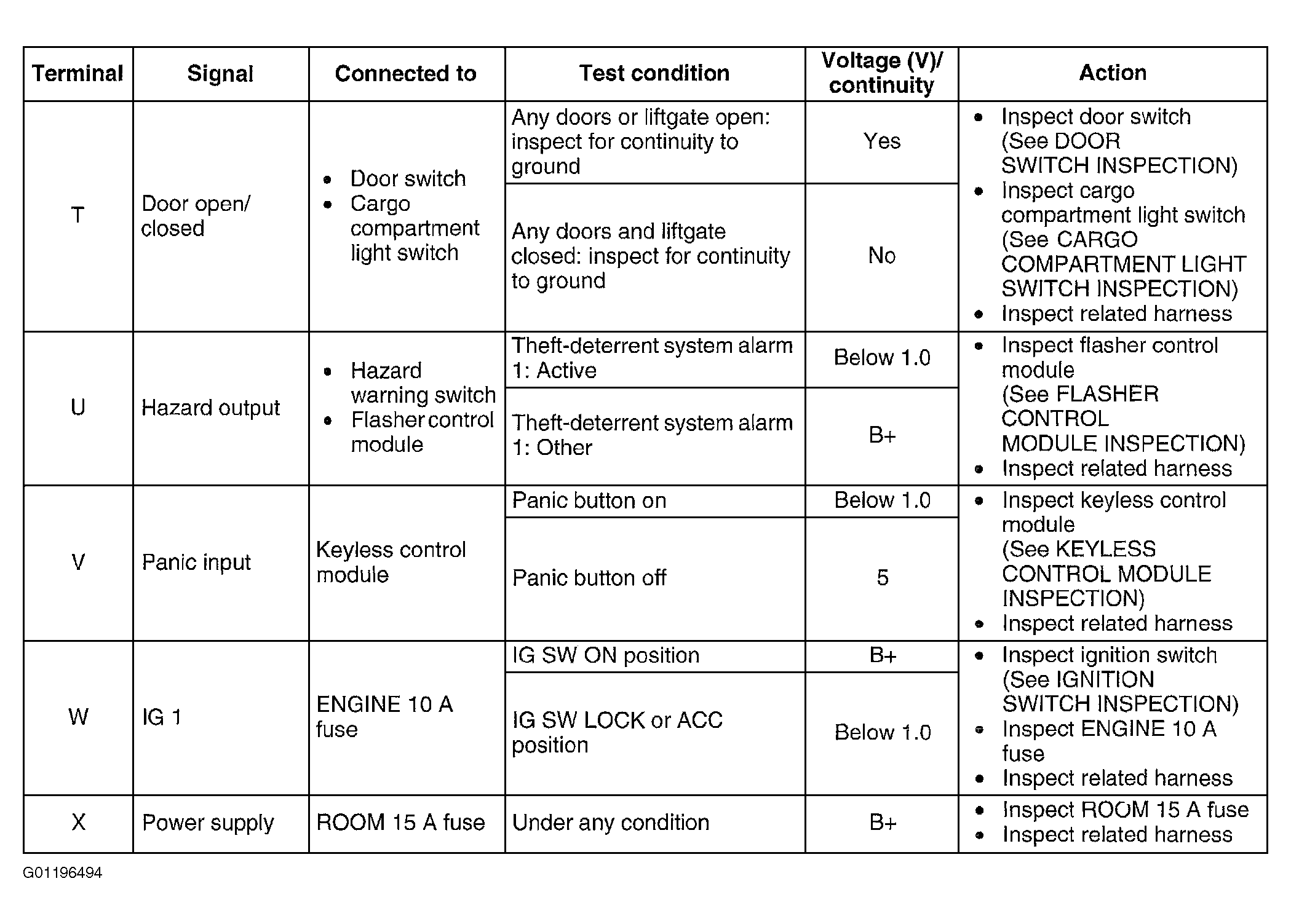

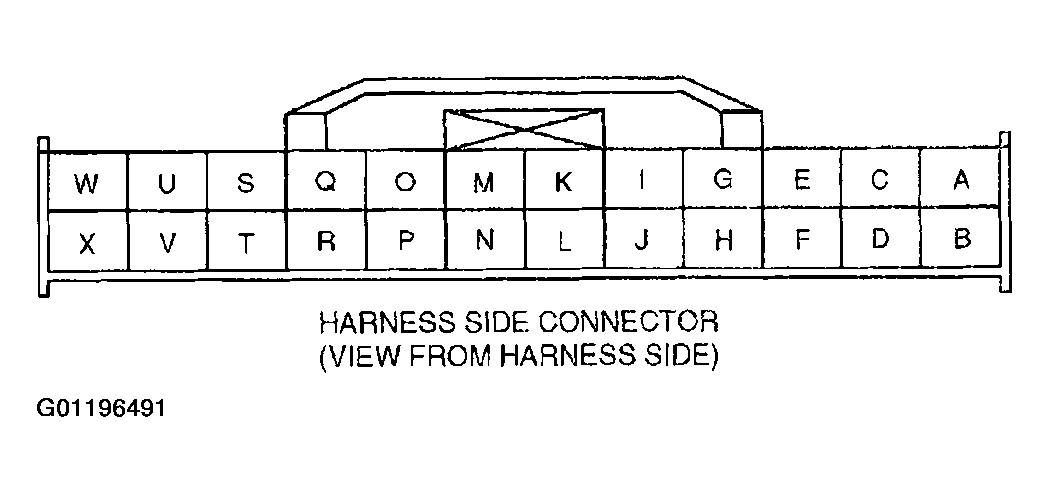

Fig 1: Identifying Theft Deterrent Control Module Connector Terminals

Courtesy of MAZDA MOTORS CORP.

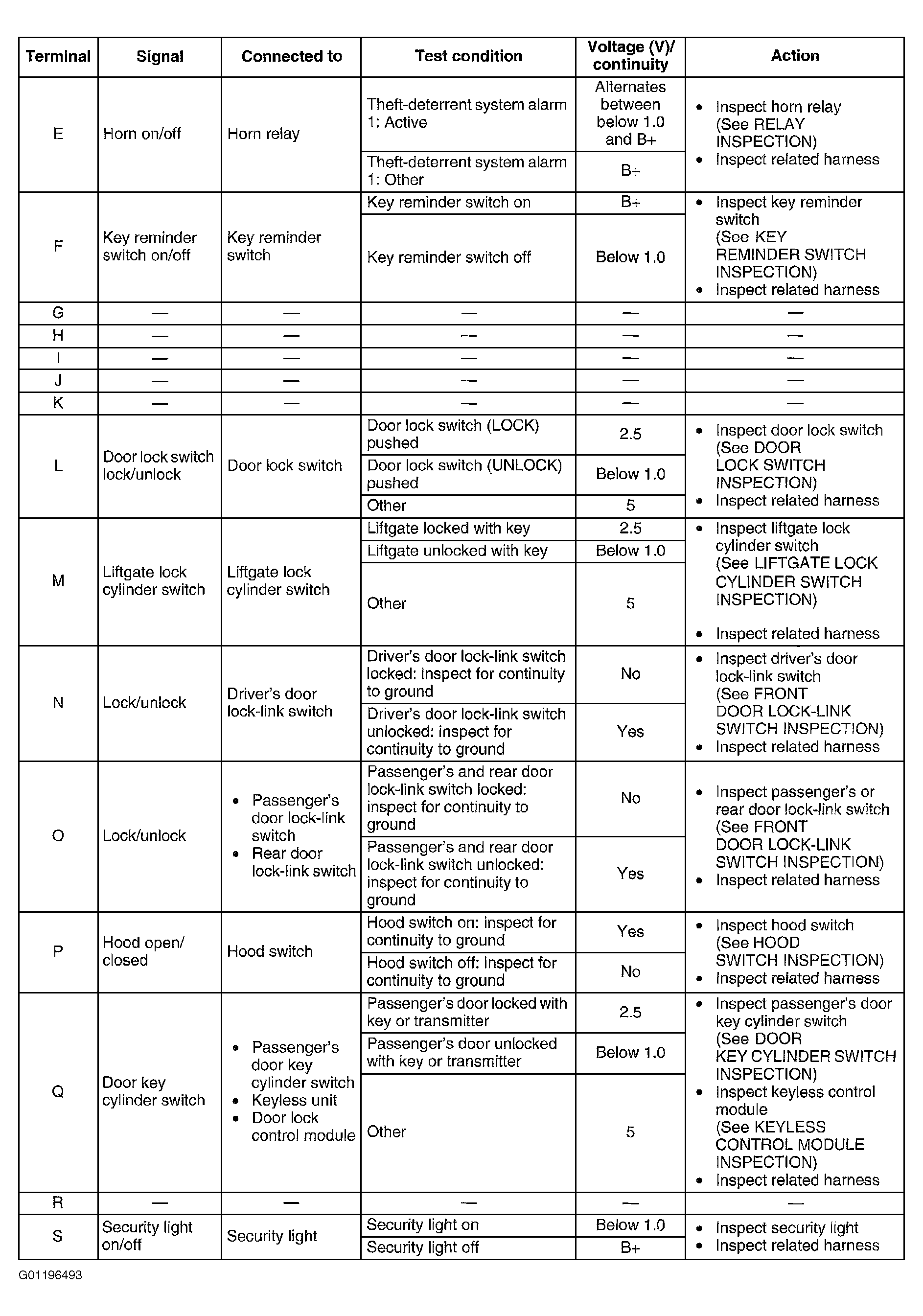

Fig 2: Testing Theft Deterrent Control Module (1 of 3)

Courtesy of MAZDA MOTORS CORP.

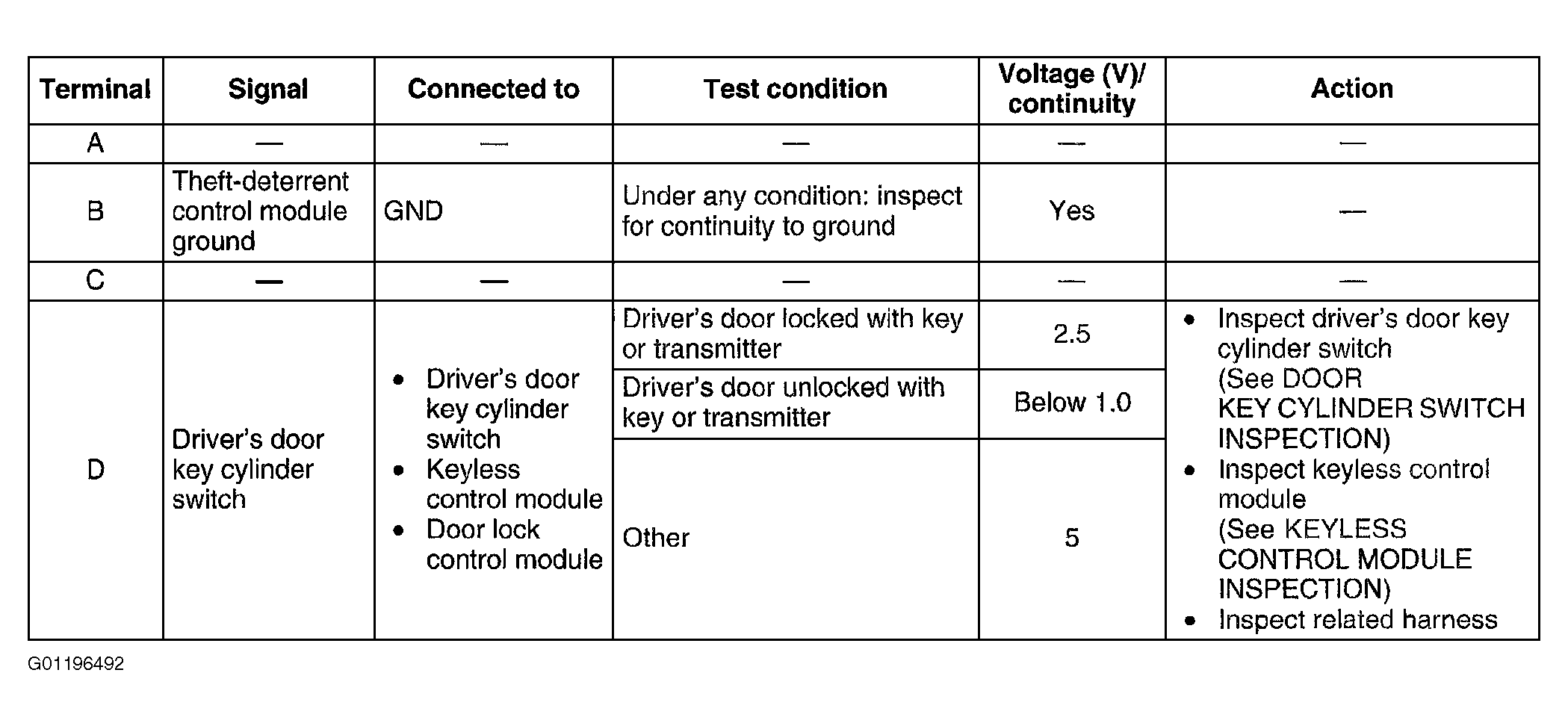

Fig 3: Testing Theft Deterrent Control Module (2 of 3)

Courtesy of MAZDA MOTORS CORP.

Fig 4: Testing Theft Deterrent Control Module (3 of 3)

Courtesy of MAZDA MOTORS CORP.
