Easy Closure Control Module Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove the sliding door trim.
  3. Remove the screws, and remove the easy closure control module.
  4. Disconnect the easy closure control module connector.
  5. Install in the reverse order of removal.

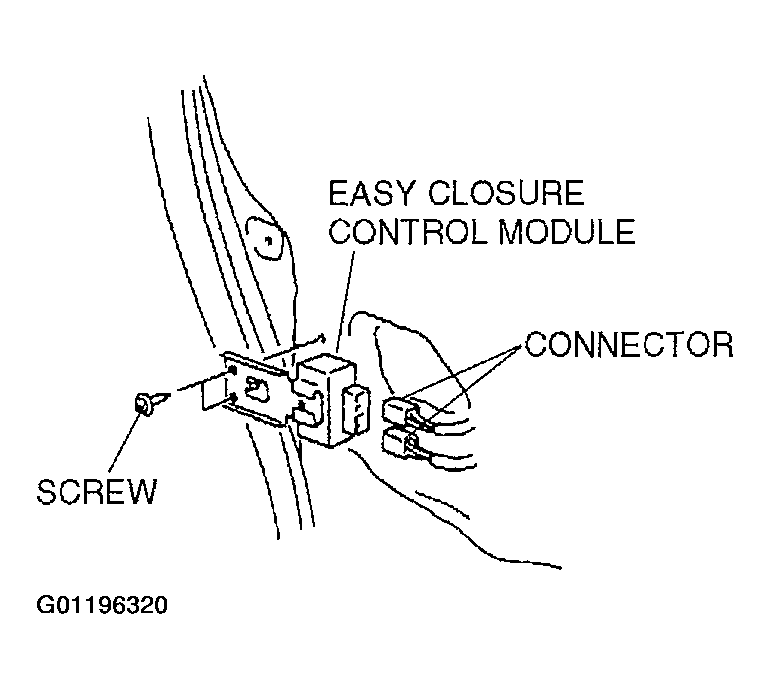

    Fig 1: Removing Easy Closure Control Module
    G01196320Courtesy of MAZDA MOTORS CORP.
