Console Disassembly/Assembly

  1. Disassemble in the order indicated in the illustration.

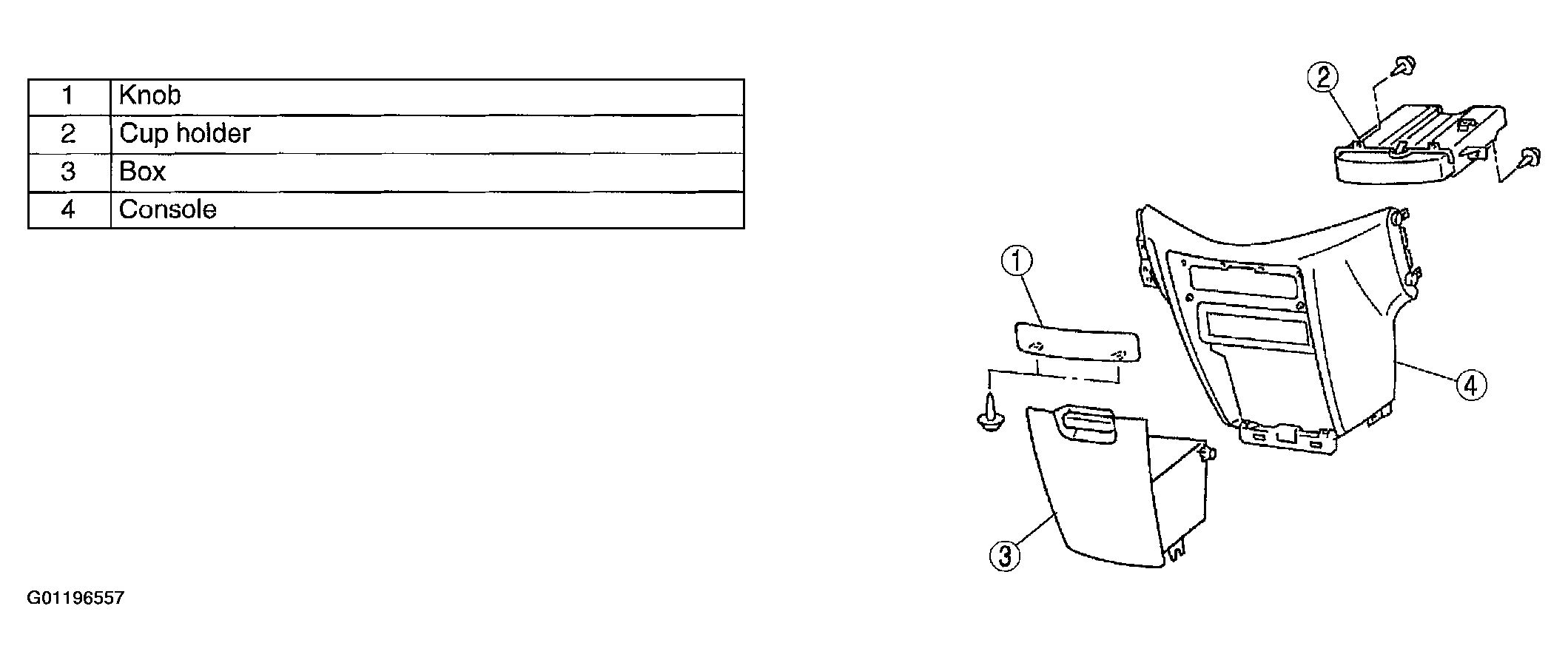

    Fig 1: Disassembling Console
    G01196557Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
