Mat Set End Plate Removal/Installation

1. Turn the weatherstrip over.
2. Disengage clips A and pins B using a fastener remover, and remove the mat set end plate.
3. Install in the reverse order of removal.

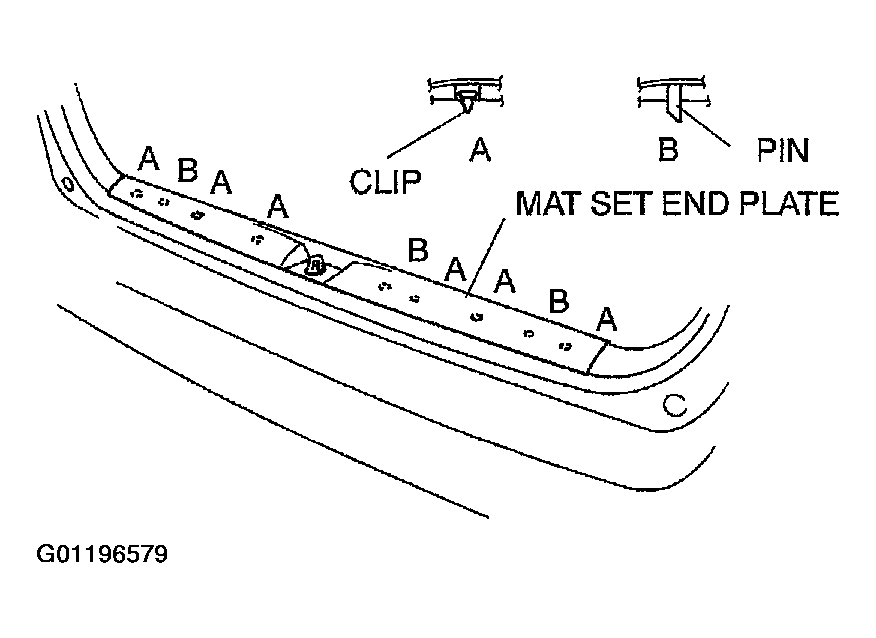

Fig 1: Removing Mat Set End Plate

Courtesy of MAZDA MOTORS CORP.
