Power Outside Mirror Switch Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the meter hood. See METER HOOD REMOVAL/INSTALLATION .
  3. Remove the screws, and remove the power outside mirror switch.
  4. Disconnect the connector.
  5. Install in the reverse order of removal.

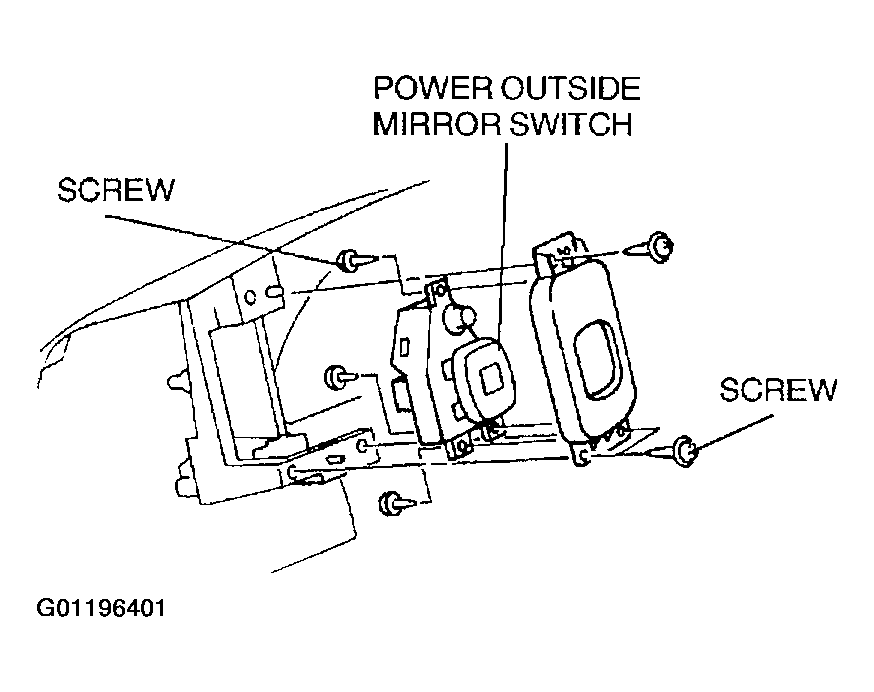

Fig 1: Removing Power Outside Mirror Switch
G01196401Courtesy of MAZDA MOTORS CORP.
