Power Window Motor Assembly Note

NOTE:

• The cable must be held to install the drum; install with another person.

1. Press the cable as shown to remove any slack (1).
2. Install the drum to the power window motor.

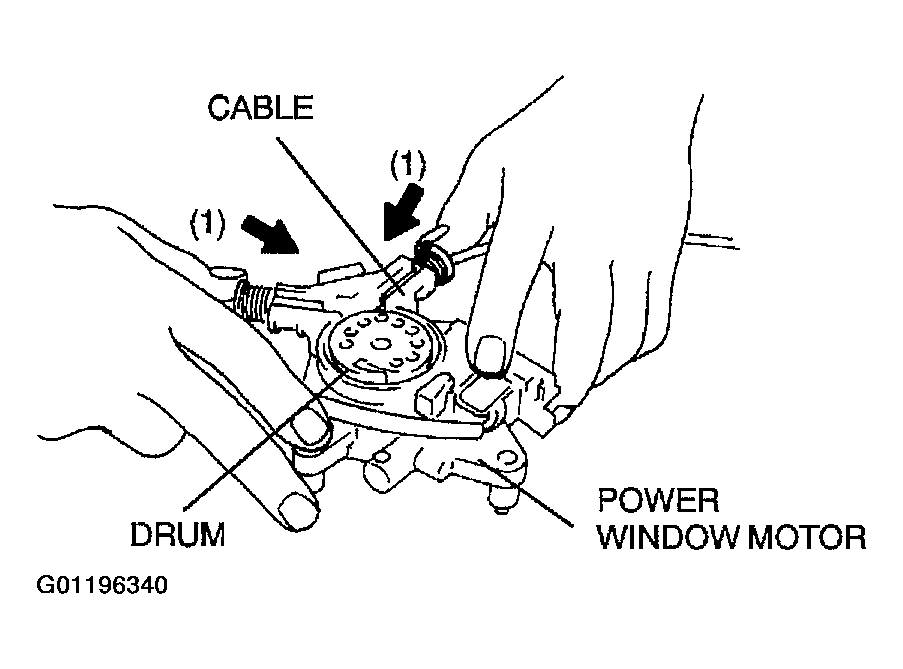

Fig 1: Installing Drum

Courtesy of MAZDA MOTORS CORP.
