Front Seat Disassembly/Assembly: Notes

WARNING: Deactivate air bag system before performing any service operation. See AIR BAG RESTRAINT SYSTEMS article. DO NOT apply electrical power to any component on steering column without first deactivating air bag system. Air bag may deploy.

1. Disassemble in the order indicated in the illustration.
2. Assemble in the reverse order of disassembly.

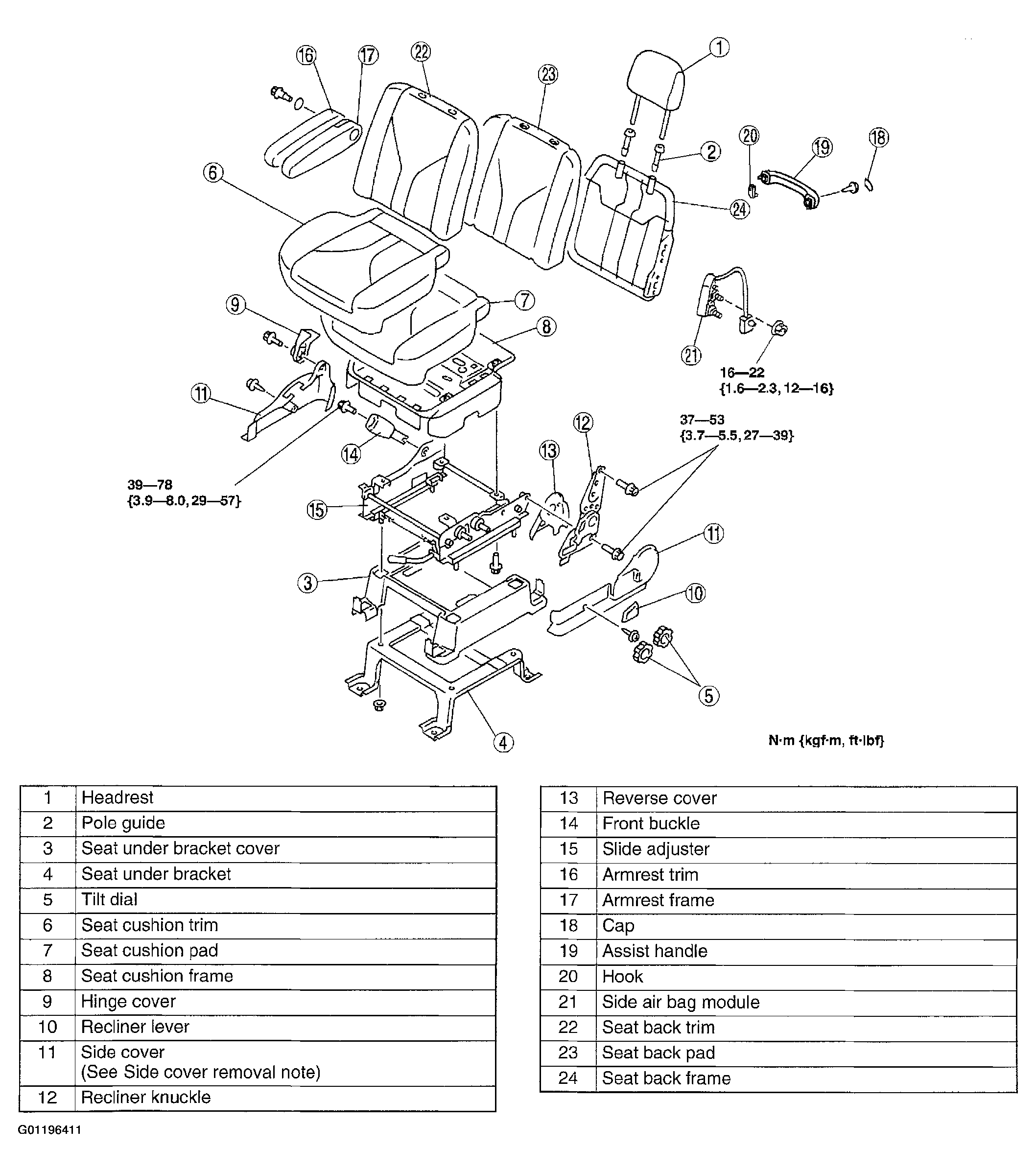

Fig 1: Exploded View Non-Powered Drivers Seat

Courtesy of MAZDA MOTORS CORP.
