Side Cover Removal Note

  1. Remove the screw.
  2. Lift the side cover up in the direction shown by the arrow, then unhook it from the recliner knuckle.

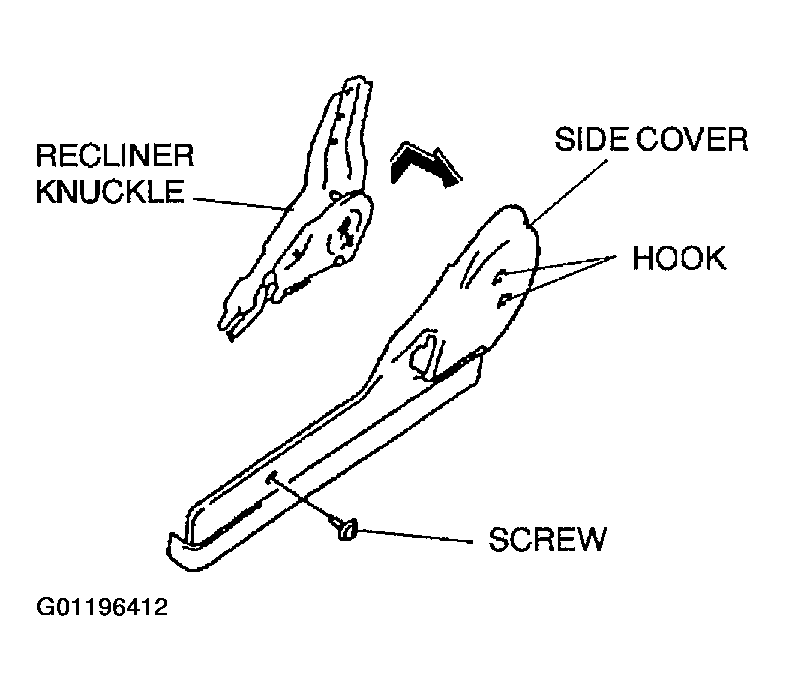

Fig 1: Removing Seat Side Cover
G01196412Courtesy of MAZDA MOTORS CORP.

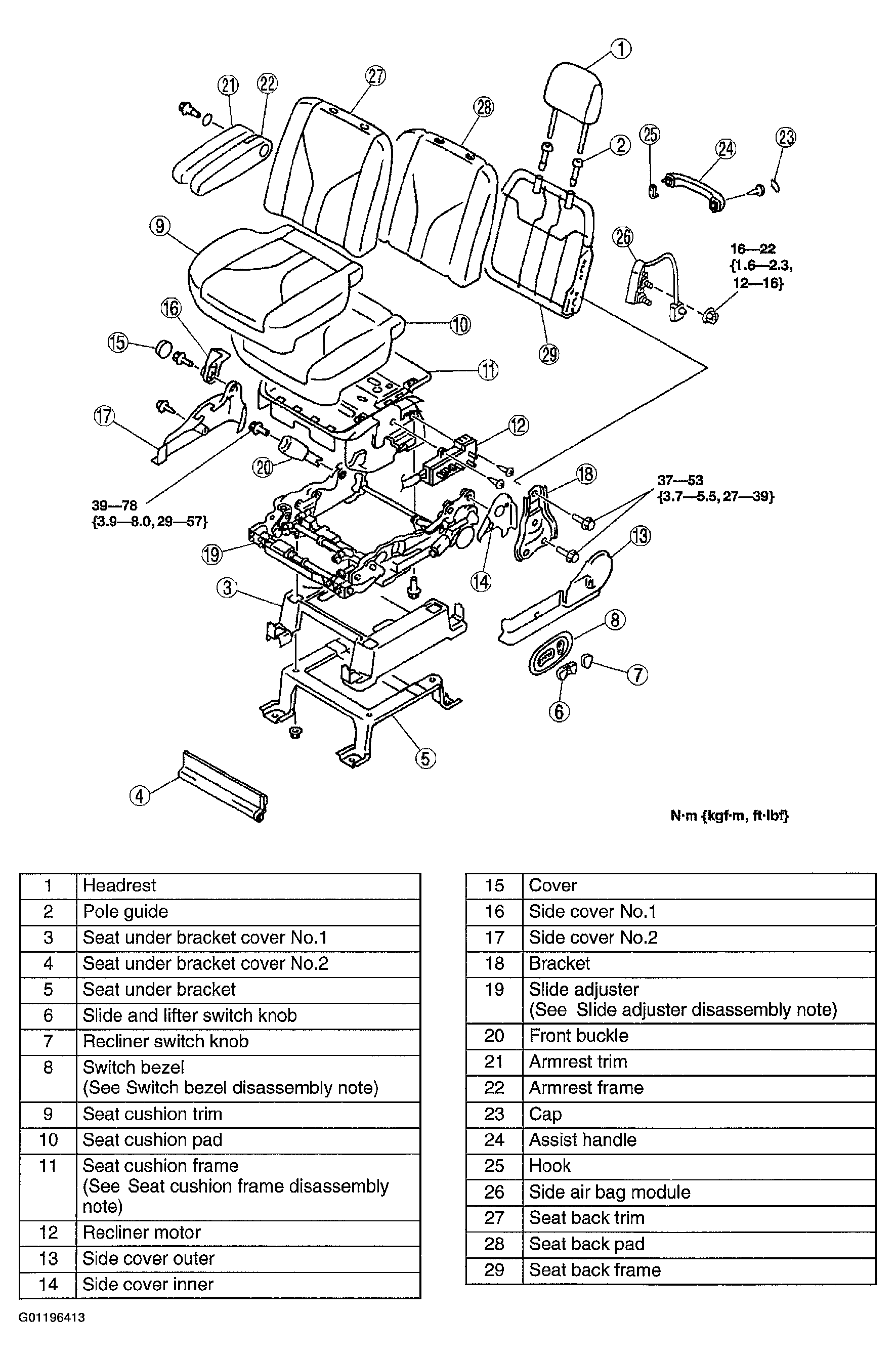

Fig 2: Exploded View Powered Drivers Seat
G01196413Courtesy of MAZDA MOTORS CORP.
