Switch Bezel Disassembly Note

  1. Insert a tape-wrapped screwdriver as shown in the figure, and pull up to remove the clips.

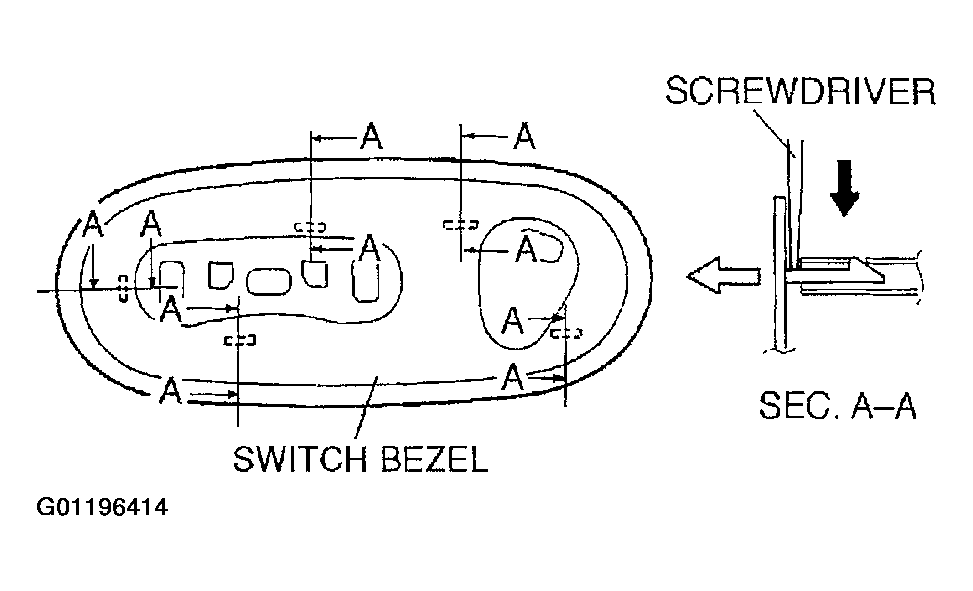

    Fig 1: Disassembling Switch Bezel
    G01196414Courtesy of MAZDA MOTORS CORP.
