Second-Row Seat Disassembly/Assembly

  1. Disassemble in the order indicated in the table.
  2. Assemble in the reverse order of disassembly.

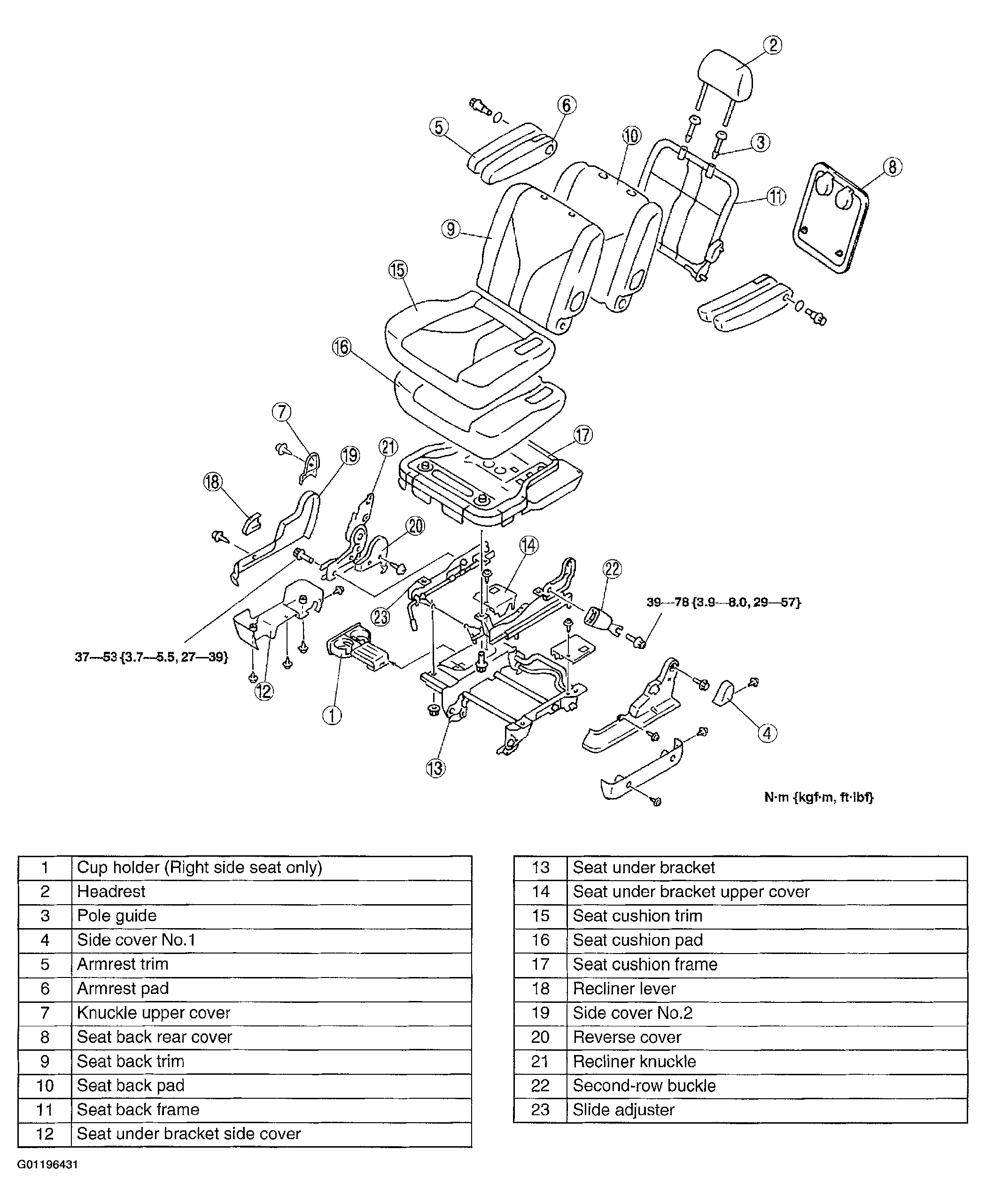

    Fig 1: Exploded View Second Row Seat
    G01196431Courtesy of MAZDA MOTORS CORP.
