Slide Motor Inspection

  1. Disconnect the slide motor connector.
  2. Inspect the slide motor operation when B+ is applied to the terminals as shown.
    • If not as specified, replace the seat cushion frame.

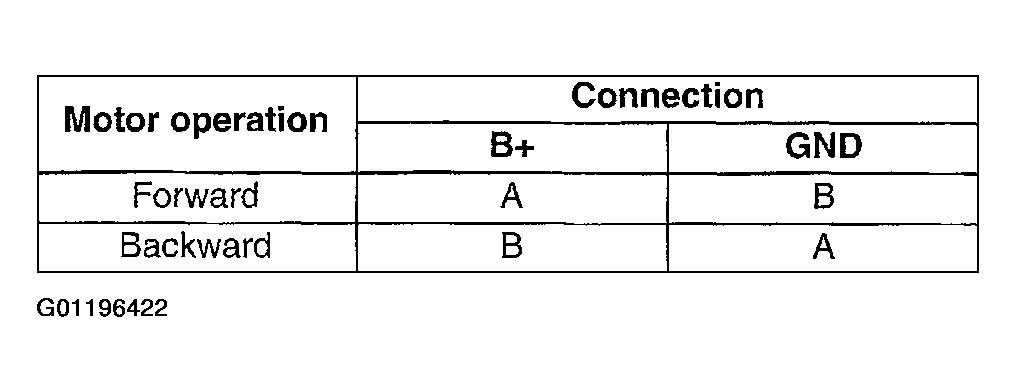

    Fig 1: Inspecting Slide Motor Functions
    G01196422Courtesy of MAZDA MOTORS CORP.

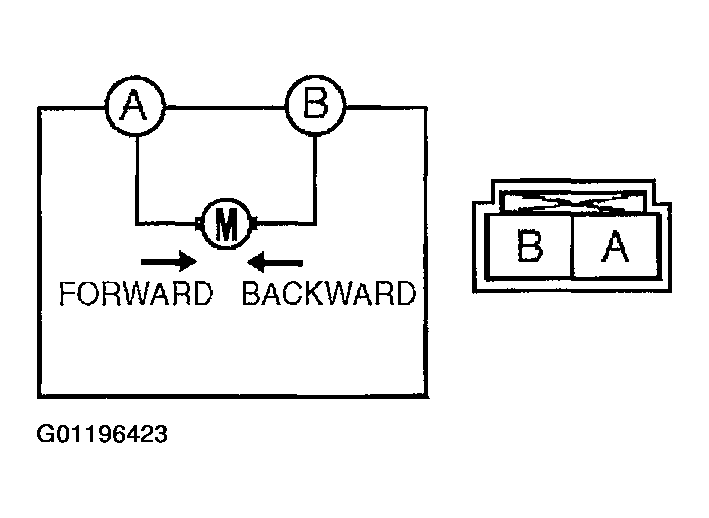

    Fig 2: Identifying Slide Motor Connector
    G01196423Courtesy of MAZDA MOTORS CORP.
