Abs HU/Cm Removal/Installation: Notes

CAUTION: Do not drop the ABS HU/CM. Replace it if it is subjected to an impact.

Remove the battery.
Remove the air cleaner.
Remove the air filter.
Remove the splash shield.
Remove in the order indicated in the illustration.

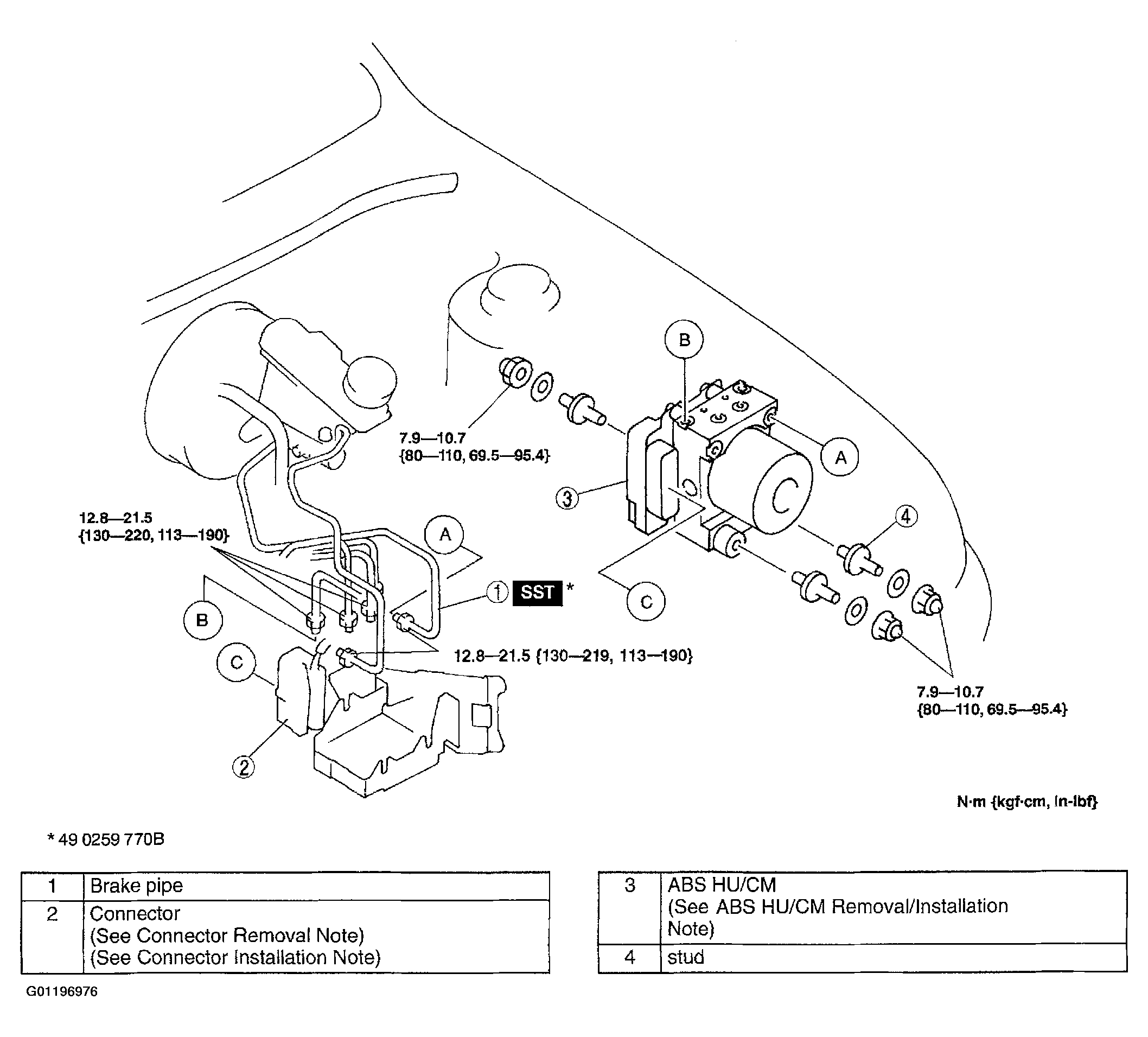

Fig 1: Removing/Installing ABS HU/CM
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
