Active Command Modes Table

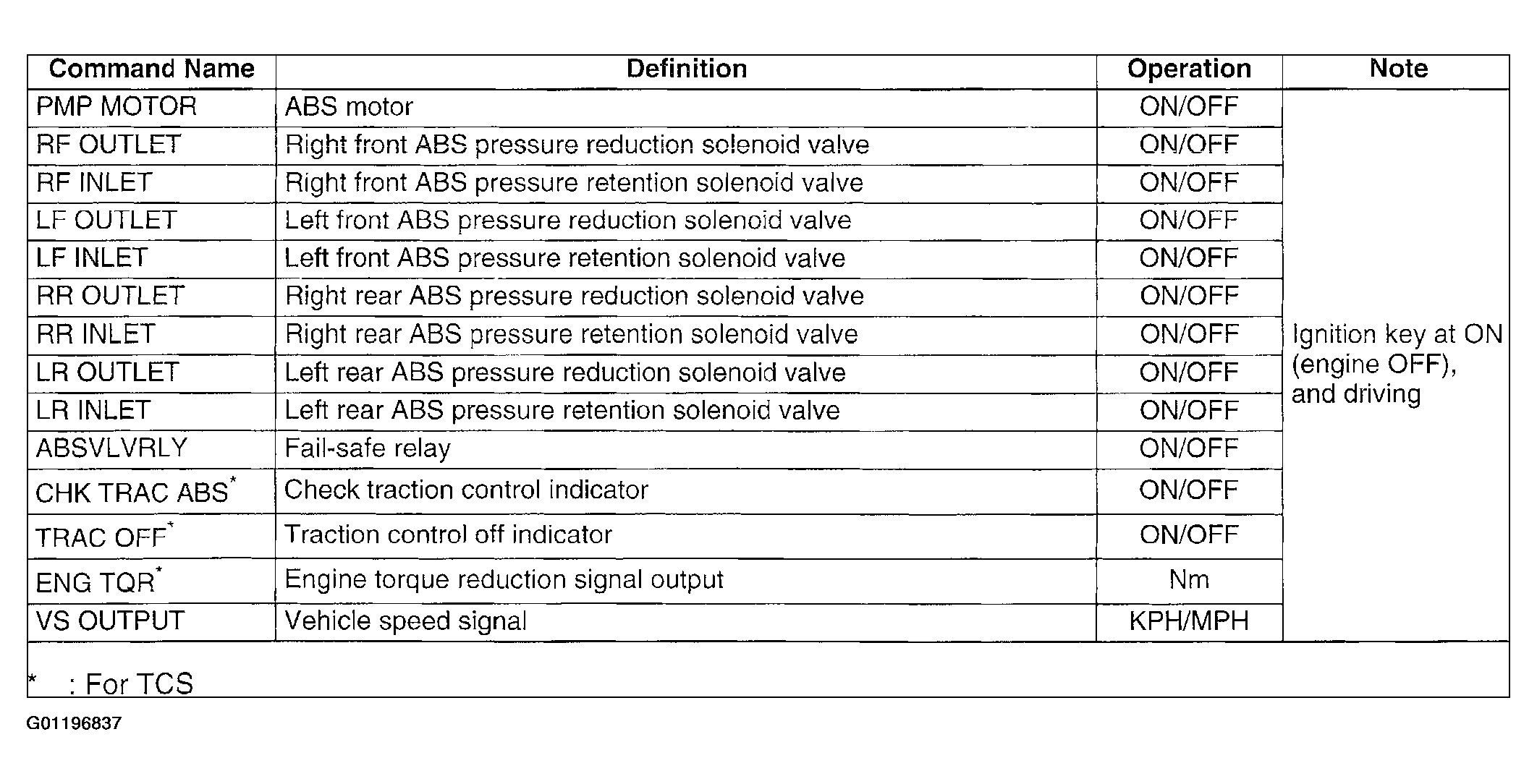

Fig 1: Active Command Modes Table

Courtesy of MAZDA MOTORS CORP.

NOTE: When operating the ABS motor and each valve forcibly, turn ABSVLVRLY on, and then each command on, ABSVLVRLY regulates the power supply for the ABS motor and eight valves.
