Hazard Switch

Place hazard switch in specified position and check for continuity between terminals. See HAZARD SWITCH TEST table. See Fig 1 . If continuity is not as specified, replace hazard switch. See under REMOVAL & INSTALLATION.

HAZARD SWITCH TEST

Switch Position

Continuity Between Terminals

Off

⁽¹⁾ F & B

D & B; ⁽¹⁾ A, C, I & K

⁽¹⁾	Terminals "H" and "J" are switch illumination circuit.

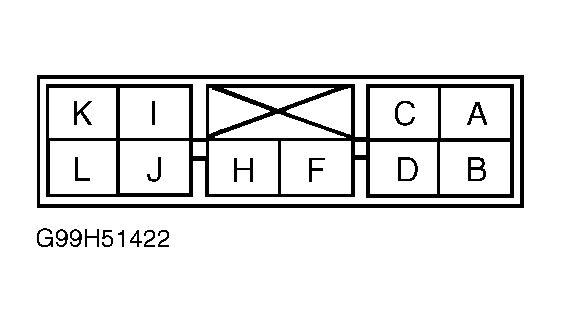

Fig 1: Identifying Hazard Switch Terminals

Courtesy of MAZDA MOTORS CORP.
