Oil Cooler Removal/Installation: Notes
- Disconnect the negative battery cable.
- Drain the engine coolant. (See COOLING SYSTEM SERVICE WARNINGS .) (See ENGINE COOLANT REPLACEMENT .)
- Remove the oil filter. (See OIL FILTER REPLACEMENT .)

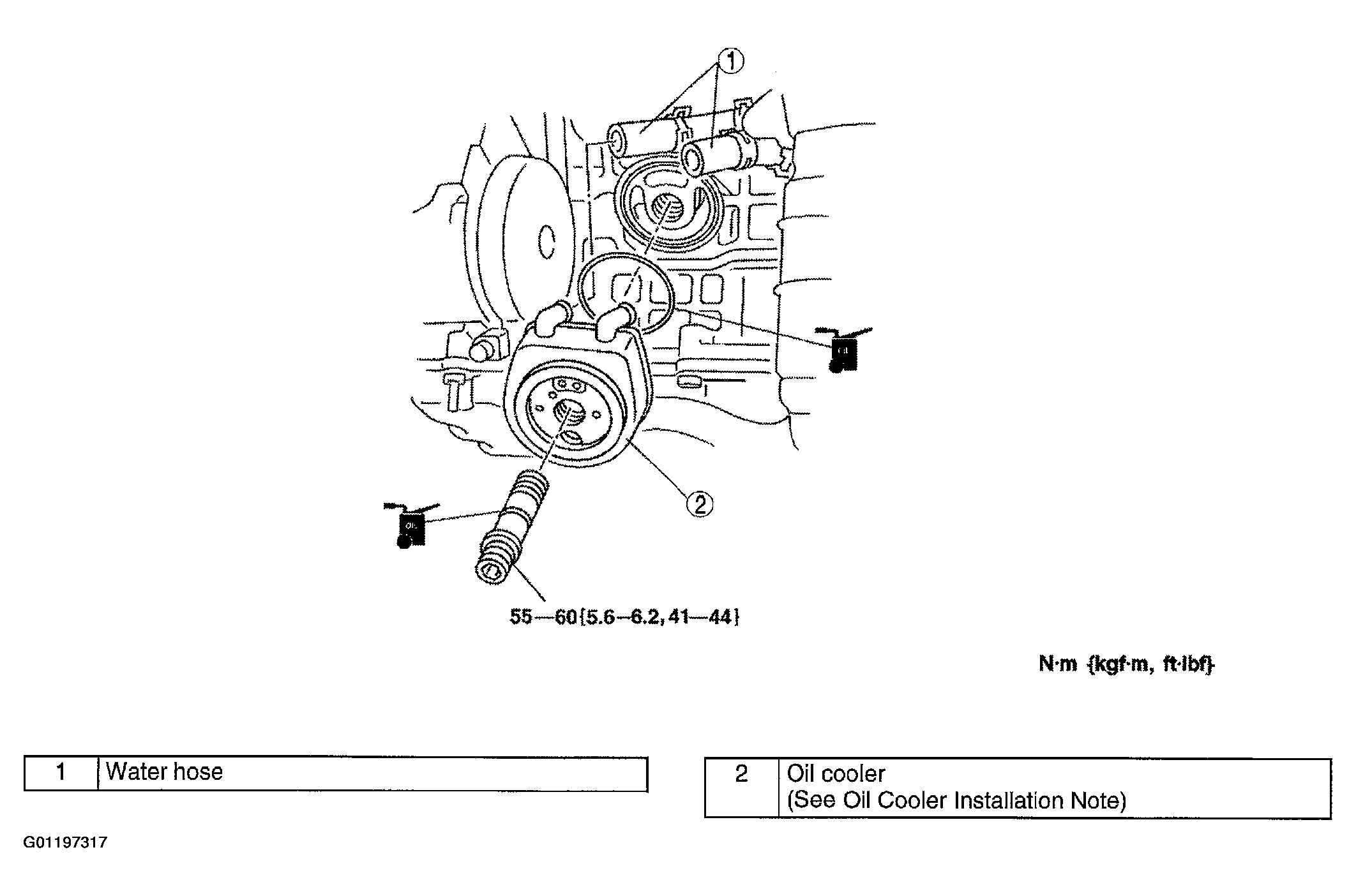

- Remove in the order indicated in the figure.
- Install in the reverse order of removal.
- Inspect the engine oil level. (See ENGINE OIL LEVEL INSPECTION .)
- Start the engine and inspect for engine oil leakage.
