Accelerator Cable Adjustment

Move the white locking tab A to the unlock position.

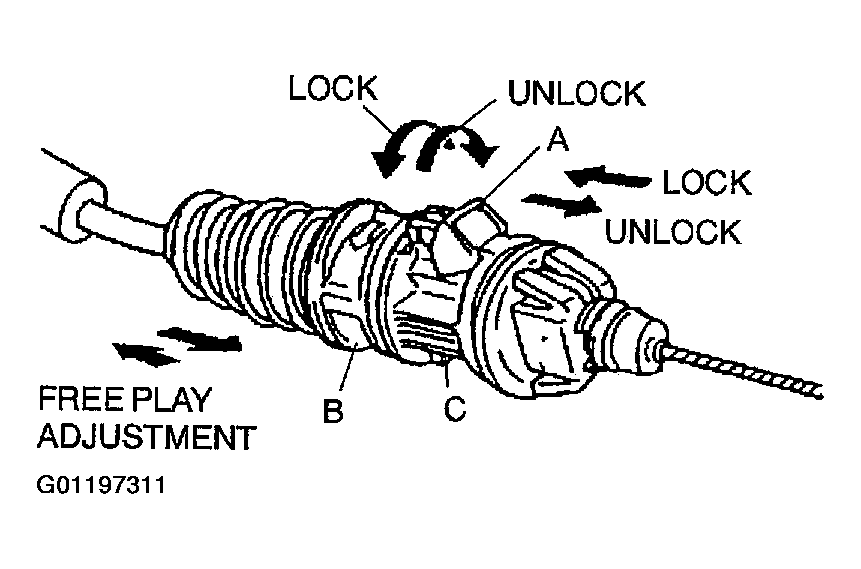

Fig 1: Adjusting Accelerator Cable
Courtesy of MAZDA MOTORS CORP.

NOTE:

If stopper B will not unlock, it may be necessary to carefully bend tab C out using a suitable tool.

Turn stopper B to the unlock position.
To adjust the free play, push or pull the throttle cable housing directly behind the spring.
Measure the throttle cable free play, making sure that it is within the specification.
Free Play
1. 1.5-4.0 mm {0.06-0.15 in}
Turn stopper B to lock position.
Move the white locking tab A to the lock position.
Verify correct accelerator operation.
